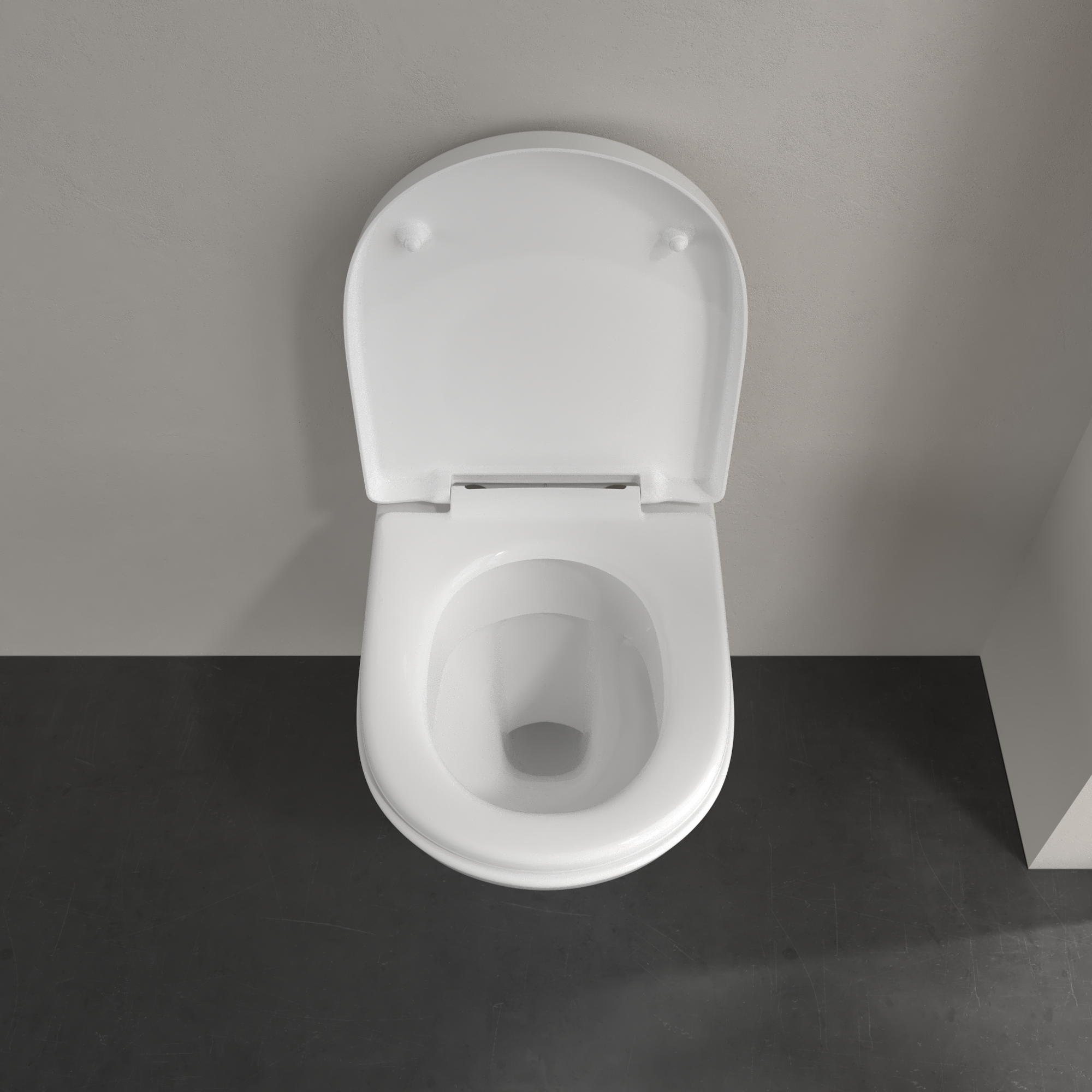

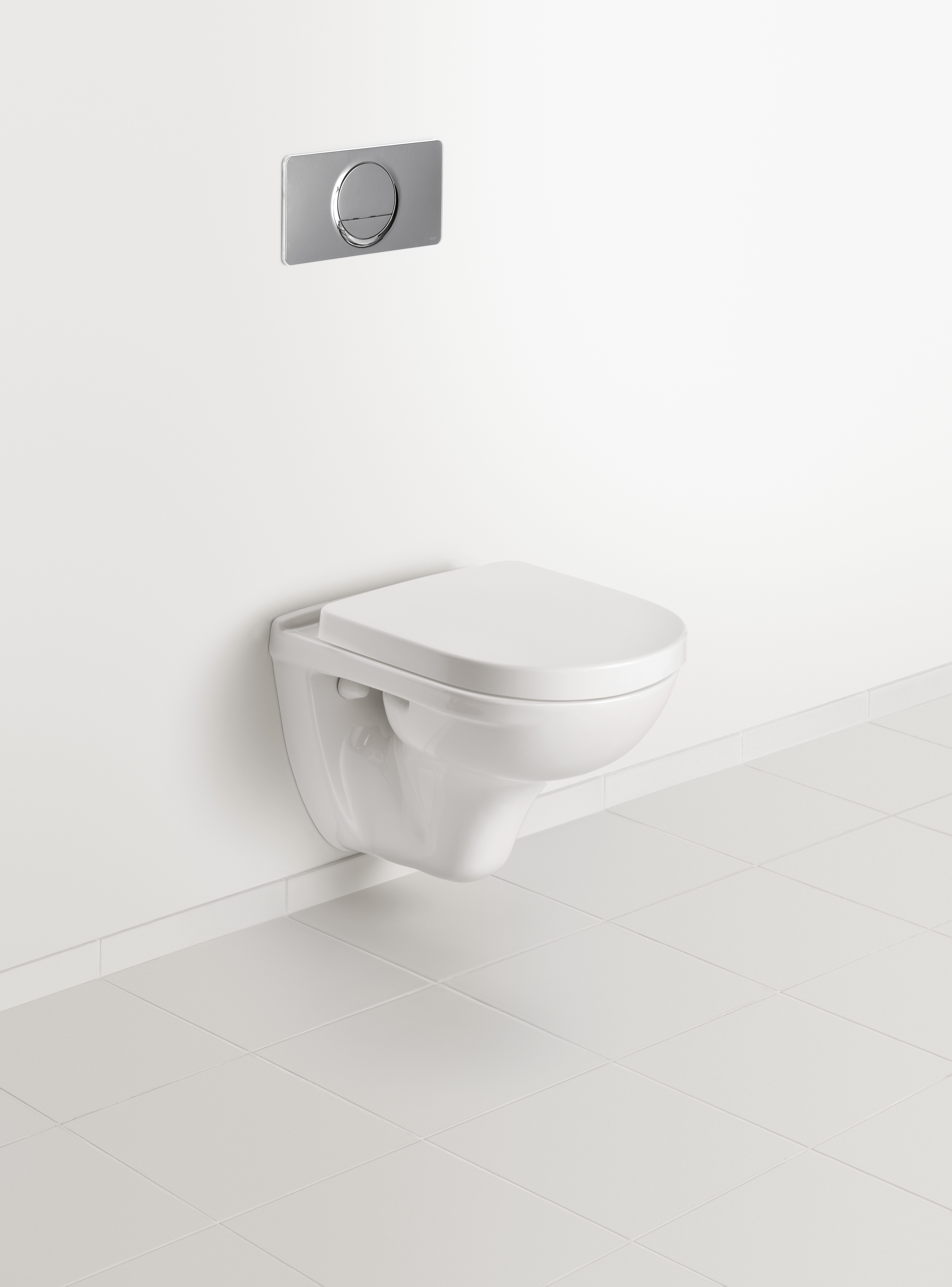

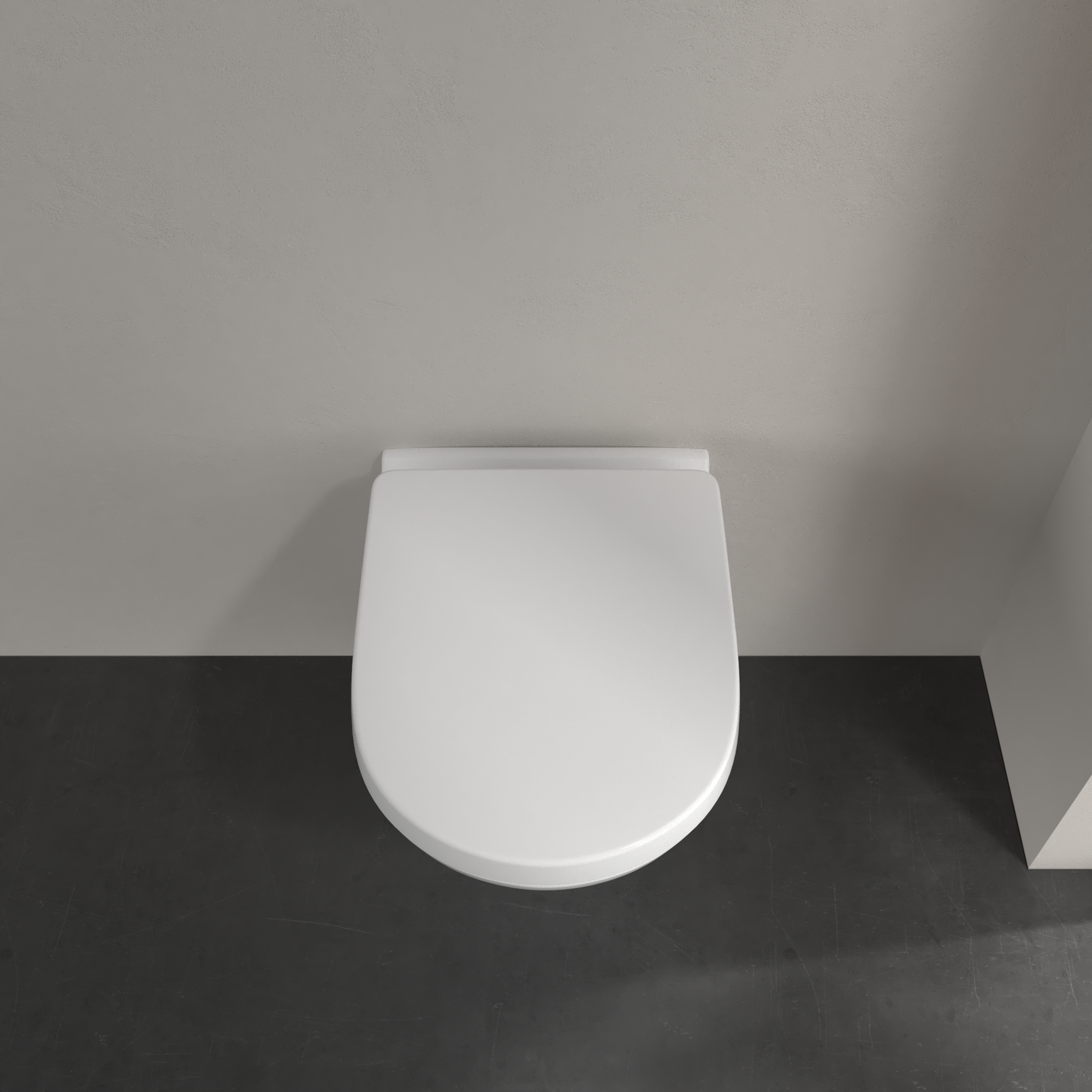

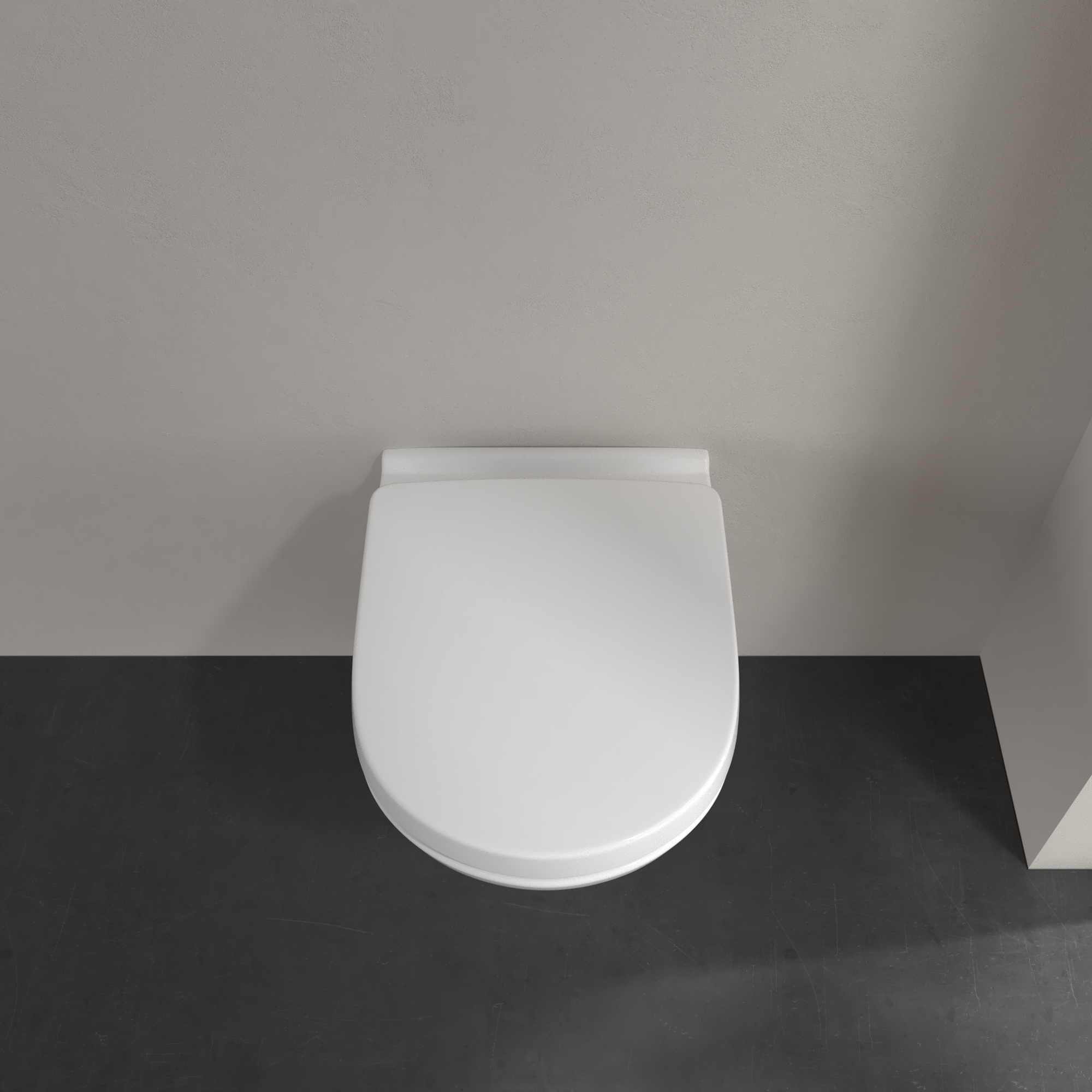

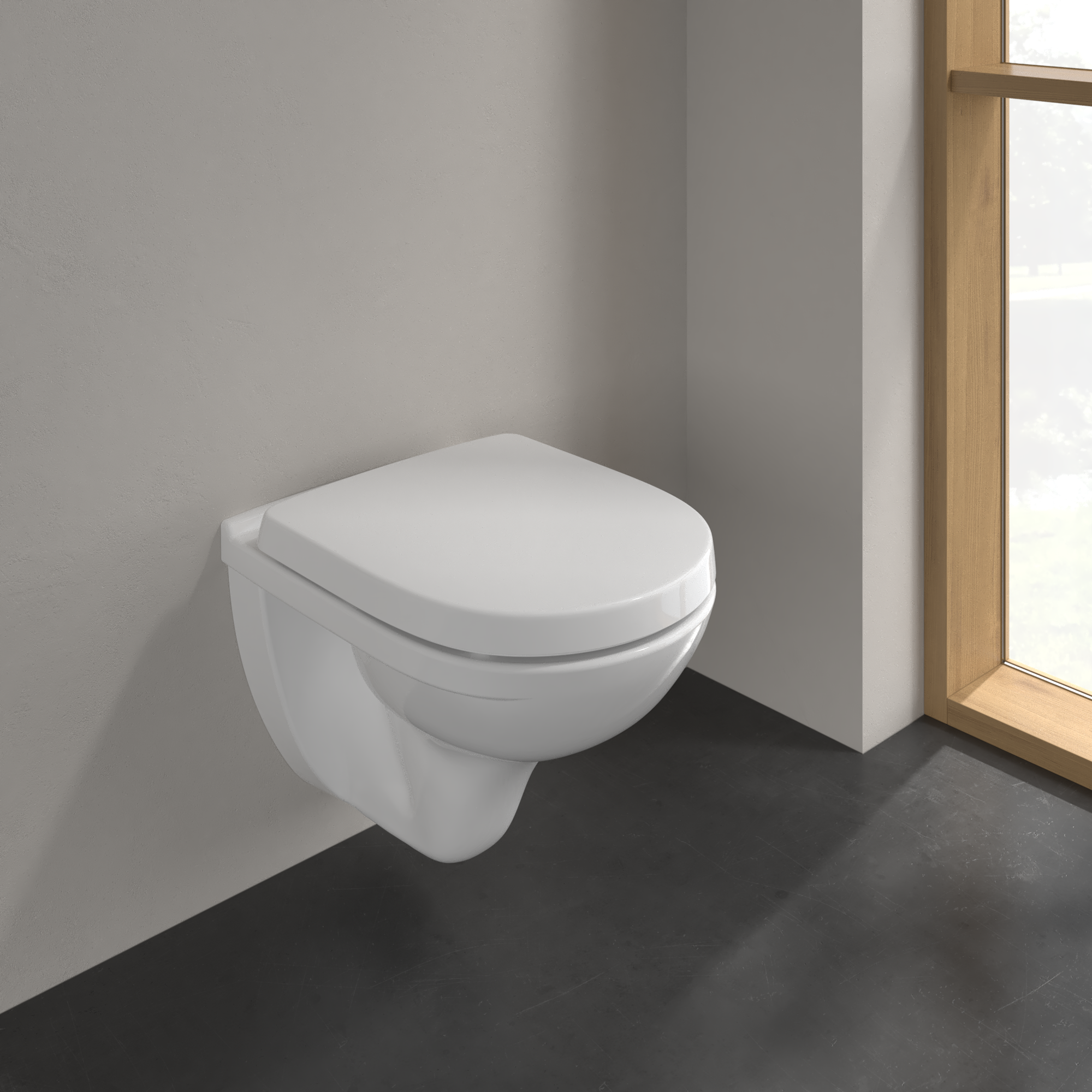

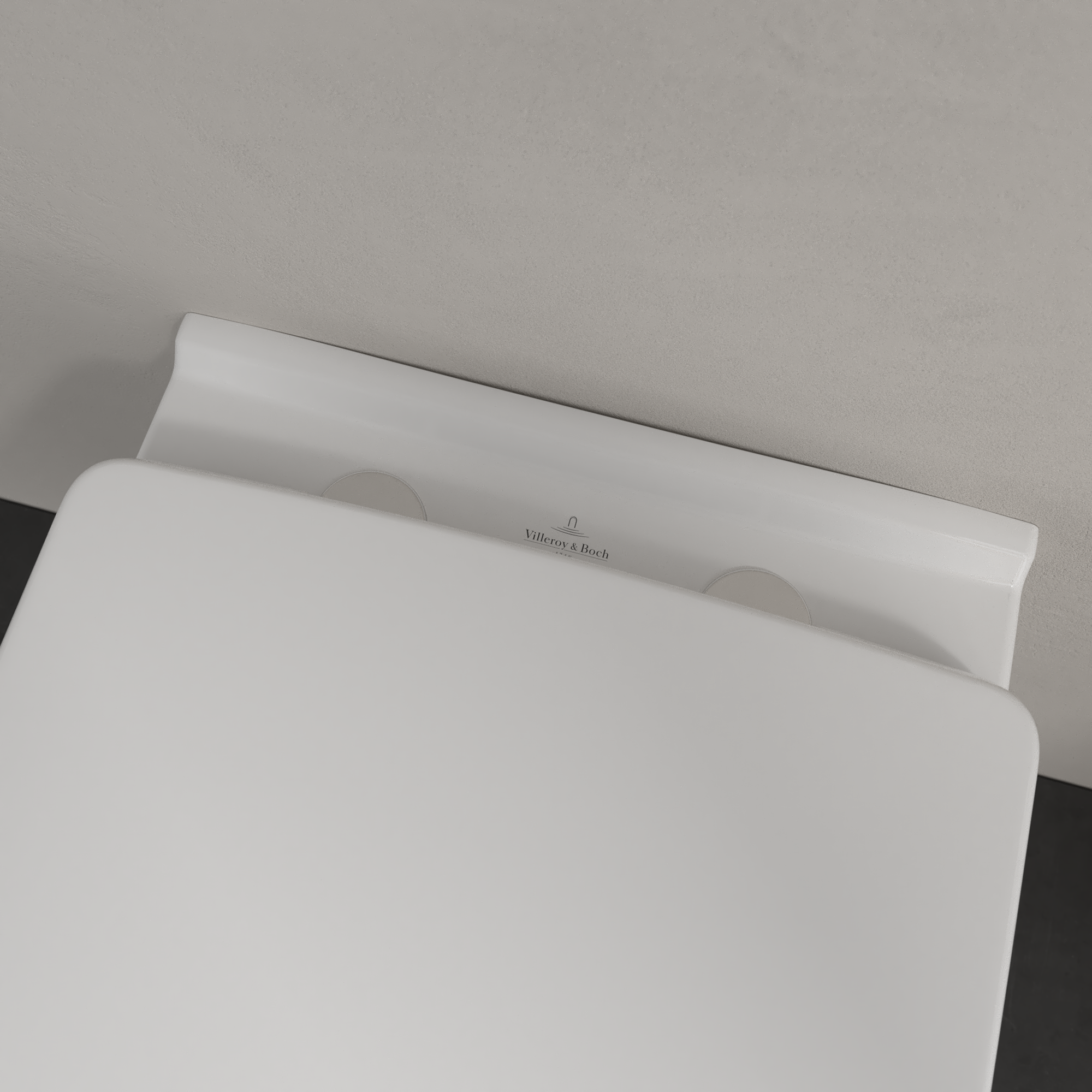

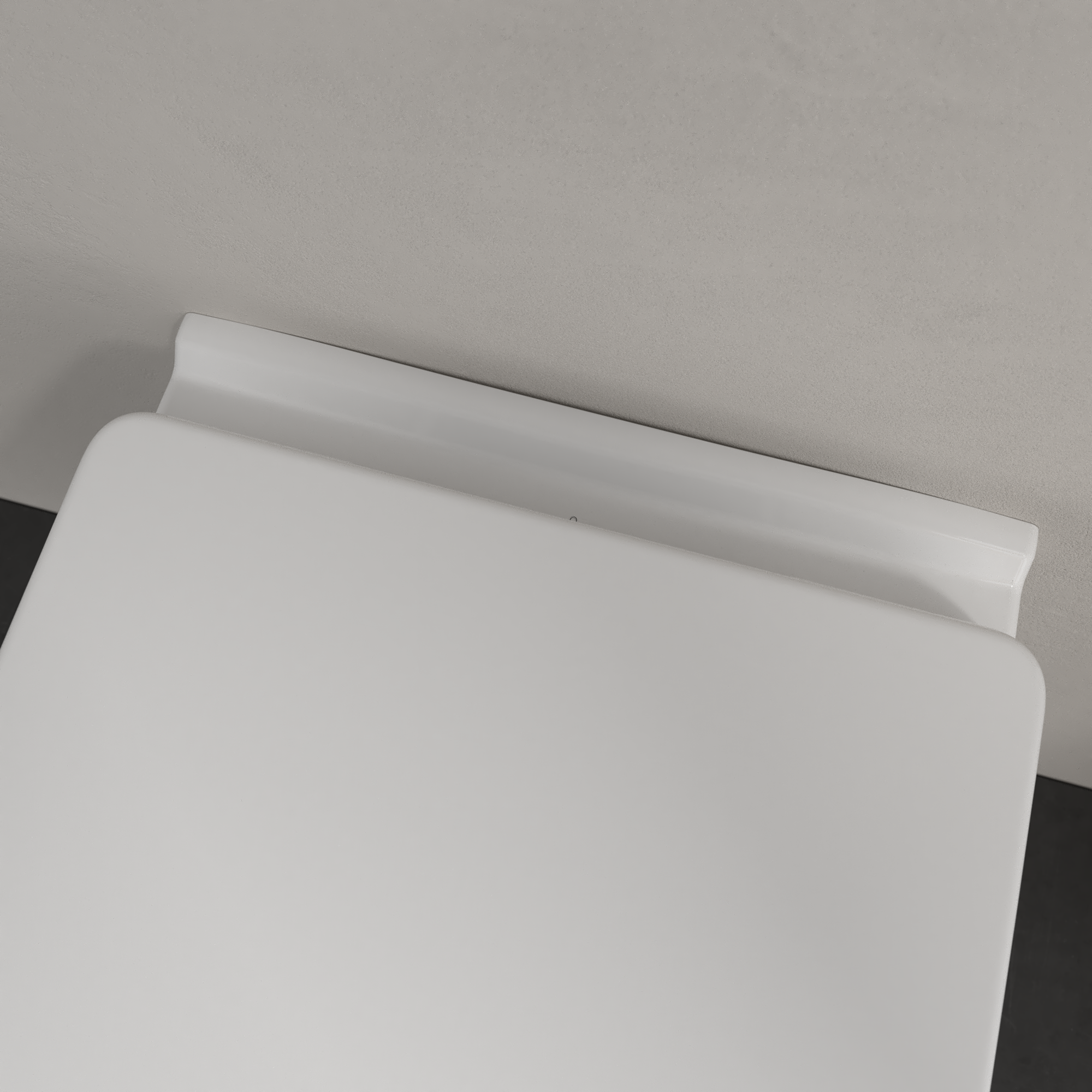

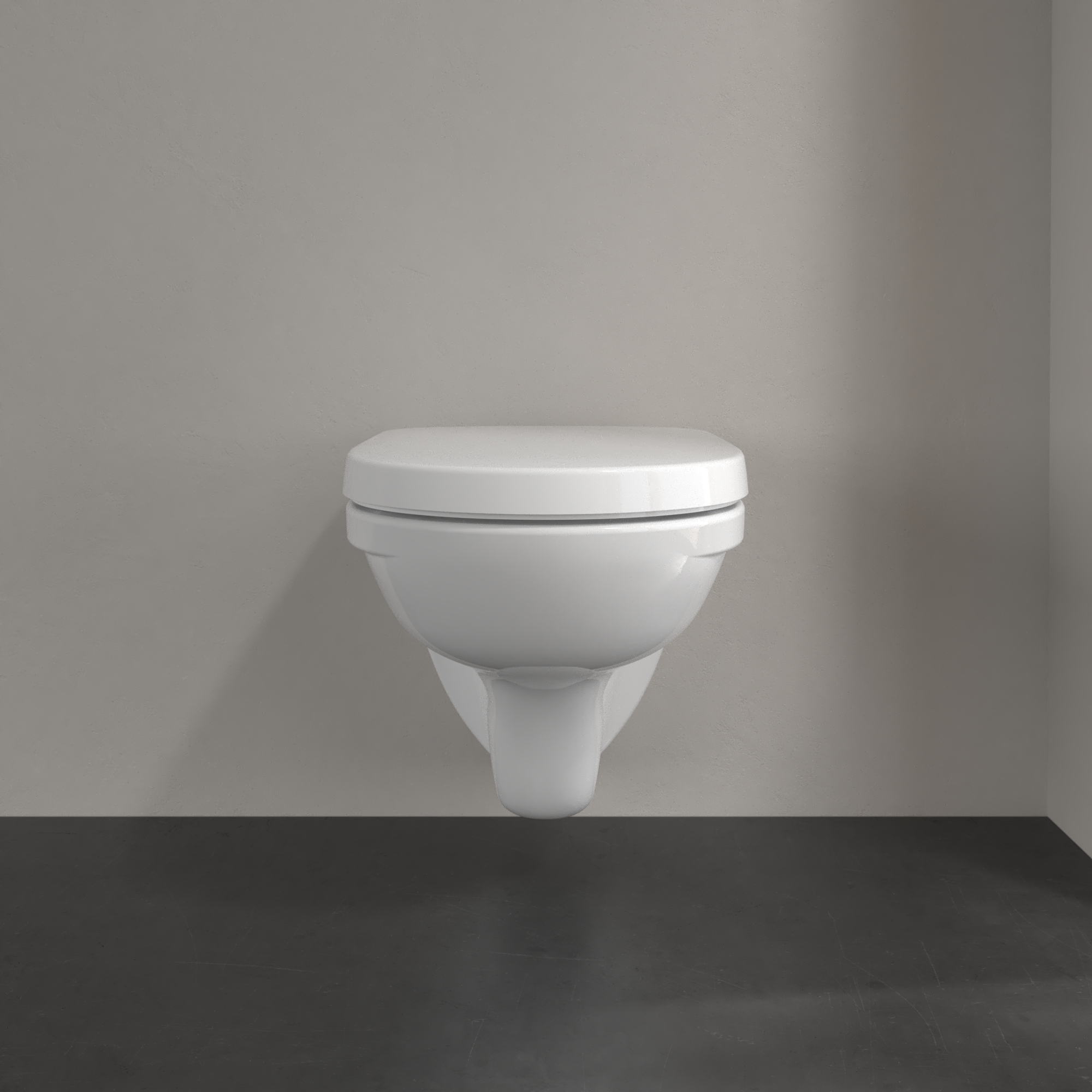

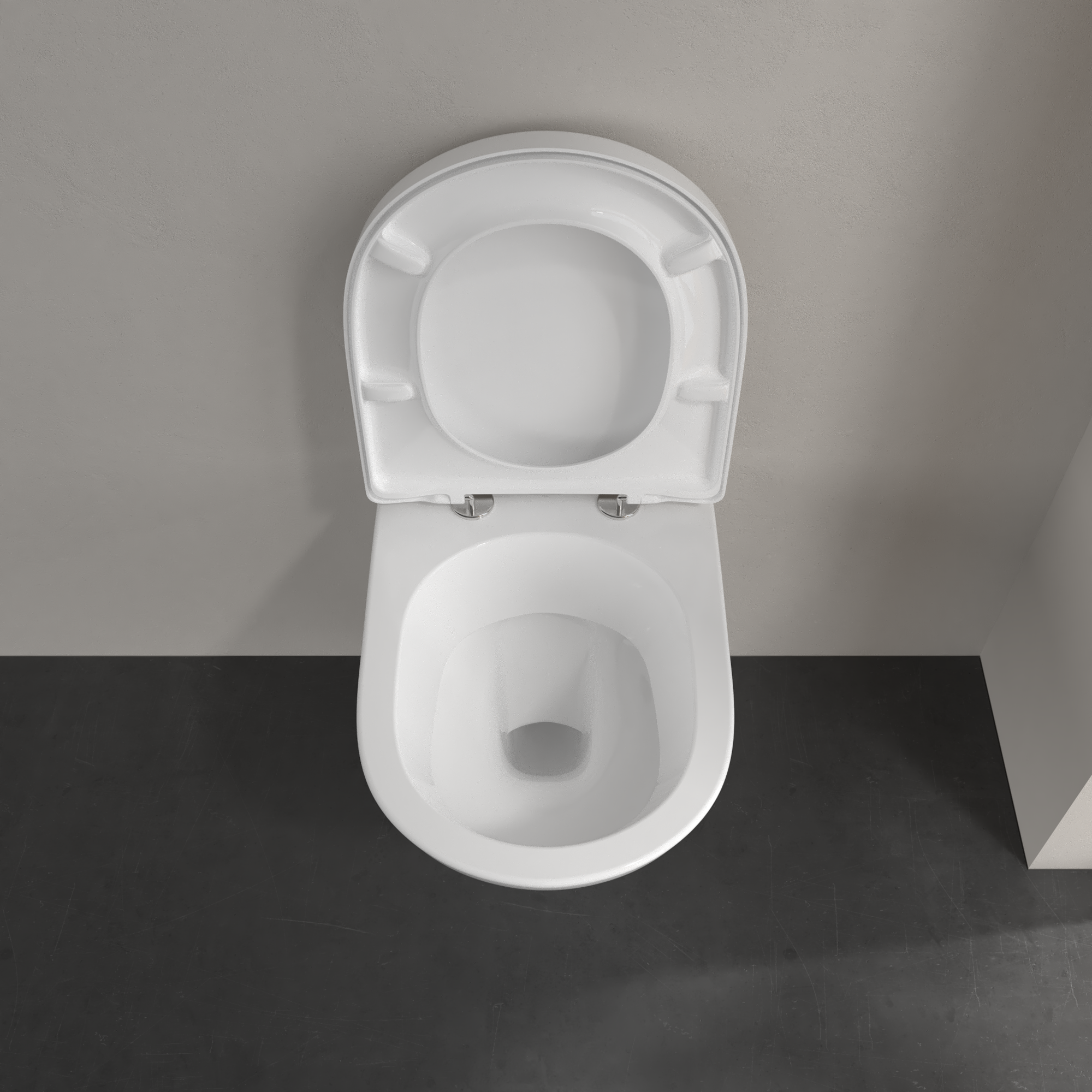

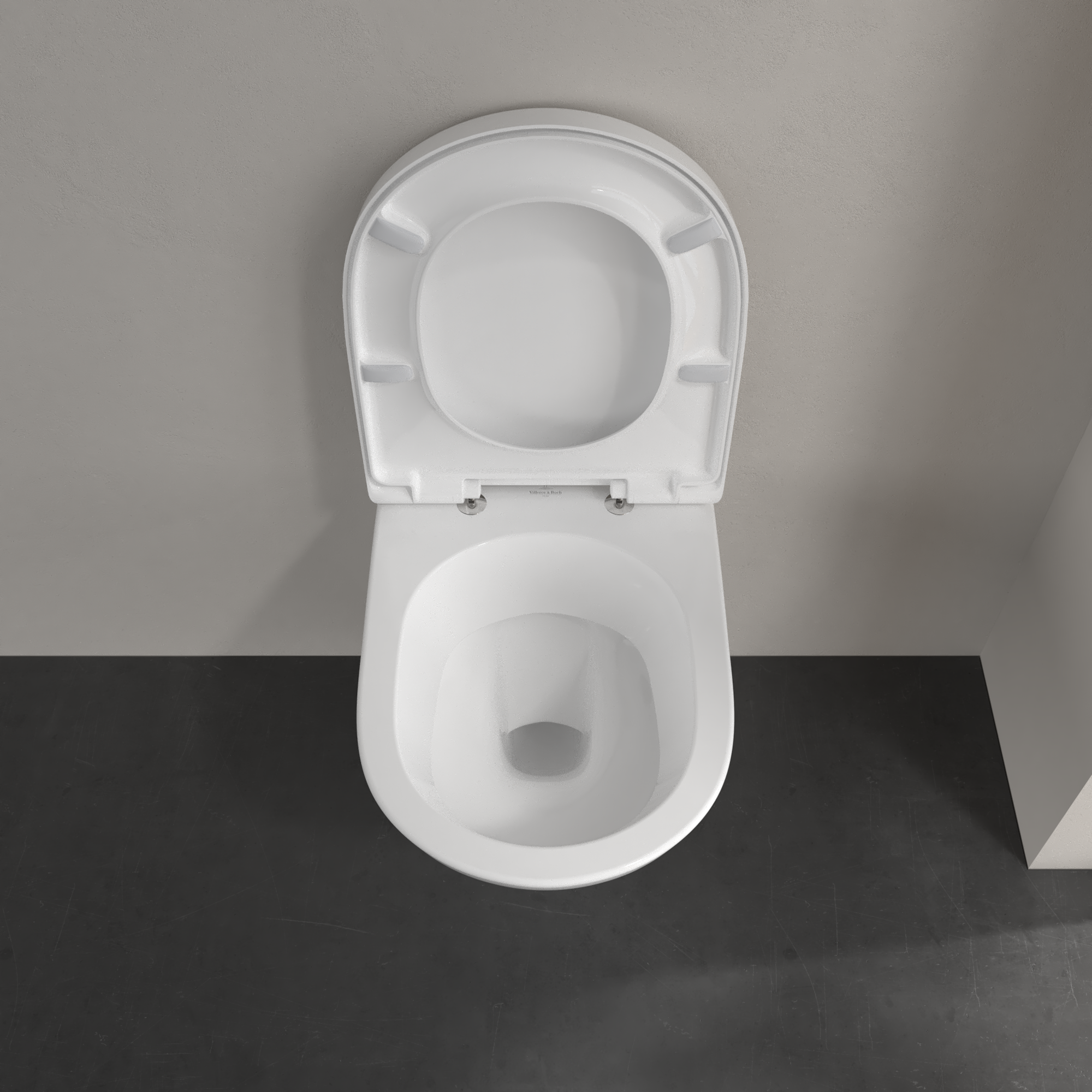

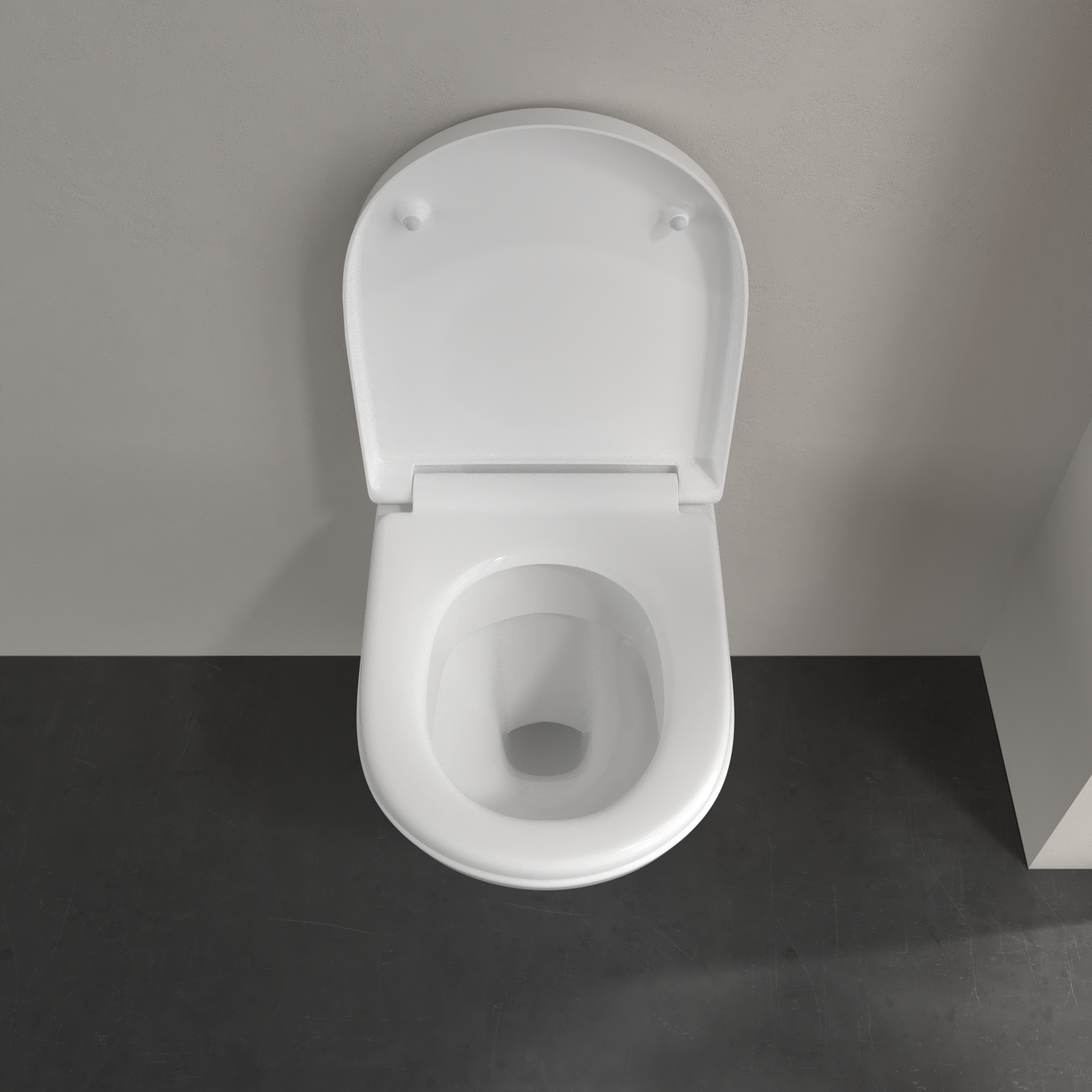

O.novo Combi-Pack, wall-mounted, White Alpin

O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
O.novo Combi-Pack, wall-mounted, White Alpin
SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

5688H101

O.novo Combi-Pack, wall-mounted, White Alpin

SIZE AND SHAPE :
Width in mm
360
Length in mm
490
Height in mm
330
Form
Oval
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
wall-mounted
Suitable for
Concealed cistern
Rimless
No
Innovative flushing technology (with TwistFlush)
No
Innovative flushing technology (with TwistFlush[e³])
No
Flush type
Washdown toilet
Flush volume l
3 - 4.5 l
Outlet / outlet
horizontal outlet
Wall-mounted - floor-standing
wall-mounted
Function
Leed
4
Material
Sanitary ceramics
Colour name
White Alpin
Other material
Toilet seat and cover: Duroplast
Other surfaces
Toilet seat and cover: glossy
Article number:

5688H101

availability:
    O.novo

    Combi-Pack

    Technical information
    back

    Technical information

    Article title

    O.novo Combi-Pack, wall-mounted, White Alpin

    Article number

    5688H101

    Assembly / Assembly type

    wall-mounted

    Scope of delivery

    1 x washdown toilet

    1 x toilet seat and cover

    Length in mm

    490

    Width in mm

    360

    Height in mm

    330

    Collection

    O.novo

    Weight in kg

    17,40

    Suitable for

    Concealed cistern

    Rimless

    No

    Innovative flushing technology (with TwistFlush)

    No

    Innovative flushing technology (with TwistFlush[e³])

    No

    Flush type

    Washdown toilet

    Flush volume l

    3 - 4.5 l

    Outlet / outlet

    horizontal outlet

    Wall-mounted - floor-standing

    wall-mounted

    Function

    • with automatic lowering mechanism (SoftClosing)

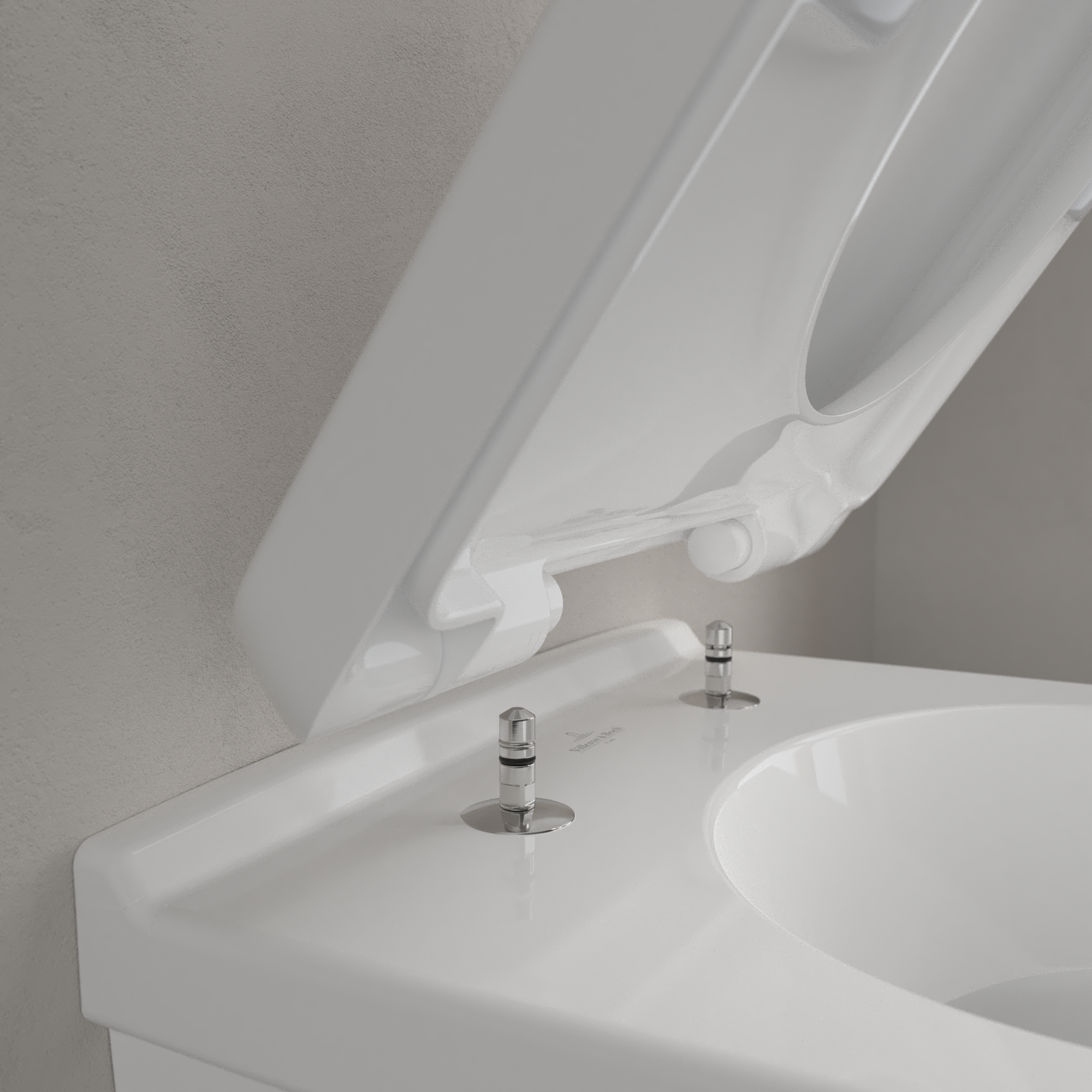

    • with removable seat (QuickRelease)

    Leed

    4

    Material

    Sanitary ceramics

    Colour name

    White Alpin

    Other material

    Toilet seat and cover: Duroplast

    Other surfaces

    Toilet seat and cover: glossy

    EAN number

    4051202219512

    Model number

    5688H1

    accessories
    back

    accessories

    Villeroy & Boch ViConnect installation systems 200G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922400RE
    Dimension 269 x 161 x 13 mm
    to product detail
    Villeroy & Boch Accessories ViProtect soundproofing set, 4x490x425mm
    Collection Accessories
    Product designation ViProtect soundproofing set
    Article number 92228700
    Dimension 4 x 490 x 425 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922160RE
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92218068
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92216168
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, Black Matt
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922169AN
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system Compact, for Dry-wall construction, 635x1120x90mm
    Collection ViConnect installation systems
    Product designation Toilet installation system Compact
    Article number 92247600
    Dimension 635 x 1120 x 90 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern with metal frame, for Brick-wall construction, 447x749x125mm
    Collection ViConnect installation systems
    Product designation Concealed cistern with metal frame
    Article number 92247900
    Dimension 447 x 749 x 125 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern with metal frame Compact, for Brick-wall construction, 650x786x80mm
    Collection ViConnect installation systems
    Product designation Concealed cistern with metal frame Compact
    Article number 92248400
    Dimension 568 x 1120 x 80 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern, for Brick-wall construction, 735x528x125mm
    Collection ViConnect installation systems
    Product designation Concealed cistern
    Article number 92248300
    Dimension 735 x 528 x 125 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern Compact, for Brick-wall construction, 648x825x80mm
    Collection ViConnect installation systems
    Product designation Concealed cistern Compact
    Article number 92248200
    Dimension 670 x 745 x 80 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 100S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92248568
    Dimension 205 x 145 x 22 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 450x1120x165mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92246500
    Dimension 450 x 1120 x 165 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 585x820x155mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92247500
    Dimension 525 x 820 x 135 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x985x155mm discontinued
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92247800
    Dimension 525 x 985 x 155 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92249068
    Dimension 253 x 145 x 10 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x1120x135mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92242700
    Dimension 525 x 1120 x 135 mm
    to product detail
    Show more
    Spareparts
    back

    Spareparts

    Villeroy & Boch O.novo Toilet seat and cover, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection O.novo
    Product designation Toilet seat and cover
    Article number 9M38S101
    Dimension 368 x 445 x 49 mm
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-O-novo-5688H1-II-v00-49211-en.pdf
    Technical drawing

    VB-O-novo-5688H1-2D01-v00-39438.pdf

    Planning information

    2-D data

    VB-O-novo-5688H1-2D01-v00-39438.dwg
    2-D data

    VB-O-novo-5688H1-2D01-v00-39438.dxf
    2-D data

    VB-O-novo-5688H1-2D01-v00-39438.eps
    BIM data

    Item documentation

    Exploded-view drawing

    VB-O-novo-5688H1-EXPL-v00-50099.pdf
    Declaration of Performance (DOP)

    VB-S-YTD-C113-0001-v18-57461.pdf
    Declaration of Performance (DOP)

    VB-S-YTD-C113-0001-v19-57461.pdf
