View

Washdown toilet

O.novo

SPECIFICATION TEXTS

56571001

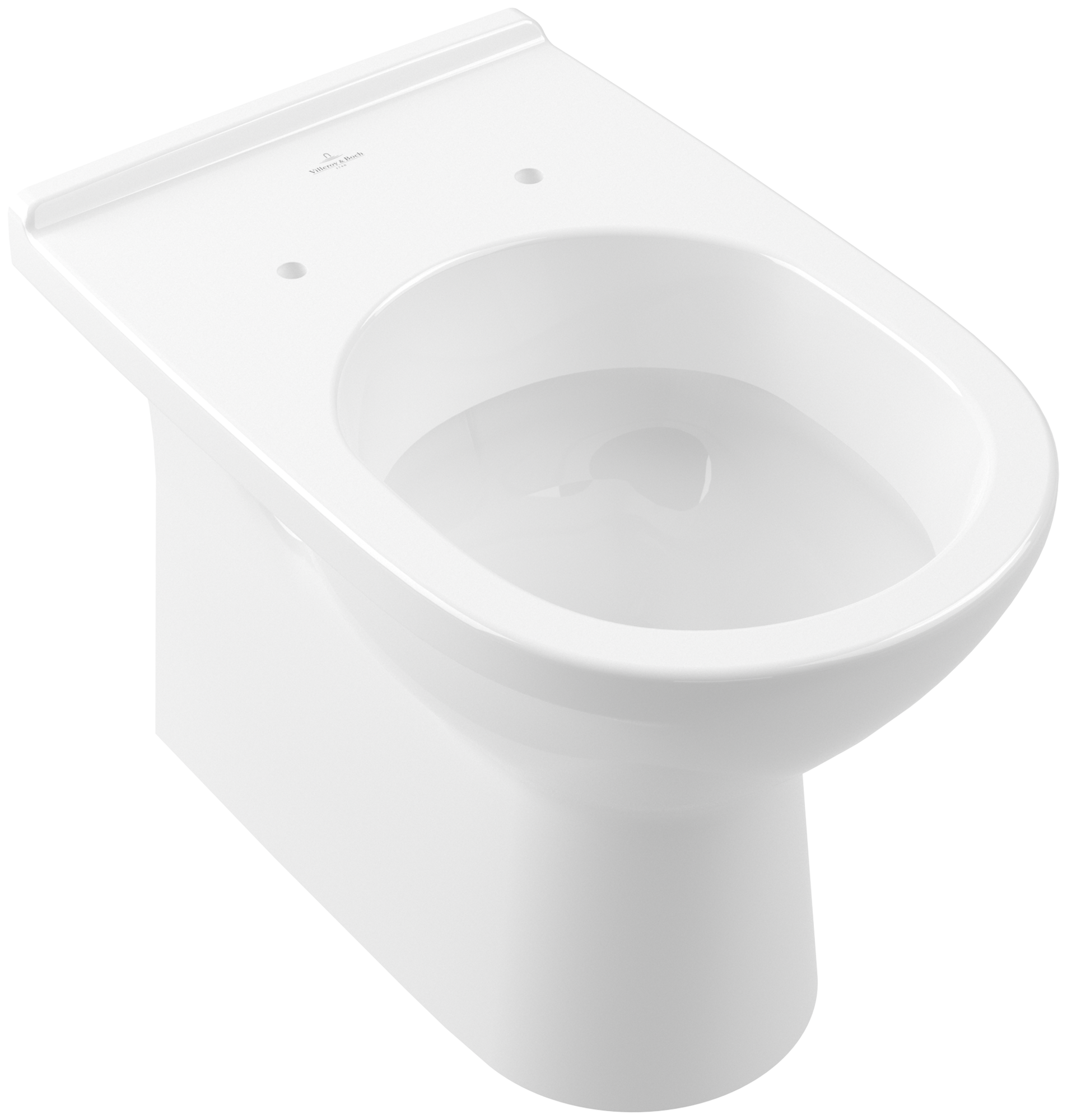

O.novo Washdown toilet, floor-standing, White Alpin

SIZE AND SHAPE :
Width in mm
360
Length in mm
560
Height in mm
400
Form
Oval
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
floor-standing back to wall
Suitable for
Concealed cistern
Rimless
No
Innovative flushing technology (with TwistFlush)
No
Innovative flushing technology (with TwistFlush[e³])
No
Flush type
Washdown toilet
Flush volume l
3 - 4.5 l
Outlet / outlet
horizontal outlet
Wall-mounted - floor-standing
floor-standing
Leed
4
Material
Sanitary ceramics
Colour name
White Alpin
Article number:

56571001

availability:

    O.novo

    Washdown toilet

    Technical information
    back

    Technical information

    Article title

    O.novo Washdown toilet, floor-standing, White Alpin

    Article number

    56571001

    Assembly / Assembly type

    floor-standing

    back to wall

    Scope of delivery

    1 x washdown toilet

    1 x fastening set

    Ordering information

    Please order toilet seat separately.

    Length in mm

    560

    Width in mm

    360

    Height in mm

    400

    Collection

    O.novo

    Weight in kg

    21,80

    Suitable for

    Concealed cistern

    Rimless

    No

    Innovative flushing technology (with TwistFlush)

    No

    Innovative flushing technology (with TwistFlush[e³])

    No

    Flush type

    Washdown toilet

    Flush volume l

    3 - 4.5 l

    Outlet / outlet

    horizontal outlet

    Wall-mounted - floor-standing

    floor-standing

    Leed

    4

    Material

    Sanitary ceramics

    Colour name

    White Alpin

    EAN number

    4051202033415

    Model number

    565710

    accessories
    back

    accessories

    Villeroy & Boch ViConnect installation systems Concealed cistern, for Brick-wall construction, 735x528x125mm
    Collection ViConnect installation systems
    Product designation Concealed cistern
    Article number 92248300
    Dimension 735 x 528 x 125 mm
    Villeroy & Boch ViConnect installation systems Concealed cistern Compact, for Brick-wall construction, 648x825x80mm
    Collection ViConnect installation systems
    Product designation Concealed cistern Compact
    Article number 92248200
    Dimension 670 x 745 x 80 mm
    Villeroy & Boch ViConnect installation systems 100S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92248568
    Dimension 205 x 145 x 22 mm
    Villeroy & Boch ViConnect installation systems 200S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92249068
    Dimension 253 x 145 x 10 mm
    Suitable products
    back

    Suitable products

    Villeroy & Boch ViCare previously O.novo Vita Toilet seat and cover ViCare, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin AntiBac
    Collection ViCare
    Product designation Toilet seat and cover ViCare
    Article number 9M67S1T1
    Dimension 369 x 459 x 49 mm
    Villeroy & Boch O.novo Toilet seat and cover, White Alpin
    Collection O.novo
    Product designation Toilet seat and cover
    Article number 9M396101
    Dimension 368 x 423 x 51 mm
    Villeroy & Boch O.novo Toilet seat and cover, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection O.novo
    Product designation Toilet seat and cover
    Article number 9M38S101
    Dimension 368 x 445 x 49 mm
    Villeroy & Boch ViCare previously O.novo Vita Seat, White Alpin
    Collection ViCare
    Product designation Seat
    Article number 9M716101
    Dimension 354 x 438 x 42 mm
    Spareparts
    back

    Spareparts

    Villeroy & Boch Spare parts Fastening set, 132x179mm, White Alpin
    Product designation Fastening set
    Article number 92223601
