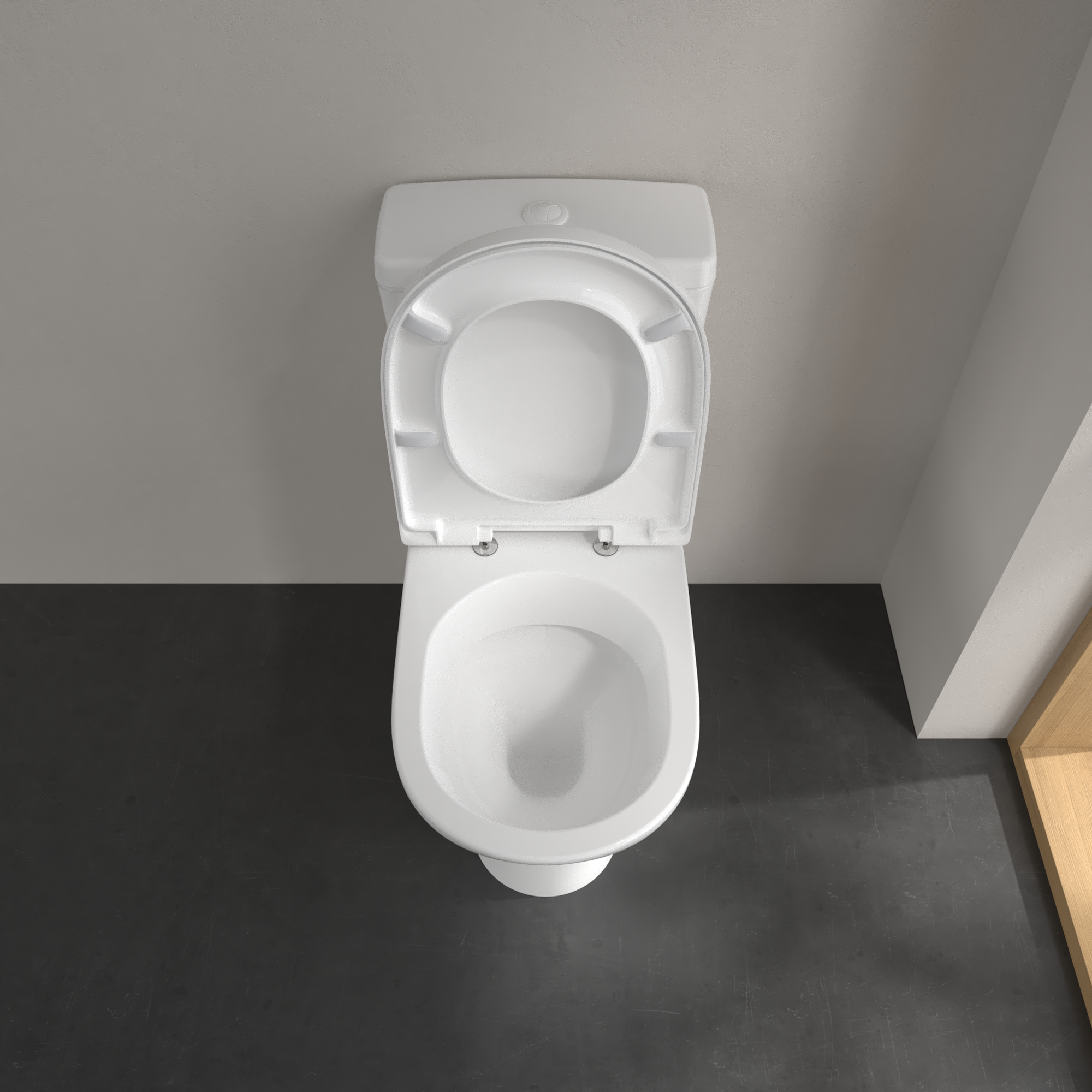

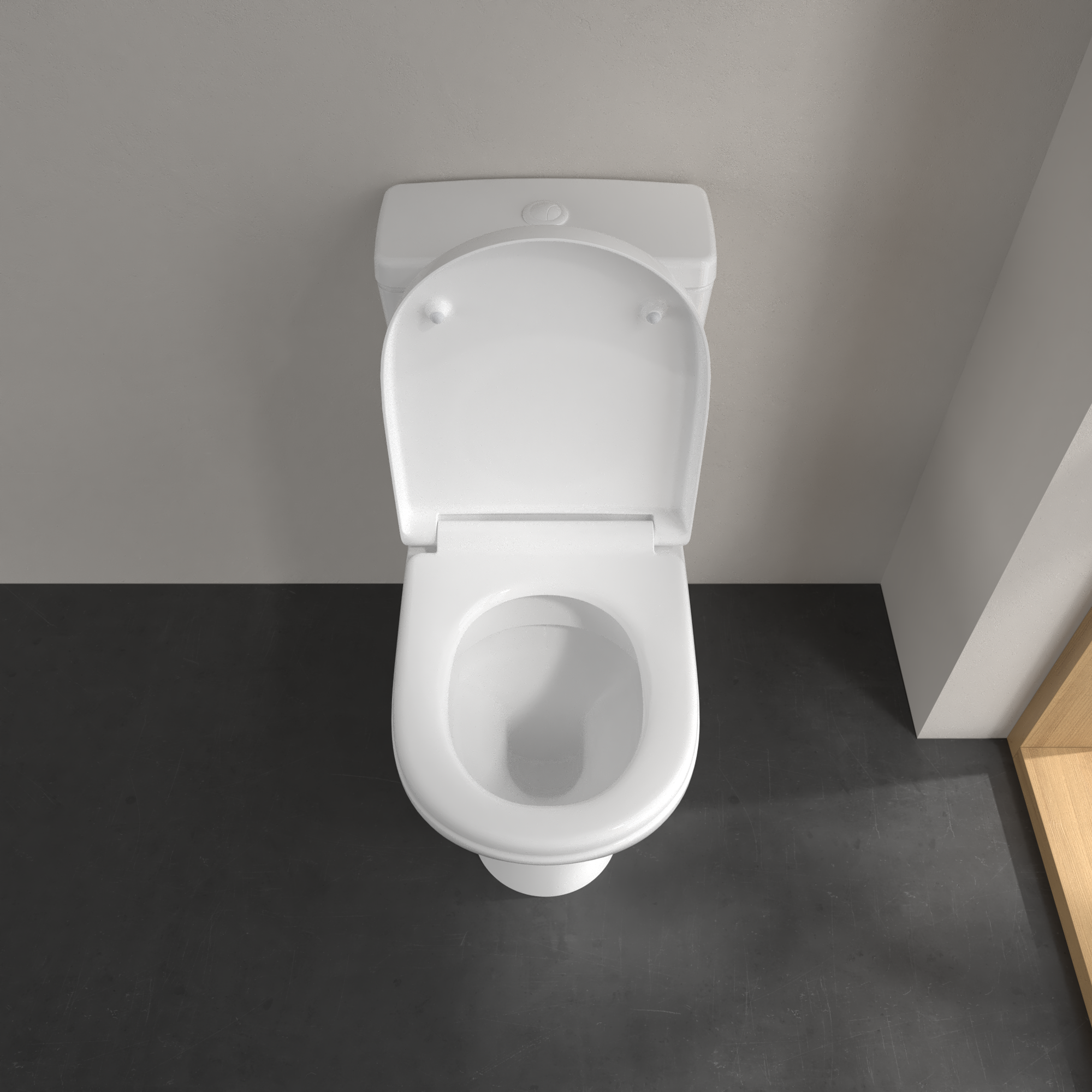

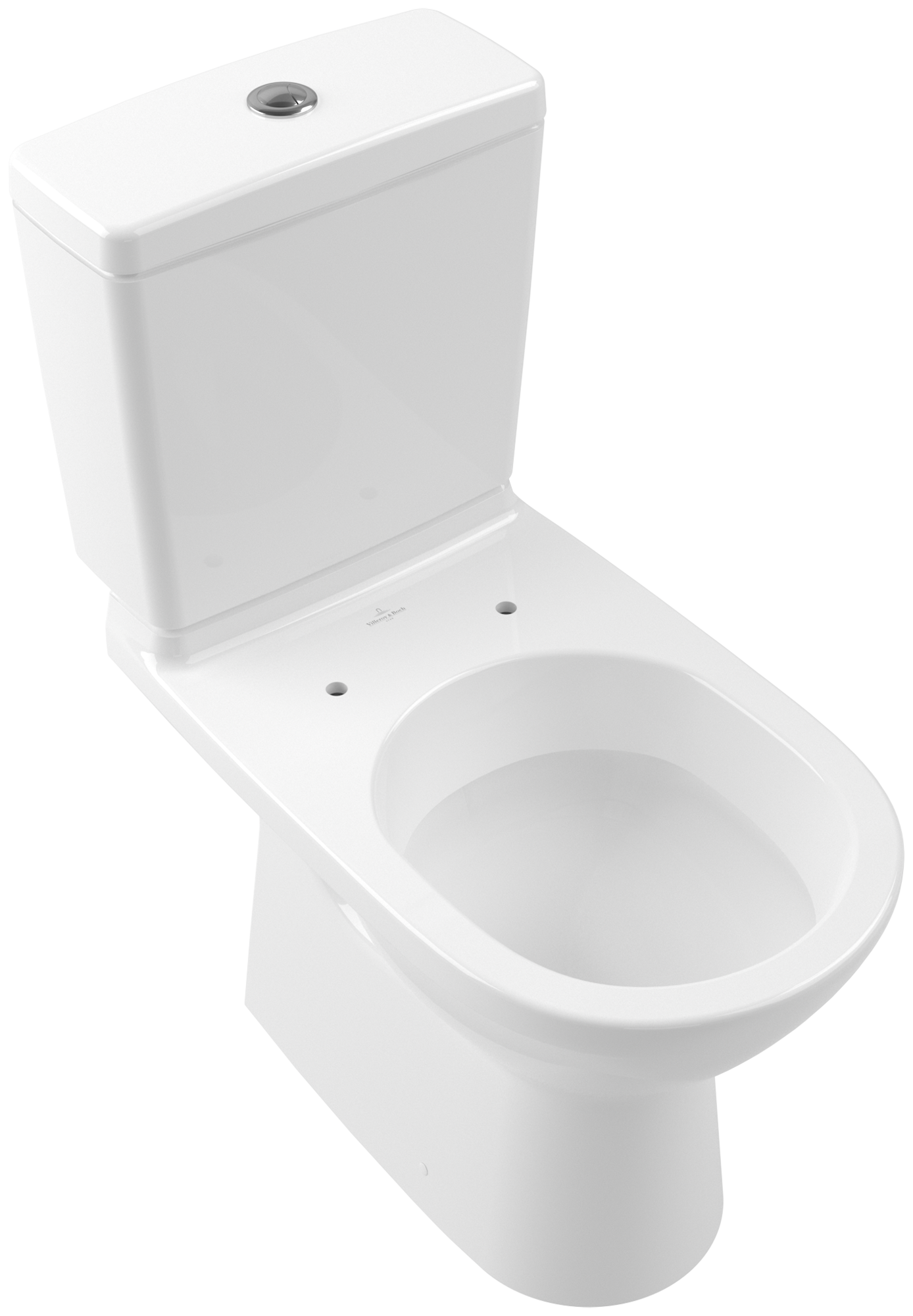

O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin

O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin
View

Washdown toilet for close-coupled WC-suite

O.novo

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

56610101

O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin

SIZE AND SHAPE :
Width in mm
360
Length in mm
650
Height in mm
400
Form
Oval
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
floor-standing
Suitable for
Mounted cistern
Rimless
No
Innovative flushing technology (with TwistFlush)
No
Innovative flushing technology (with TwistFlush[e³])
No
Flush type
Washdown toilet
Flush volume l
3 - 4.5 l
Outlet / outlet
vertical outlet
Wall-mounted - floor-standing
floor-standing
Leed
4
Material
Sanitary ceramics
Colour name
White Alpin
Article number:

56610101

availability:
    O.novo

    Washdown toilet for close-coupled WC-suite

    Technical information
    back

    Technical information

    Article title

    O.novo Washdown toilet for close-coupled WC-suite, floor-standing, White Alpin

    Article number

    56610101

    Assembly / Assembly type

    floor-standing

    Scope of delivery

    1 x washdown toilet

    1 x fastening set

    Ordering information

    Please order cistern separately.

    Length in mm

    650

    Width in mm

    360

    Height in mm

    400

    Collection

    O.novo

    Weight in kg

    22,30

    Suitable for

    Mounted cistern

    Rimless

    No

    Innovative flushing technology (with TwistFlush)

    No

    Innovative flushing technology (with TwistFlush[e³])

    No

    Flush type

    Washdown toilet

    Flush volume l

    3 - 4.5 l

    Outlet / outlet

    vertical outlet

    Wall-mounted - floor-standing

    floor-standing

    Leed

    4

    Material

    Sanitary ceramics

    Colour name

    White Alpin

    EAN number

    4051202033439

    Model number

    566101

    accessories
    back

    accessories

    Villeroy & Boch O.novo Cistern, water inlet from the sides, reversible, White Alpin
    Collection O.novo
    Product designation Cistern
    Article number 57602101
    Dimension 385 x 165 x 360 mm
    to product detail

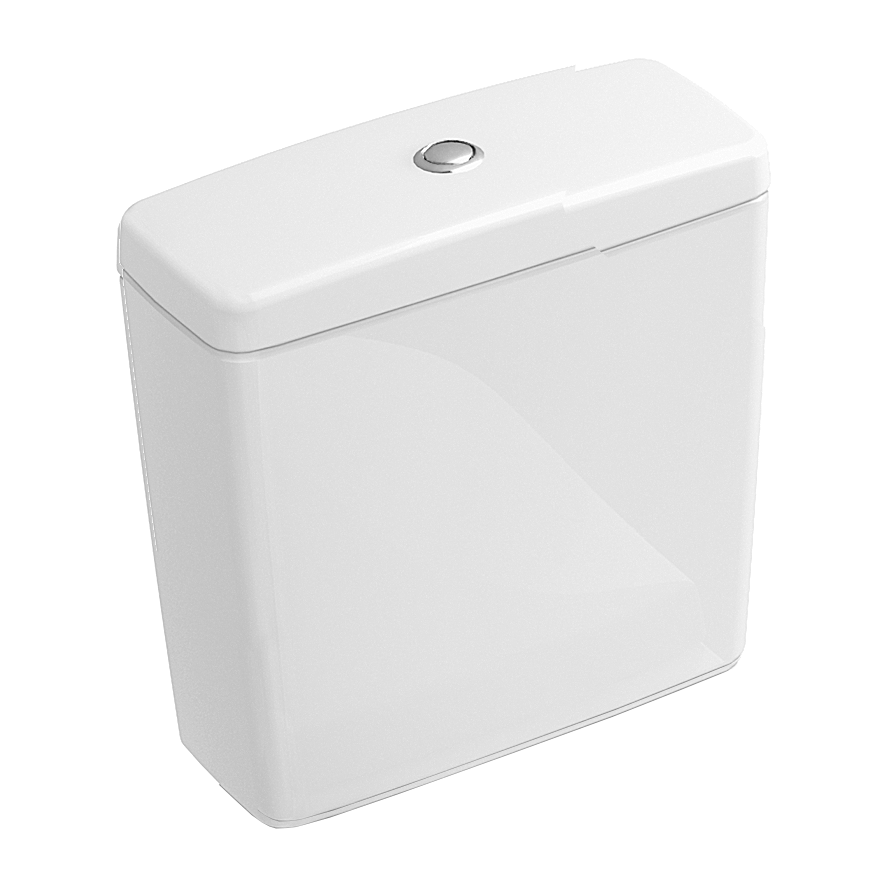

    Villeroy & Boch O.novo Cistern, water inlet from the sides or rear, White Alpin
    Collection O.novo
    Product designation Cistern
    Article number 5760G101
    Dimension 385 x 165 x 360 mm
    to product detail
    Villeroy & Boch O.novo Cistern, bottom water inlet, White Alpin
    Collection O.novo
    Product designation Cistern
    Article number 5760R101
    Dimension 385 x 165 x 360 mm
    to product detail
    Villeroy & Boch O.novo Cistern, water inlet from the sides, reversible, White Alpin
    Collection O.novo
    Product designation Cistern
    Article number 5760S101
    Dimension 385 x 165 x 360 mm
    to product detail
    Show more
    Suitable products
    back

    Suitable products

    Villeroy & Boch O.novo Toilet seat and cover, White Alpin
    Collection O.novo
    Product designation Toilet seat and cover
    Article number 9M396101
    Dimension 368 x 423 x 51 mm
    to product detail
    Villeroy & Boch O.novo Toilet seat and cover, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection O.novo
    Product designation Toilet seat and cover
    Article number 9M38S101
    Dimension 368 x 445 x 49 mm
    to product detail
    Villeroy & Boch ViCare previously O.novo Vita Seat, White Alpin
    Collection ViCare
    Product designation Seat
    Article number 9M716101
    Dimension 354 x 438 x 42 mm
    to product detail
    Spareparts
    back

    Spareparts

    Villeroy & Boch Spare parts Fastening set, 132x179mm, White Alpin
    Product designation Fastening set
    Article number 92223601
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-O-novo-566101-II-v03-43636-en.pdf
    Technical drawing

    VB-O-novo-566101-2D01-v00-39409.pdf

    Planning information

    2-D data

    VB-O-novo-566101-2D01-v00-39409.dwg
    2-D data

    VB-O-novo-566101-2D01-v00-39409.dxf
    2-D data

    VB-O-novo-566101-2D01-v00-39409.eps
    3-D data

    VB-O-novo-566101-3D01-v00-42794.stp
    BIM data

    Item documentation

    Exploded-view drawing

    VB-O-novo-566101-EXPL-v00-52596.pdf
    Declaration of Performance (DOP)

    VB-S-YTD-C413-0001-v04-57462.pdf
