Washdown toilet Compact, rimless

Subway 2.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

5606R001

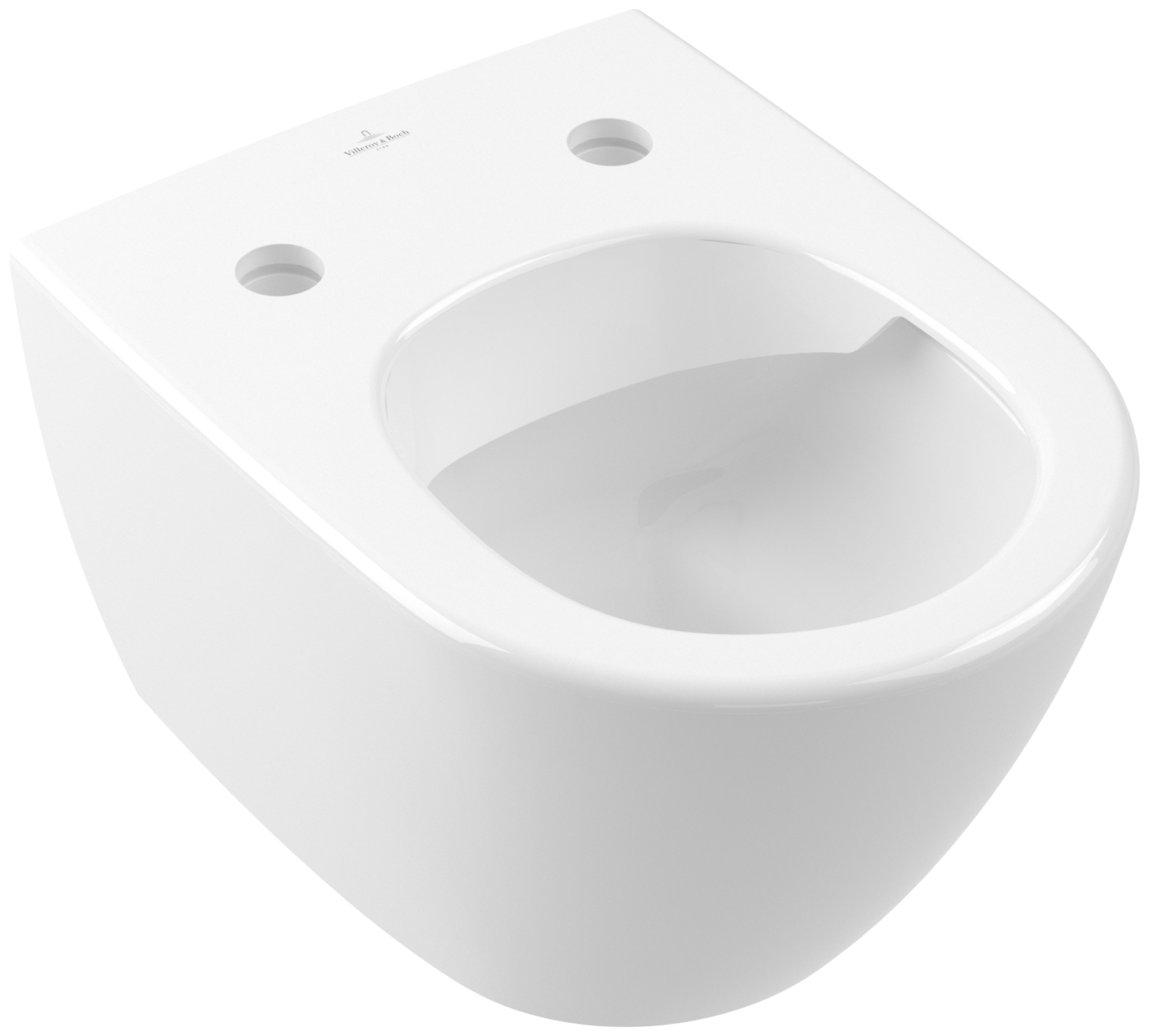

Subway 2.0 DirectFlush Washdown toilet Compact, rimless, wall-mounted, with DirectFlush, White Alpin

SIZE AND SHAPE :
Width in mm
355
Length in mm
480
Height in mm
360
Form
Oval
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
wall-mounted
Assembly instructions
not suitable for installation with flush valves
Suitable for
Concealed cistern
Rimless
Yes
Innovative flushing technology (with TwistFlush)
No
Innovative flushing technology (with TwistFlush[e³])
No
Flush type
Washdown toilet
Flush volume l
3 - 4.5 l
Outlet / outlet
horizontal outlet
Wall-mounted - floor-standing
wall-mounted
Leed
4
Material
Sanitary ceramics
Colour name
White Alpin
Article number:

5606R001

availability:
    Subway 2.0

    Washdown toilet Compact, rimless

    Technical information
    back

    Technical information

    Article title

    Subway 2.0 DirectFlush Washdown toilet Compact, rimless, wall-mounted, with DirectFlush, White Alpin

    Article number

    5606R001

    Assembly / Assembly type

    wall-mounted

    Assembly instructions

    not suitable for installation with flush valves

    Scope of delivery

    1 x washdown toilet, rimless

    1 x fastening set

    Ordering information

    Please order toilet seat separately.

    Length in mm

    480

    Width in mm

    355

    Height in mm

    360

    Collection

    Subway 2.0

    Weight in kg

    21,90

    Suitable for

    Concealed cistern

    Rimless

    Yes

    Innovative flushing technology (with TwistFlush)

    No

    Innovative flushing technology (with TwistFlush[e³])

    No

    Flush type

    Washdown toilet

    Flush volume l

    3 - 4.5 l

    Outlet / outlet

    horizontal outlet

    Wall-mounted - floor-standing

    wall-mounted

    Leed

    4

    Material

    Sanitary ceramics

    Colour name

    White Alpin

    EAN number

    4051202346171

    Model number

    5606R0

    accessories
    back

    accessories

    Villeroy & Boch ViConnect installation systems 200G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922400RE
    Dimension 269 x 161 x 13 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922160RE
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92218068
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92216168
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, Black Matt
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922169AN
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system Compact, for Dry-wall construction, 635x1120x90mm
    Collection ViConnect installation systems
    Product designation Toilet installation system Compact
    Article number 92247600
    Dimension 635 x 1120 x 90 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern with metal frame, for Brick-wall construction, 447x749x125mm
    Collection ViConnect installation systems
    Product designation Concealed cistern with metal frame
    Article number 92247900
    Dimension 447 x 749 x 125 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern with metal frame Compact, for Brick-wall construction, 650x786x80mm
    Collection ViConnect installation systems
    Product designation Concealed cistern with metal frame Compact
    Article number 92248400
    Dimension 568 x 1120 x 80 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern, for Brick-wall construction, 735x528x125mm
    Collection ViConnect installation systems
    Product designation Concealed cistern
    Article number 92248300
    Dimension 735 x 528 x 125 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Concealed cistern Compact, for Brick-wall construction, 648x825x80mm
    Collection ViConnect installation systems
    Product designation Concealed cistern Compact
    Article number 92248200
    Dimension 670 x 745 x 80 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 100S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92248568
    Dimension 205 x 145 x 22 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 450x1120x165mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92246500
    Dimension 450 x 1120 x 165 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 585x820x155mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92247500
    Dimension 525 x 820 x 135 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x985x155mm discontinued
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92247800
    Dimension 525 x 985 x 155 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92249068
    Dimension 253 x 145 x 10 mm
    to product detail
    Villeroy & Boch ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x1120x135mm
    Collection ViConnect installation systems
    Product designation Toilet installation system
    Article number 92242700
    Dimension 525 x 1120 x 135 mm
    to product detail
    Show more
    Suitable products
    back

    Suitable products

    Villeroy & Boch Subway 2.0 Toilet seat and cover Compact, with removable seat (QuickRelease), White Alpin
    Collection Subway 2.0
    Product designation Toilet seat and cover Compact
    Article number 9M69Q101
    Dimension 360 x 415 x 55 mm
    to product detail
    Villeroy & Boch Subway 2.0 Toilet seat and cover Compact, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection Subway 2.0
    Product designation Toilet seat and cover Compact
    Article number 9M69S101
    Dimension 360 x 415 x 55 mm
    to product detail
    Spareparts
    back

    Spareparts

    Villeroy & Boch Spare parts Suprafix 3.0 compact Fastening set, 166x273mm
    Product designation Fastening set
    Article number 92238300
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Subway-2-0-5606R0-II-v00-45167-en.pdf
    Technical drawing

    VB-Subway-2-0-5606R0-2D01-v01-39351.pdf

    Planning information

    2-D data

    VB-Subway-2-0-5606R0-2D01-v01-39351.dwg
    2-D data

    VB-Subway-2-0-5606R0-2D01-v01-39351.dxf
    2-D data

    VB-Subway-2-0-5606R0-2D01-v01-39351.eps
    3-D data

    VB-Subway-2-0-5606R0-3D01-v00-42755.stp
    BIM data

    Item documentation

    Declaration of Performance (DOP)

    VB-S-YTD-C113-0001-v18-57461.pdf
    Declaration of Performance (DOP)

    VB-S-YTD-C113-0001-v19-57461.pdf
