Washdown toilet for close-coupled WC-suite, rimless

Subway 2.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

5617R0R1

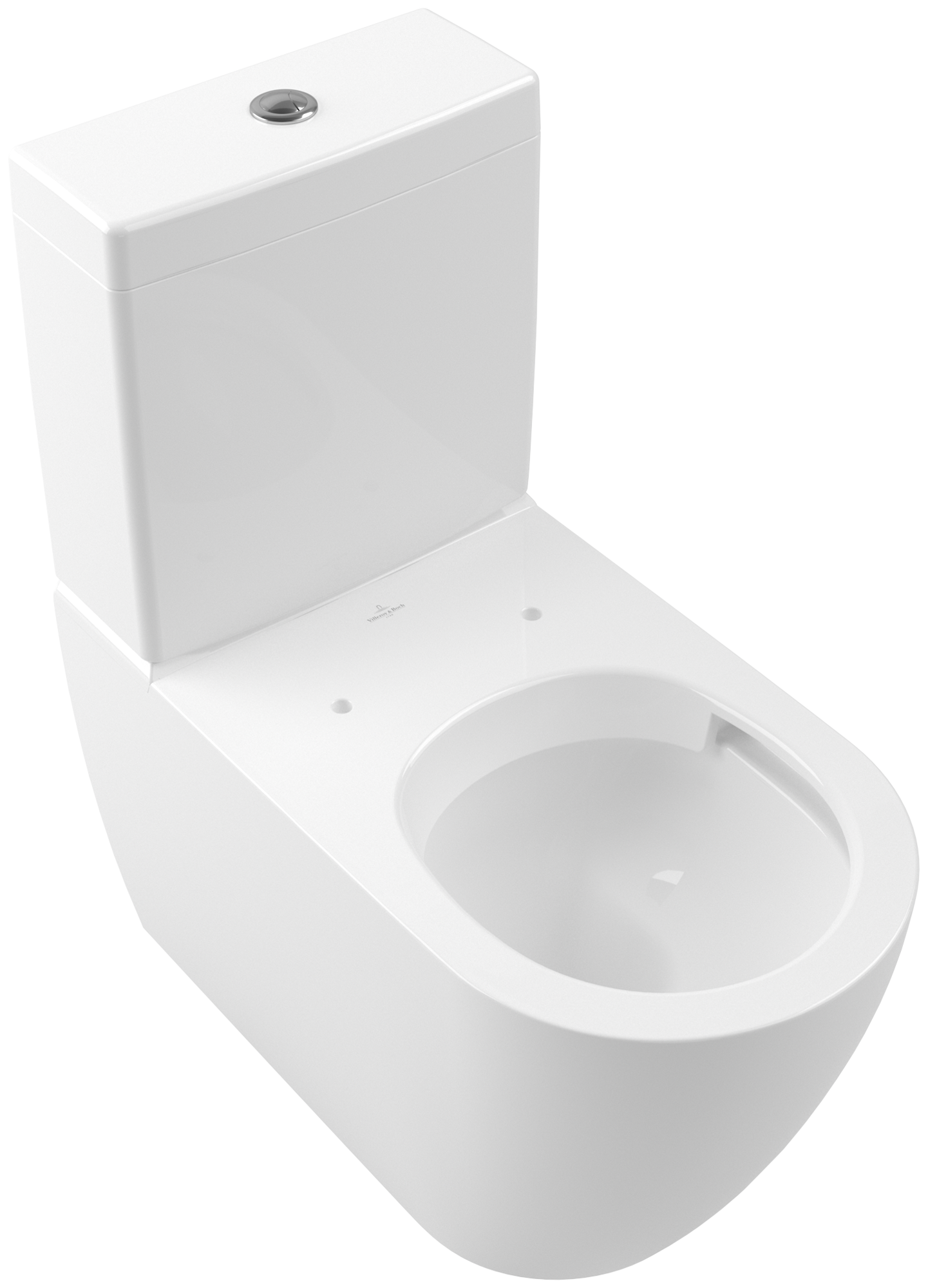

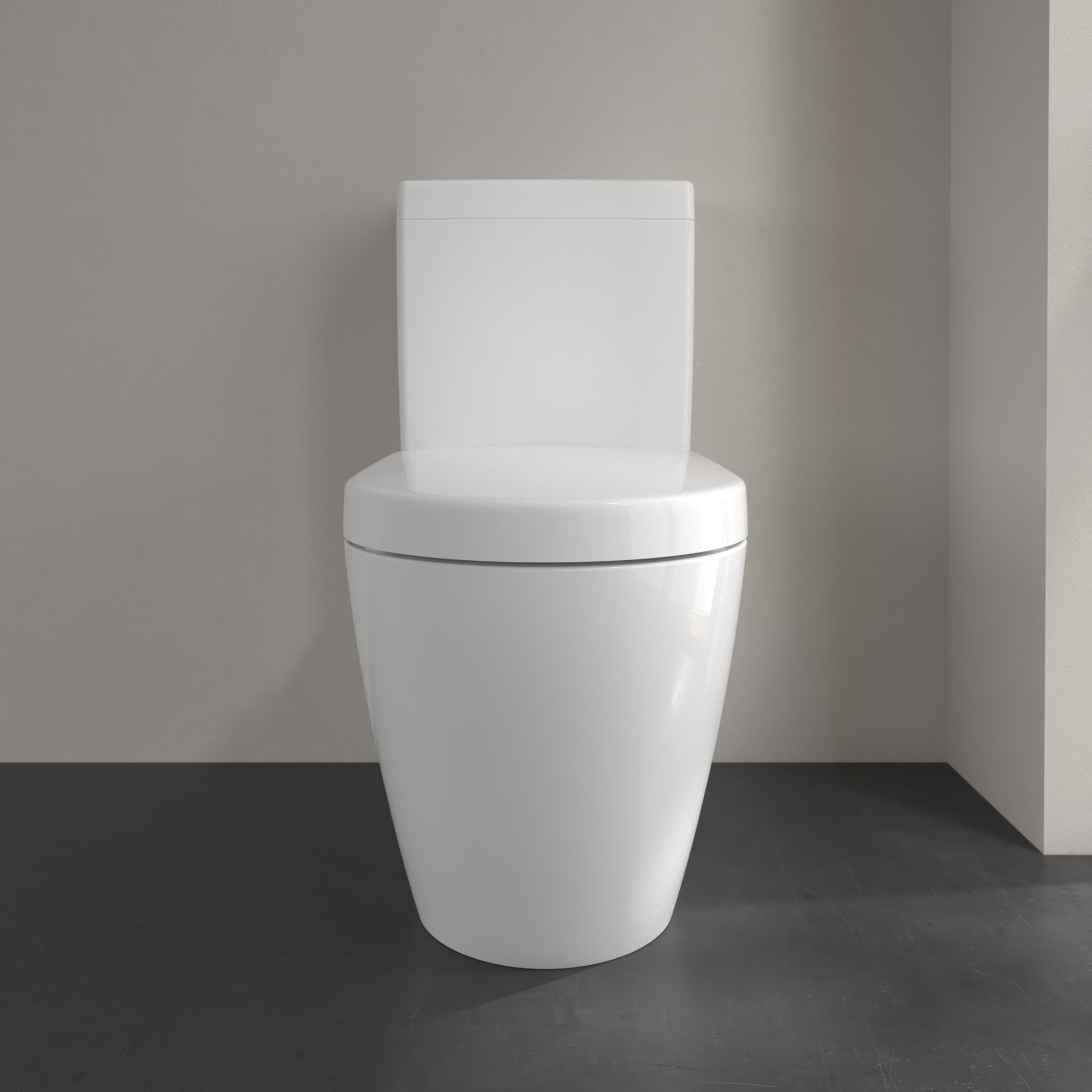

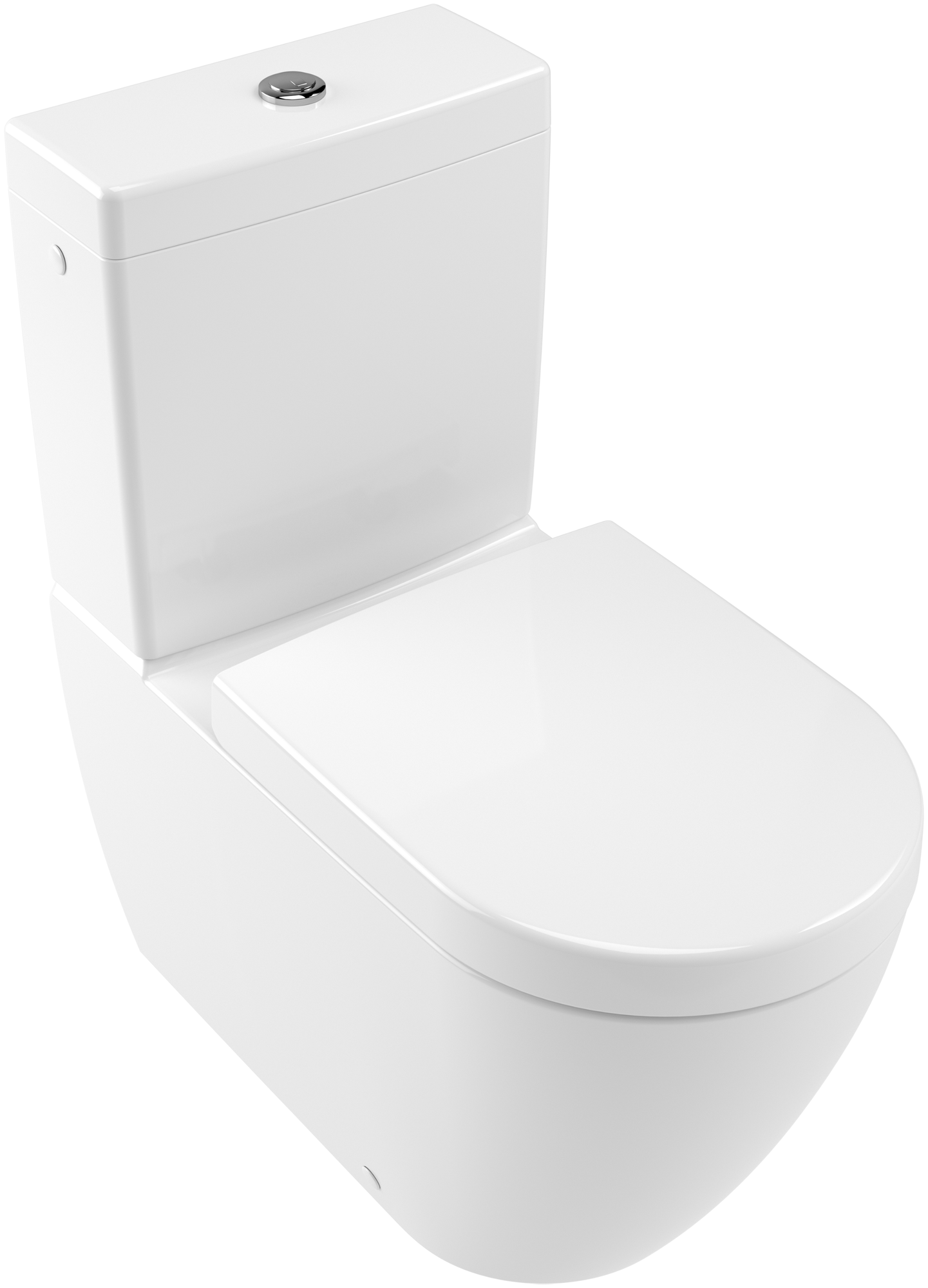

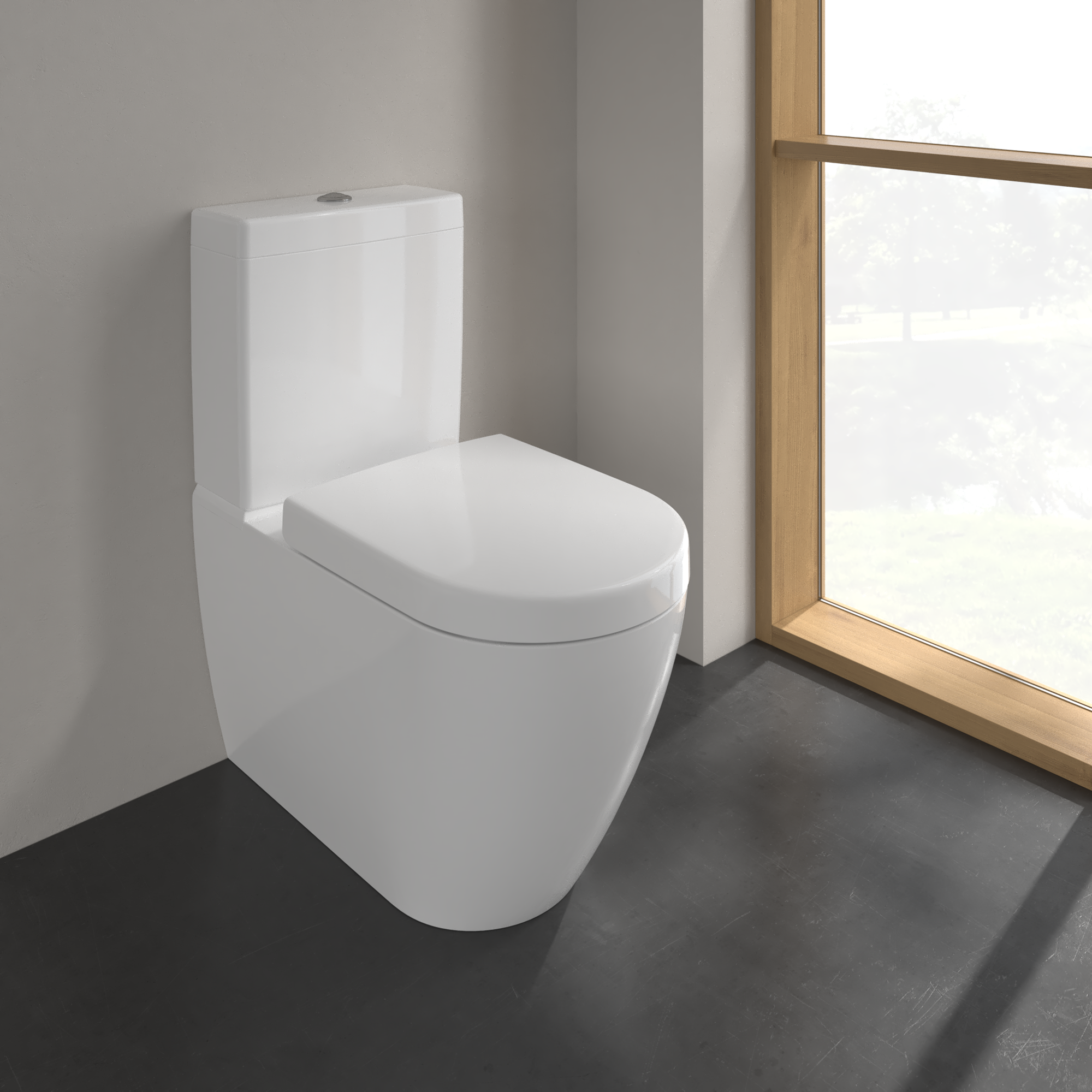

Subway 2.0 DirectFlush Washdown toilet for close-coupled WC-suite, rimless, floor-standing, with DirectFlush, White Alpin CeramicPlus

SIZE AND SHAPE :
Width in mm
370
Length in mm
700
Height in mm
400
Form
Oval
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
floor-standing back to wall
Assembly instructions
recommendation: to be installed from the wall at: 15 mm
Suitable for
Mounted cistern

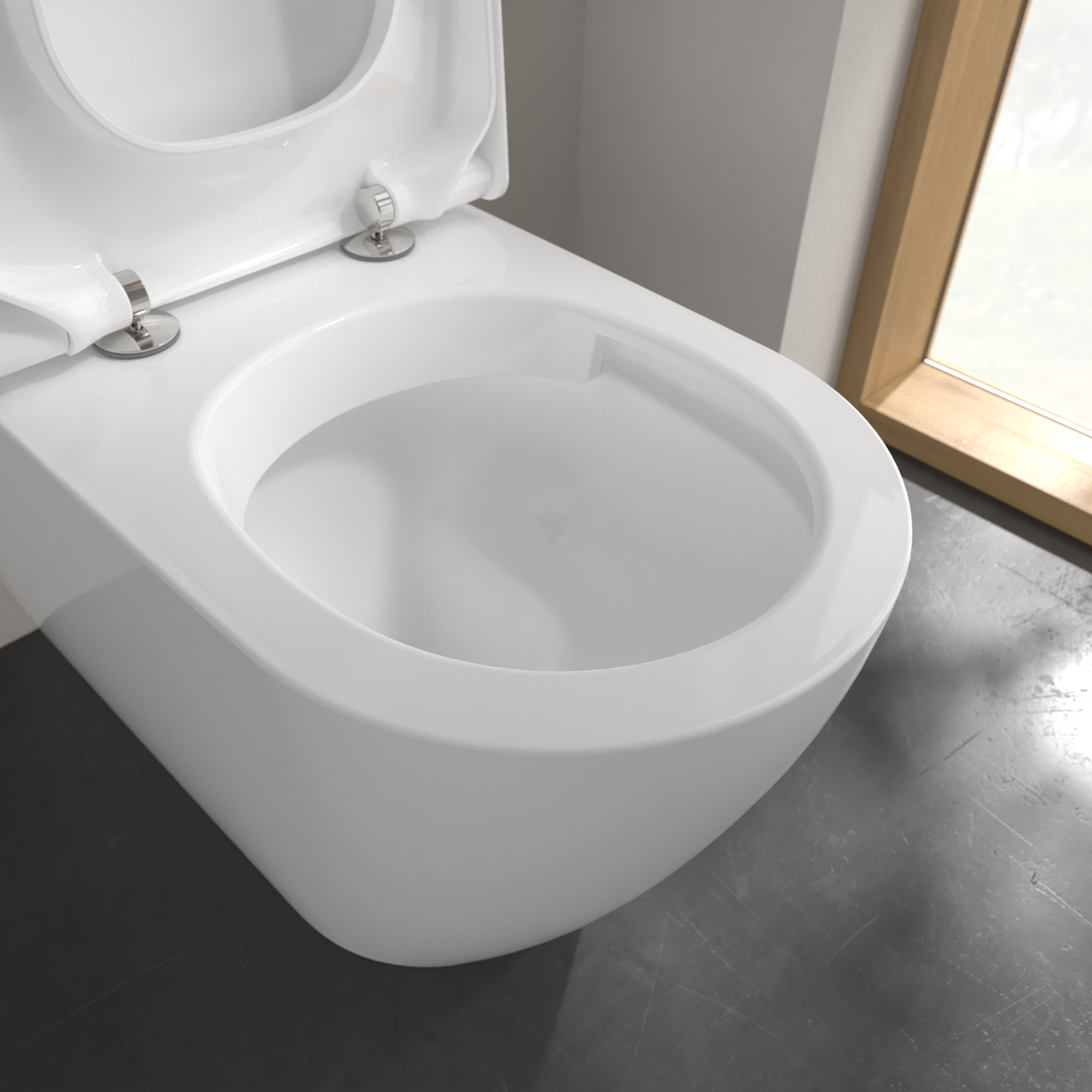

Rimless
Yes
Innovative flushing technology (with TwistFlush)
No
Innovative flushing technology (with TwistFlush[e³])
No
Flush type
Washdown toilet
Flush volume l
3 - 4.5 l
Outlet / outlet
horizontal outlet
Wall-mounted - floor-standing
floor-standing
Leed
4
Material
Sanitary ceramics
Colour name
White Alpin CeramicPlus
Article number:

5617R0R1

availability:
    Subway 2.0

    Washdown toilet for close-coupled WC-suite, rimless

    Technical information
    back

    Technical information

    Article title

    Subway 2.0 DirectFlush Washdown toilet for close-coupled WC-suite, rimless, floor-standing, with DirectFlush, White Alpin CeramicPlus

    Article number

    5617R0R1

    Assembly / Assembly type

    floor-standing

    back to wall

    Assembly instructions

    recommendation: to be installed from the wall at: 15 mm

    Scope of delivery

    1 x washdown toilet, rimless

    1 x fastening set

    Ordering information

    Please order Vario drainbend separately.

    Length in mm

    700

    Width in mm

    370

    Height in mm

    400

    Collection

    Subway 2.0

    Weight in kg

    39,40

    Suitable for

    Mounted cistern

    Rimless

    Yes

    Innovative flushing technology (with TwistFlush)

    No

    Innovative flushing technology (with TwistFlush[e³])

    No

    Flush type

    Washdown toilet

    Flush volume l

    3 - 4.5 l

    Outlet / outlet

    horizontal outlet

    Wall-mounted - floor-standing

    floor-standing

    Leed

    4

    Material

    Sanitary ceramics

    Colour name

    White Alpin CeramicPlus

    EAN number

    4051202320713

    Model number

    5617R0

    accessories
    back

    accessories

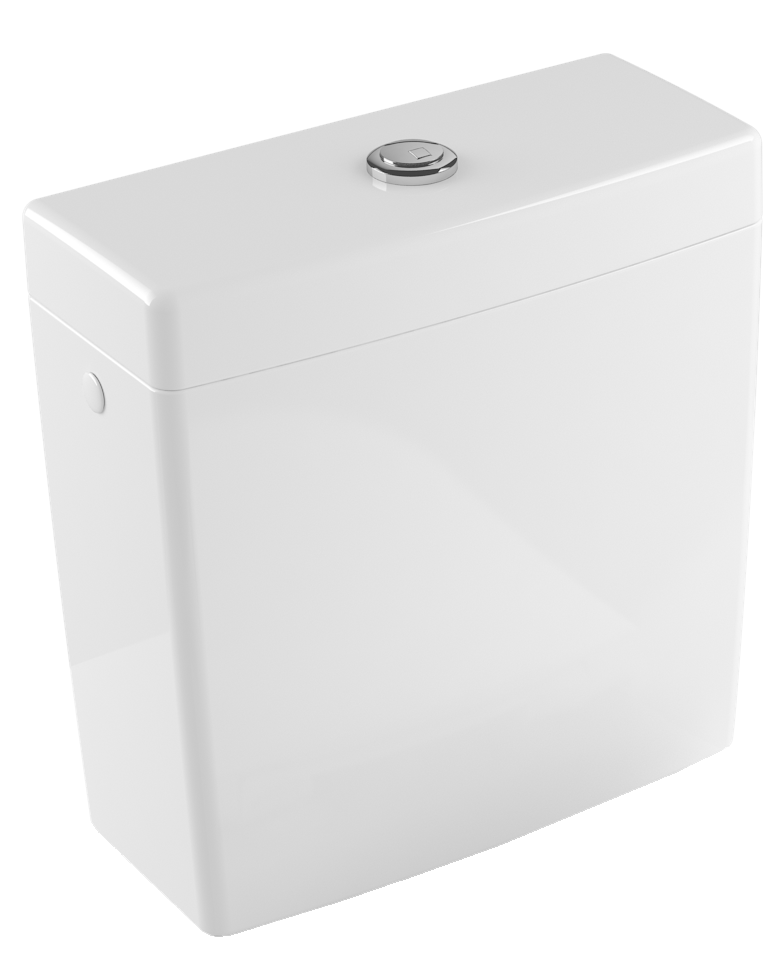

    Villeroy & Boch Subway 2.0 Cistern, water inlet from the sides or rear, White Alpin CeramicPlus
    Collection Subway 2.0
    Product designation Cistern
    Article number 570611R1
    Dimension 383 x 165 x 389 mm
    to product detail
    Suitable products
    back

    Suitable products

    Villeroy & Boch Subway 2.0 Seat, White Alpin
    Collection Subway 2.0
    Product designation Seat
    Article number 9M746101
    Dimension 361 x 458 x 50 mm
    to product detail
    Villeroy & Boch Subway 2.0 Toilet seat and cover, with removable seat (QuickRelease), White Alpin
    Collection Subway 2.0
    Product designation Toilet seat and cover
    Article number 9M68Q101
    Dimension 375 x 459 x 80 mm
    to product detail
    Villeroy & Boch Subway 2.0 Toilet seat and cover, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection Subway 2.0
    Product designation Toilet seat and cover
    Article number 9M68S101
    Dimension 375 x 459 x 60 mm
    to product detail
    Villeroy & Boch Subway 2.0 Toilet seat and cover SlimSeat, with automatic lowering mechanism (SoftClosing), with removable seat (QuickRelease), White Alpin
    Collection Subway 2.0
    Product designation Toilet seat and cover SlimSeat
    Article number 9M78S101
    Dimension 374 x 439 x 43 mm
    to product detail
    Show more
    Spareparts
    back

    Spareparts

    Villeroy & Boch Spare parts Hinge fastening, 62.5x118mm
    Product designation Hinge fastening
    Article number 92240400
    to product detail
    Villeroy & Boch Spare parts Fastening set, 133x183mm, White Alpin
    Product designation Fastening set
    Article number 92248701
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Subway-2-0-5617R0-II-v02-43635-en.pdf
    Assembly instructions

    VB-Subway-2-0-5617R0-II-v03-43636-en.pdf
    Technical drawing

    VB-Subway-2-0-5617R0-2D01-v00-39371.pdf
    Technical drawing

    VB-Subway-2-0-5617R0-2D01-v00-39372.pdf

    Planning information

    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39371.dwg
    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39371.dxf
    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39371.eps
    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39372.dwg
    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39372.dxf
    2-D data

    VB-Subway-2-0-5617R0-2D01-v00-39372.eps
    3-D data

    VB-Subway-2-0-5617R0-3D01-v00-42765.stp
    BIM data

    Item documentation

    Declaration of Performance (DOP)

    VB-S-YTD-C413-0001-v04-57462.pdf
    Exploded-view drawing

    VB-Subway-2-0-5617R0-EXPL-v01-49086.pdf
