Vanity unit

Subway 3.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

C571L2AF

Subway 3.0 Vanity unit, with lighting, 2 pull-out compartments, 1001x423x500mm, Body: Soft Green, Front: Soft Green

SIZE AND SHAPE :
Width in mm
1001
Height in mm
423
Form
Angular
COLOUR AND SURFACE :
Colour designation
Soft Green
Colour designation of front/body
Soft Green
PROPERTIES :
Assembly / Assembly type
wall-mounted
Type of opening
2 pull-out compartments
Equipment
2 x pull-out compartment with non-slip mat 2 x accessory dish (small) 1 x shelf unit on left
Position of washbasin
washbasin on right
Position of shelf unit
left
Depth in mm
500
Depth with handle mm
516
Depth without handle mm
500
Suitable for
selected vanity washbasins
Function
Colour name
Soft Green
Material front
Chipboard
Surface of front
matt
Material body
Chipboard
Surface of body
matt
Other material
Other surfaces
Countertop: matt Handle: matt
Operating mode
Mains-operated
Energy detection
This light contains replaceable LED lamps. The lamps in the light can be replaced.
Lighting
3x LED
Power of lamp
1 x LED / 6,48 W, 1 x LED / 3 W, 1 x LED / 7,2 W
Light colour (designation & colour temperature)
4000 K (neutral white)
Lighting control
when opening the drawer, with sensor dimmer, dimmable
Degree of protection
IP 44
Type of handles
Handle
Lightingvariants
with LED floor lighting with LED pull-out lighting
Article number:

C571L2AF

availability:
    Subway 3.0

    Vanity unit

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Vanity unit, with lighting, 2 pull-out compartments, 1001x423x500mm, Body: Soft Green, Front: Soft Green

    Article number

    C571L2AF

    Assembly / Assembly type

    wall-mounted

    Type of opening

    2 pull-out compartments

    Equipment

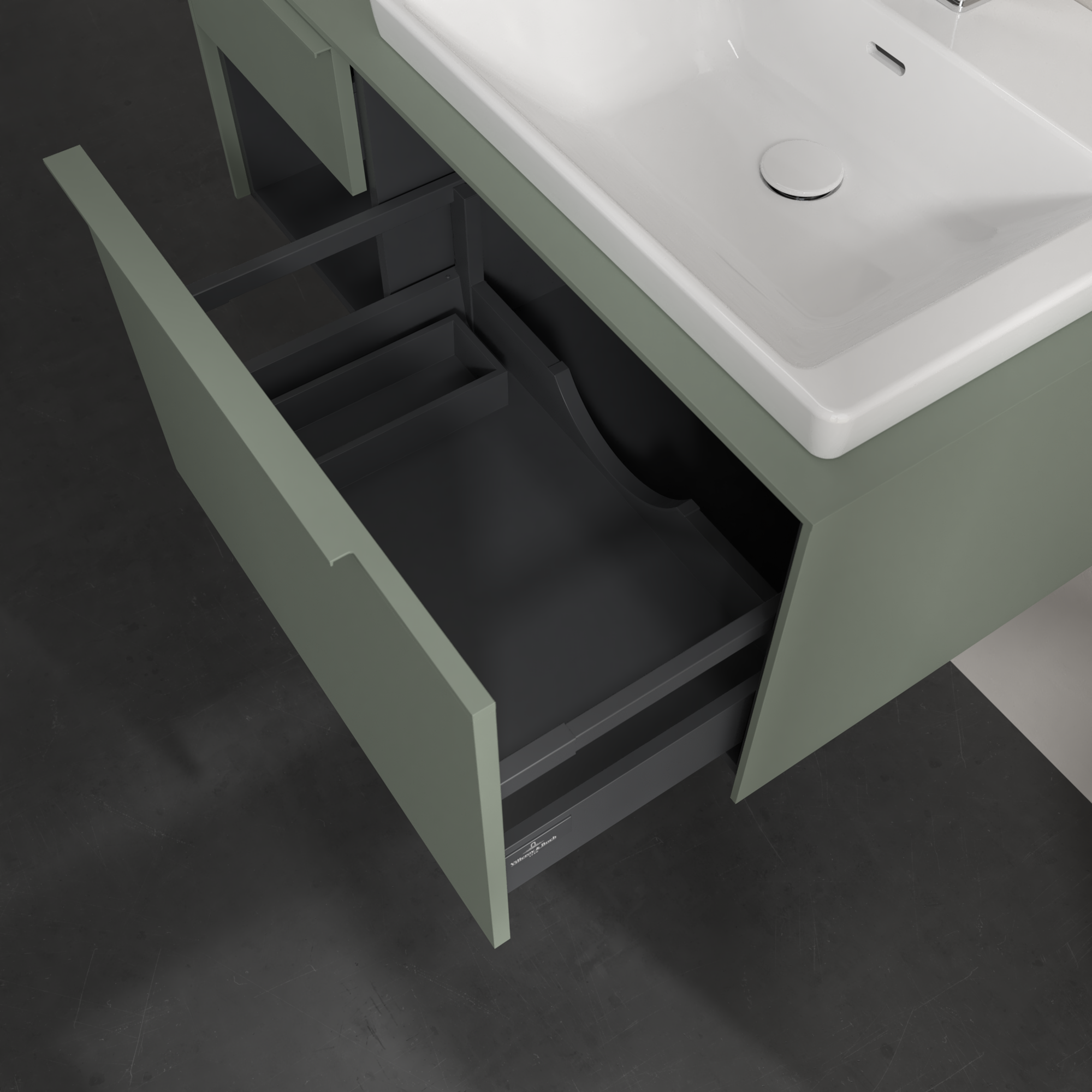

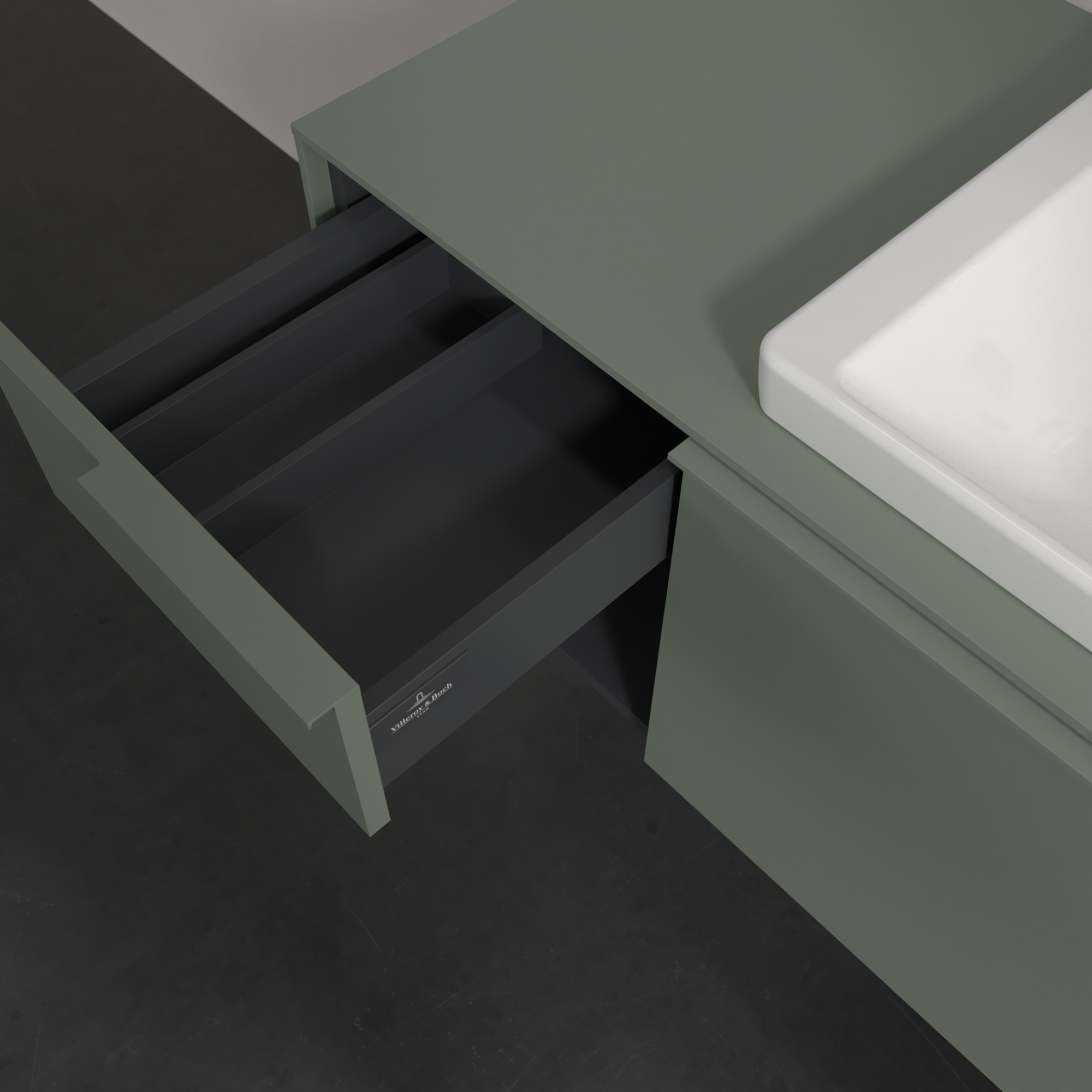

    2 x pull-out compartment with non-slip mat

    2 x accessory dish (small)

    1 x shelf unit on left

    Scope of delivery

    1 x vanity unit

    1 x fastening set

    Position of washbasin

    washbasin on right

    Position of shelf unit

    left

    Depth in mm

    500

    Width in mm

    1001

    Height in mm

    423

    Depth with handle mm

    516

    Depth without handle mm

    500

    Collection

    Subway 3.0

    Weight in kg

    40,54

    express delivery

    No

    Suitable for

    selected vanity washbasins

    Function

    • with automatic lowering mechanism (SoftClosing)

    • with lighting

    Colour name

    Soft Green

    Material front

    Chipboard

    Surface of front

    matt

    Material body

    Chipboard

    Surface of body

    matt

    Other material

    • Countertop: Chipboard

    • Handle: aluminium

    Other surfaces

    Countertop: matt

    Handle: matt

    Operating mode

    Mains-operated

    Energy detection

    This light contains replaceable LED lamps.

    The lamps in the light can be replaced.

    Lighting

    3x LED

    Power of lamp

    1 x LED / 6,48 W, 1 x LED / 3 W, 1 x LED / 7,2 W

    Light colour (designation & colour temperature)

    4000 K (neutral white)

    Lighting control

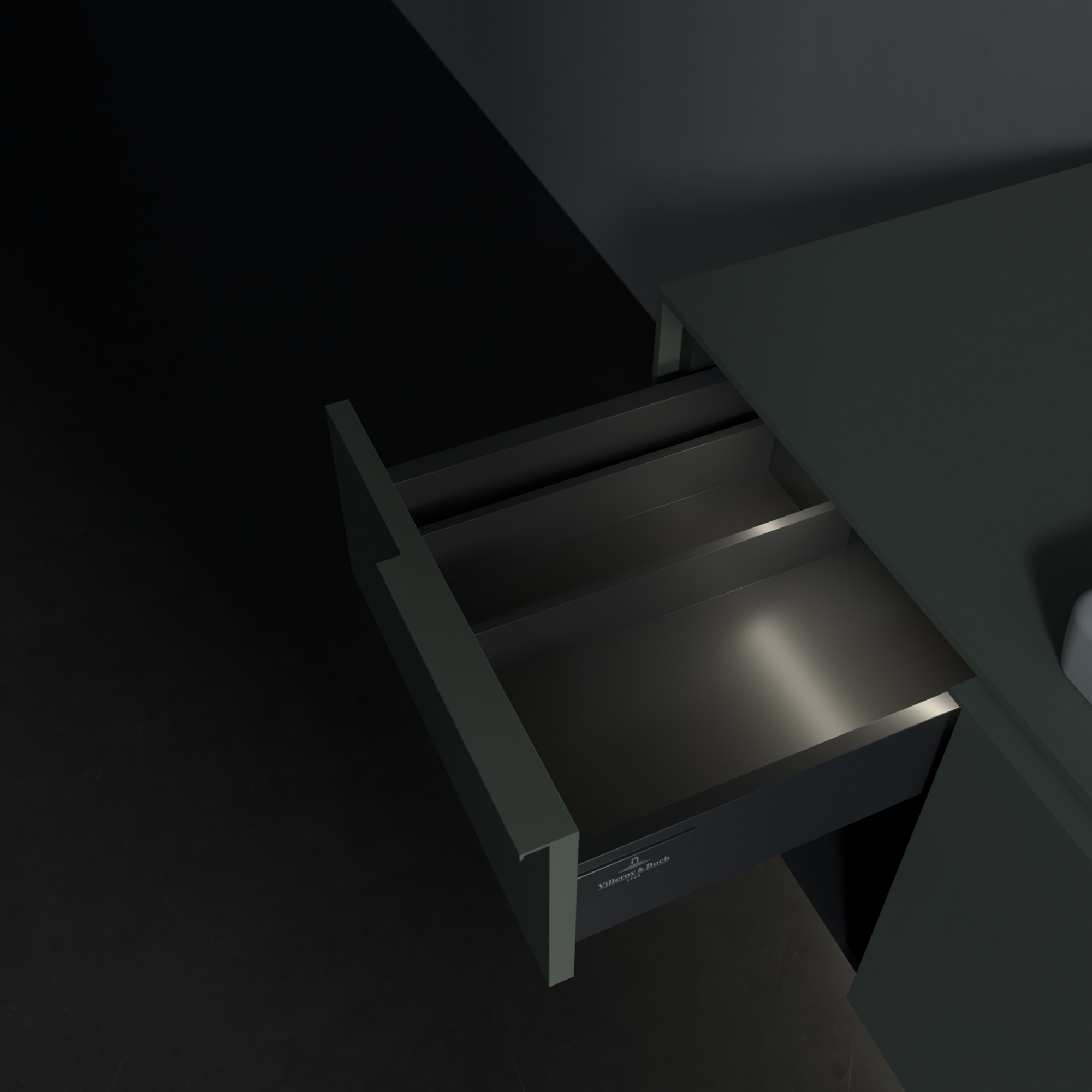

    when opening the drawer, with sensor dimmer, dimmable

    Degree of protection

    IP 44

    Type of handles

    Handle

    EAN number

    4062373934333

    Model number

    C571L2

    Lightingvariants

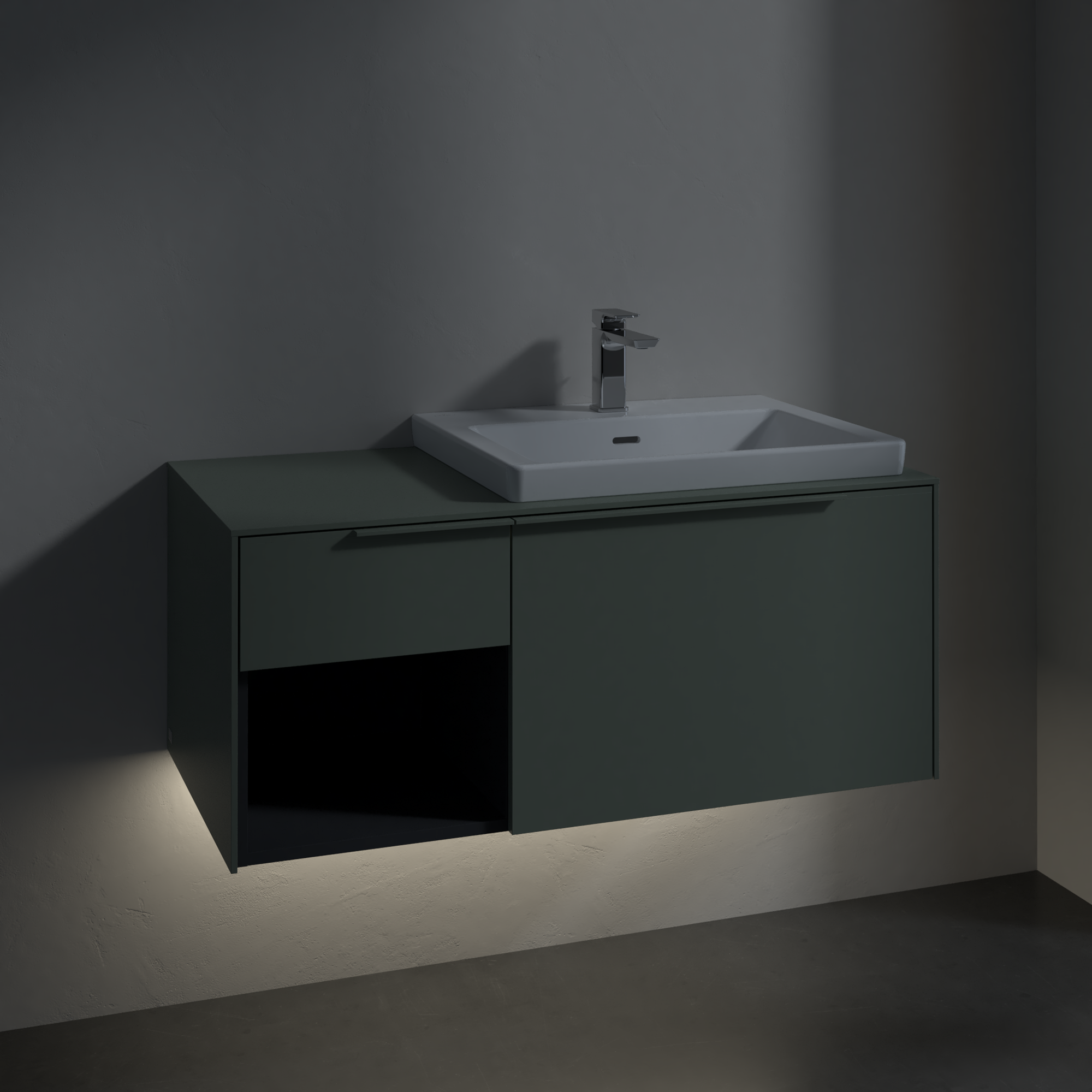

    with LED floor lighting

    with LED pull-out lighting

    Suitable products
    back

    Suitable products

    Villeroy & Boch Subway 3.0 Washbasin, 600x470x165mm, with overflow, White Alpin
    Collection Subway 3.0
    Product designation Washbasin
    Article number 4A706G01
    Dimension 600 x 470 x 165 mm
    to product detail
    Villeroy & Boch Subway 3.0 Washbasin, 600x470x165mm, without overflow, White Alpin CeramicPlus
    Collection Subway 3.0
    Product designation Washbasin
    Article number 4A706LR1
    Dimension 600 x 470 x 165 mm
    to product detail
    Villeroy & Boch Subway 3.0 Washbasin, 600x470x165mm, without overflow, White Alpin
    Collection Subway 3.0
    Product designation Washbasin
    Article number 4A706F01
    Dimension 600 x 470 x 165 mm
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Subway-3-0-C571L2-II-v00-60516-en.pdf
    Technical drawing

    VB-Subway-3-0-C571L2-2D01-v00-57975.pdf

    Planning information

    2-D data

    VB-Subway-3-0-C571L2-2D01-v00-57975.eps
    3-D data

    VB-Subway-3-0-C571L2-3D01-v00-57976.dwg
    3-D data

    VB-Subway-3-0-C571L2-3D01-v00-57976.stp
    BIM data

    Item documentation

    Spare parts list

    VB-Subway-3-0-C571L2-SPS-v00-57977-en.pdf

    Use & care

    Care instructions

    VB-Subway-3-0-C571L2-CI-v00-67449-en.pdf
