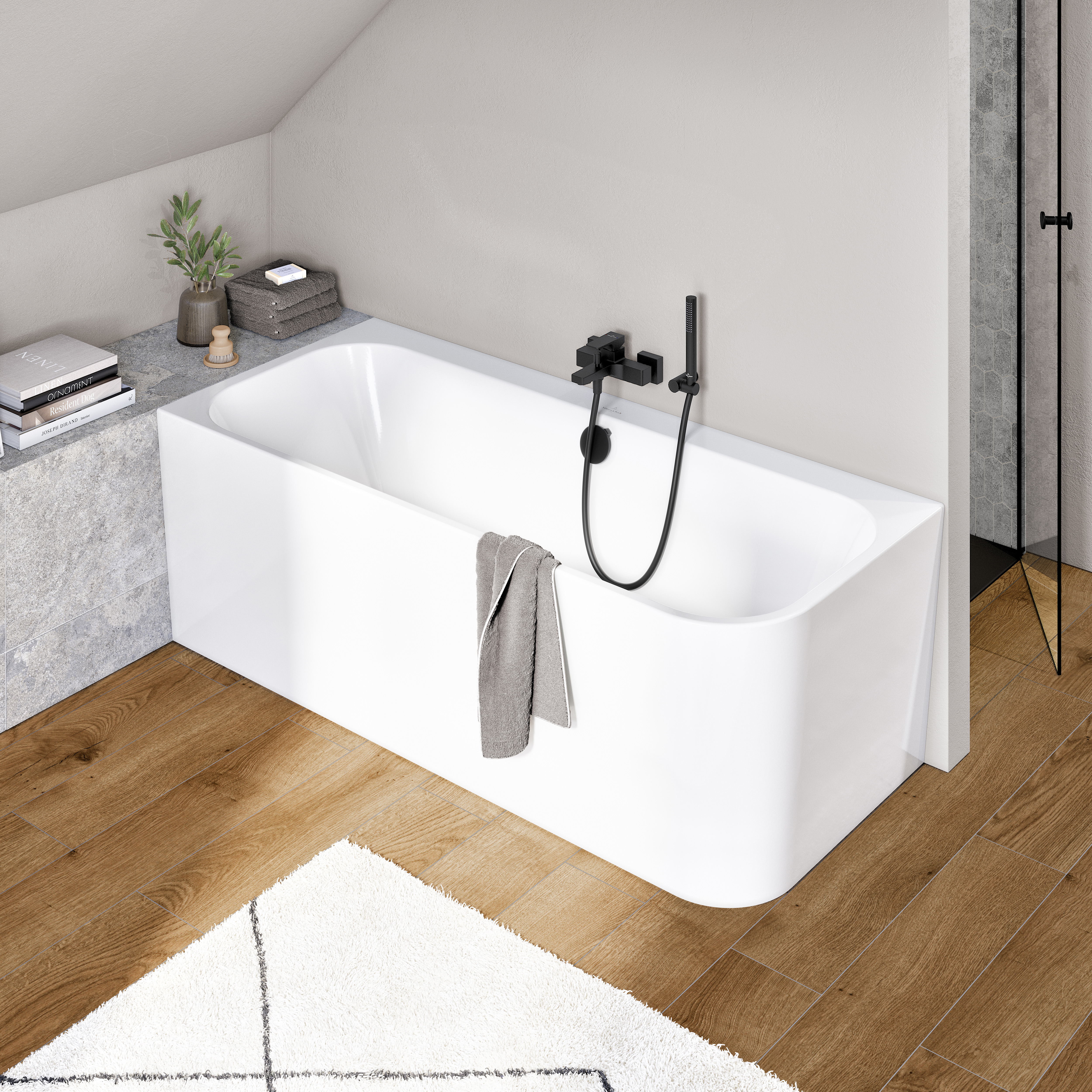

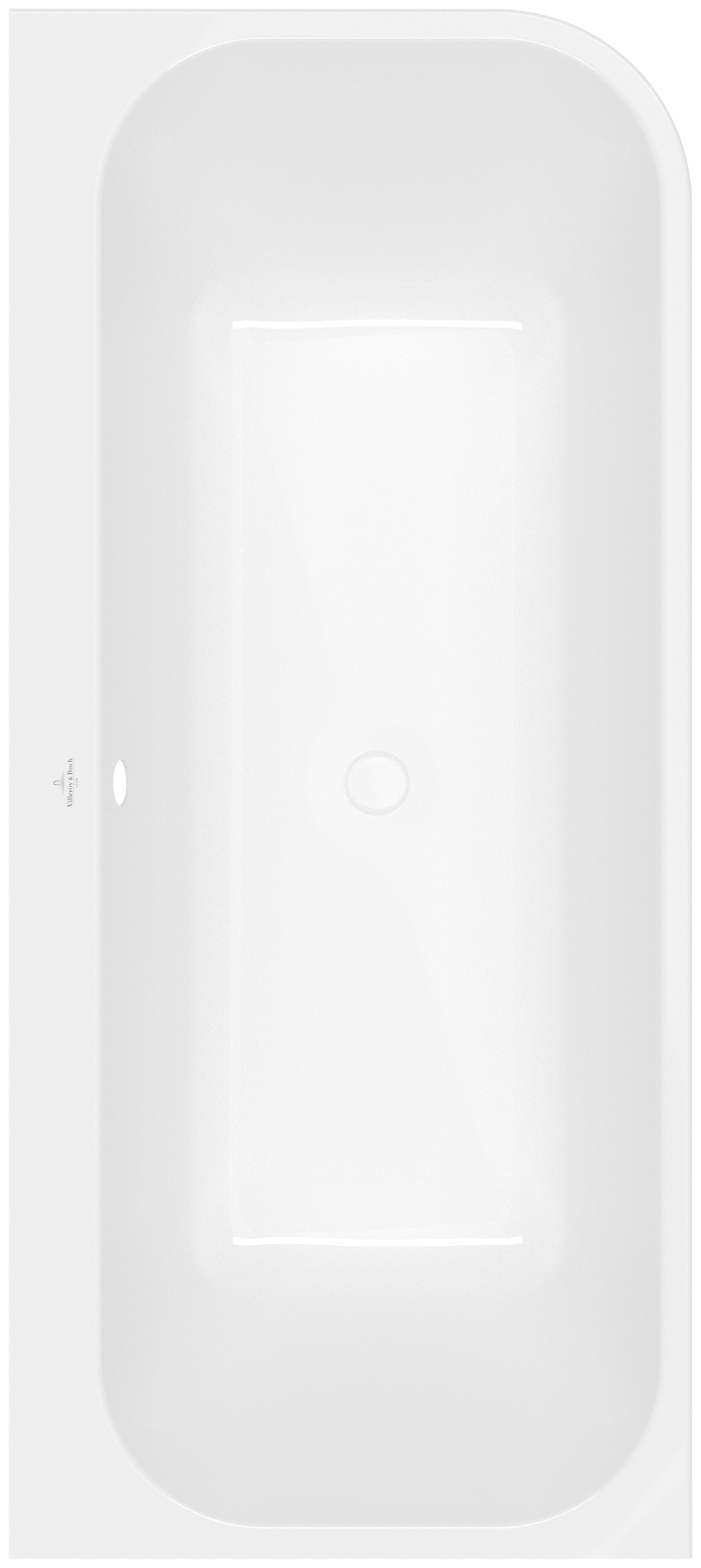

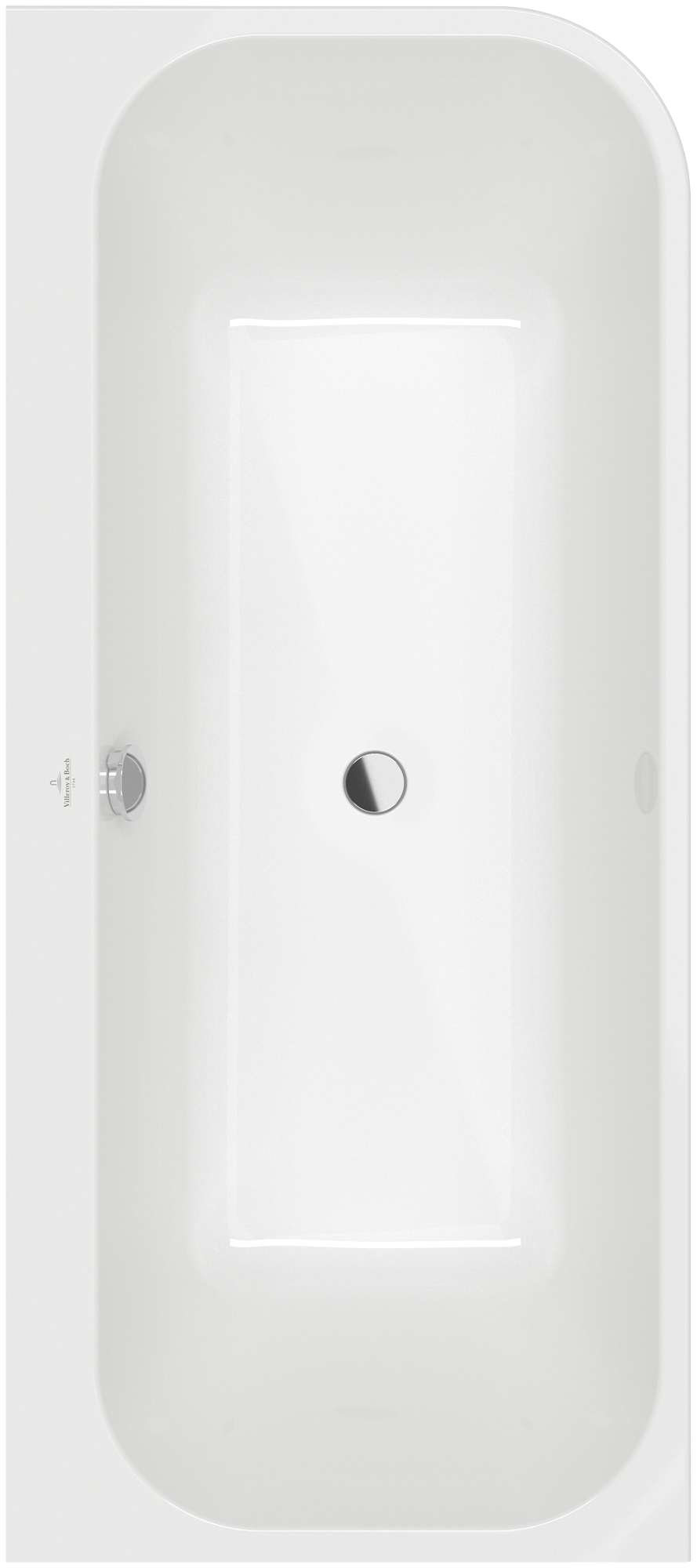

Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin

Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin
Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin
Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin
Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin
Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin
View

Back-to-wall bath for left corner installation

Architectura

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

UBA170ARE9CL00V-01

Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin

SIZE AND SHAPE :
Width in mm
750
Length in mm
1700
Height in mm
575
Form
Wall-facing, left-hand model
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
wall-mounted
Assembly instructions
Central positioning of the tap fitting is not possible.
Installation height
Whirlpool system: 575 mm Bath with panel: 575 mm
Interior depth
420
Outlet / outlet
central outlet
Material
Acrylic
Colour name
White Alpin
With feet/base
No
With panel
No
With overflow
Yes
Water content
360
Capacity incl. 1 pers
136
Number of people
2
For handle mounting
No
Anti-slip class
Anti-slip class A
Following systems are available
[AC] Airpools [AE] Airpools
Seat unit
2
Article number:

UBA170ARE9CL00V-01

availability:
    Architectura

    Back-to-wall bath for left corner installation

    Technical information
    back

    Technical information

    Article title

    Architectura Back-to-wall bath for left corner installation, 1700x750mm, White Alpin

    Article number

    UBA170ARE9CL00V-01

    Assembly / Assembly type

    wall-mounted

    Assembly instructions

    Central positioning of the tap fitting is not possible.

    Scope of delivery

    1 x rectangular bath

    Length in mm

    1700

    Width in mm

    750

    Height in mm

    575

    Installation height

    Whirlpool system: 575 mm

    Bath with panel: 575 mm

    Interior depth

    420

    Collection

    Architectura

    Weight in kg

    47,00

    Outlet / outlet

    central outlet

    Material

    Acrylic

    Colour name

    White Alpin

    With feet/base

    No

    With panel

    No

    With overflow

    Yes

    Water content

    360

    Capacity incl. 1 pers

    136

    Number of people

    2

    For handle mounting

    No

    Anti-slip class

    Anti-slip class A

    Following systems are available

    [AC] Airpools

    [AE] Airpools

    Seat unit

    2

    EAN number

    4065467440482

    Model number

    UBA170ARE9CL00V

    Spareparts
    back

    Spareparts

    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Bali
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LK
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Peru
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LL
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Waste/overflow combination, 200x315x130mm, Chrome
    Collection Accessories
    Product designation Waste/overflow combination
    Article number U90960461
    Dimension 200 x 315 x 130 mm
    to product detail
    Villeroy & Boch Accessories Outlet/overflow fitting with water inlet, 200x465x130mm, Chrome
    Collection Accessories
    Product designation Outlet/overflow fitting with water inlet
    Article number U90960361
    Dimension 200 x 465 x 130 mm
    to product detail
    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
    to product detail
    Villeroy & Boch Accessories Bath feet, 150x600x120mm
    Collection Accessories
    Product designation Bath feet
    Article number U99740000
    Dimension 150 x 600 x 120 mm
    to product detail
    Villeroy & Boch Spare parts Sichtbare Teile Rohrunterbrecher, 75x85mm
    Product designation Visible parts pipe interrupter
    Article number UCCON0454
    to product detail
    Villeroy & Boch Spare parts Adapter für Rohrunterbrecher, 30x57mm
    Product designation Adapter for pipe interrupter
    Article number UCWAS0350
    to product detail
    Villeroy & Boch Spare parts Set Ablassventil, 100x100mm
    Product designation Drain valve set
    Article number UCWAS0364
    to product detail
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0359-61
    to product detail
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0360-61
    to product detail
    Show more
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Architectura-UBA170ARE9CL00V-II-v00-45843-en.pdf
    Technical drawing

    VB-Architectura-UBA170ARE9CL00V-2D01-v00-58604.pdf

    Planning information

    2-D data

    VB-Architectura-UBA170ARE9CL00V-2D01-v00-58604.dwg
    2-D data

    VB-Architectura-UBA170ARE9CL00V-2D01-v00-58604.dxf
    3-D data

    VB-Architectura-UBA170ARE9CL00V-3D01-v01-45630.stp
    BIM data

    Item documentation

    Declaration of Performance (DOP)

    VB-W-YTD-G1413-0001-v01-70202.pdf
