ViConnect installation systems Concealed cistern, for Brick-wall construction, 528x695x125mm

ViConnect installation systems Concealed cistern, for Brick-wall construction, 528x695x125mm
SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

92233400

ViConnect installation systems Concealed cistern, for Brick-wall construction, 528x695x125mm

SIZE AND SHAPE :
Width in mm
528
Length in mm
125
Height in mm
695
COLOUR AND SURFACE :
PROPERTIES :
Assembly / Assembly type
Brick-wall construction
Assembly instructions
installation on or in front of a solid brick wall
Material
Plastic
Technical information
Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l Pre-set flushing volume 6 / 3 l Range for large flushing volume 4.5 - 6 l Range for small flushing volume 3 - 4 l
Article number:

92233400

availability:
    ViConnect installation systems

    Concealed cistern

    Technical information
    back

    Technical information

    Article title

    ViConnect installation systems Concealed cistern, for Brick-wall construction, 528x695x125mm

    Article number

    92233400

    Assembly / Assembly type

    Brick-wall construction

    Assembly instructions

    installation on or in front of a solid brick wall

    Scope of delivery

    1 x cistern

    1 x installation kit

    Length in mm

    125

    Width in mm

    528

    Height in mm

    695

    Collection

    ViConnect installation systems

    Weight in kg

    3,41

    Material

    Plastic

    Technical information

    Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l

    Pre-set flushing volume 6 / 3 l

    Range for large flushing volume 4.5 - 6 l

    Range for small flushing volume 3 - 4 l

    EAN number

    4051202918590

    Model number

    922334

    Suitable products
    back

    Suitable products

    Villeroy & Boch ViConnect installation systems 300G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922160RE
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92218068
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92216168
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, Anthracite Matt
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922169D8
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 100S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92248568
    Dimension 205 x 145 x 22 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92249068
    Dimension 253 x 145 x 10 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922400RE
    Dimension 269 x 161 x 13 mm
    to product detail
    Show more
    Spareparts
    back

    Spareparts

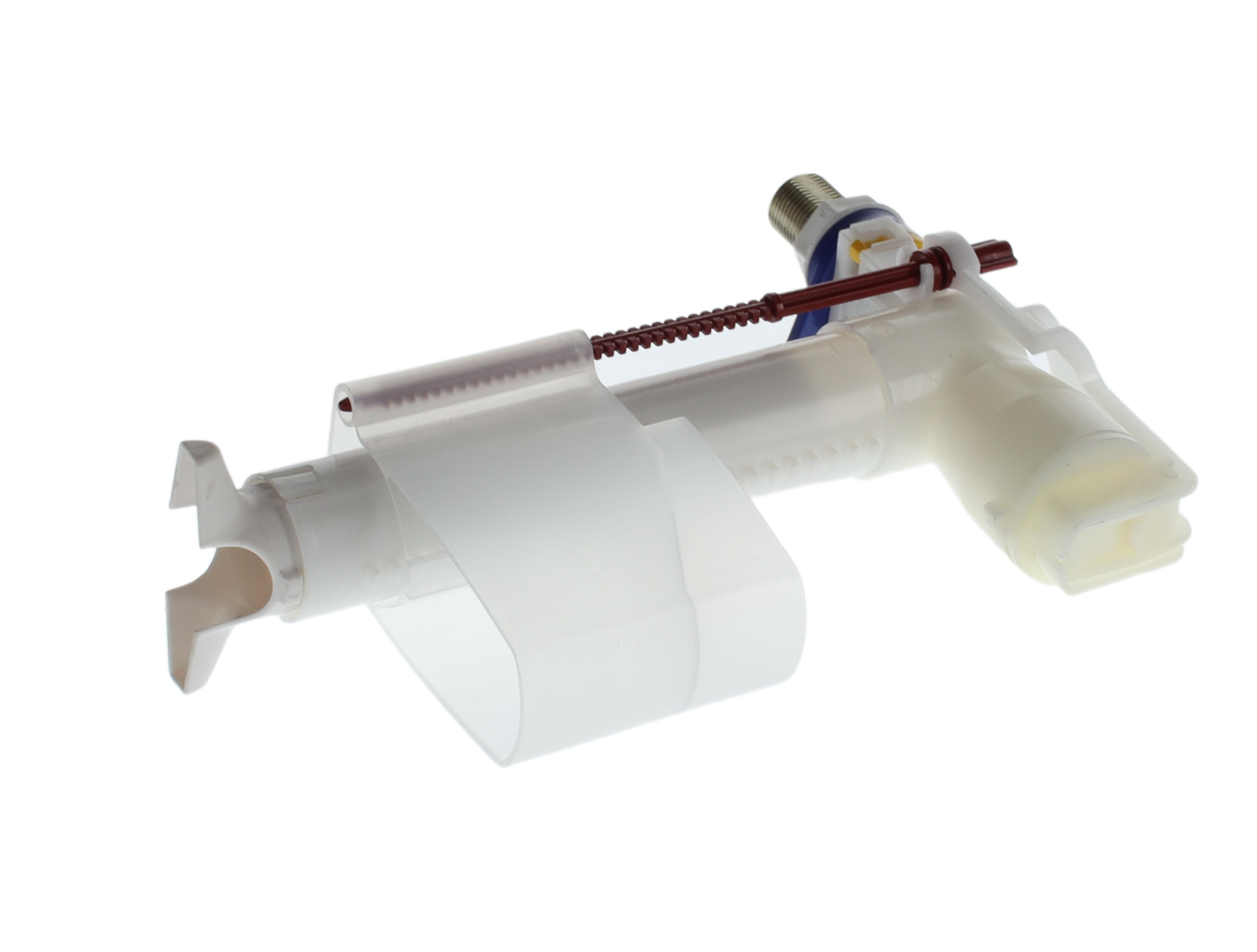

    Villeroy & Boch Spare parts ViConnect Filling valve AUS Inlet nipple made of DZR, 144x215mm
    Product designation Filling valve
    Article number 8L327000
    to product detail
    Villeroy & Boch Spare parts ViConnect Seal for outlet valve, 64x64mm
    Product designation Seal for outlet valve
    Article number 92210800
    to product detail
    Villeroy & Boch Spare parts ViConnect Seal for flush pipe bend, 65x70mm
    Product designation Seal for flush pipe bend
    Article number 92236100
    to product detail
    Villeroy & Boch Spare parts ViConnect Set of washers, 61x106mm
    Product designation Set of washers
    Article number 92248900
    to product detail
    Villeroy & Boch Spare parts ViConnect Construction protection for concealed cistern, 118x177.5mm
    Product designation Construction protection for concealed cistern
    Article number 92249400
    to product detail
    Villeroy & Boch Spare parts ViConnect Cable box for connecting to the outlet valve and flush plate, 31x382mm
    Product designation Cable box for connecting to the outlet valve and flush plate
    Article number 92249500
    to product detail
    Villeroy & Boch Spare parts ViConnect Outlet valve, 261.5x403mm
    Product designation Outlet valve
    Article number 8L073400
    to product detail

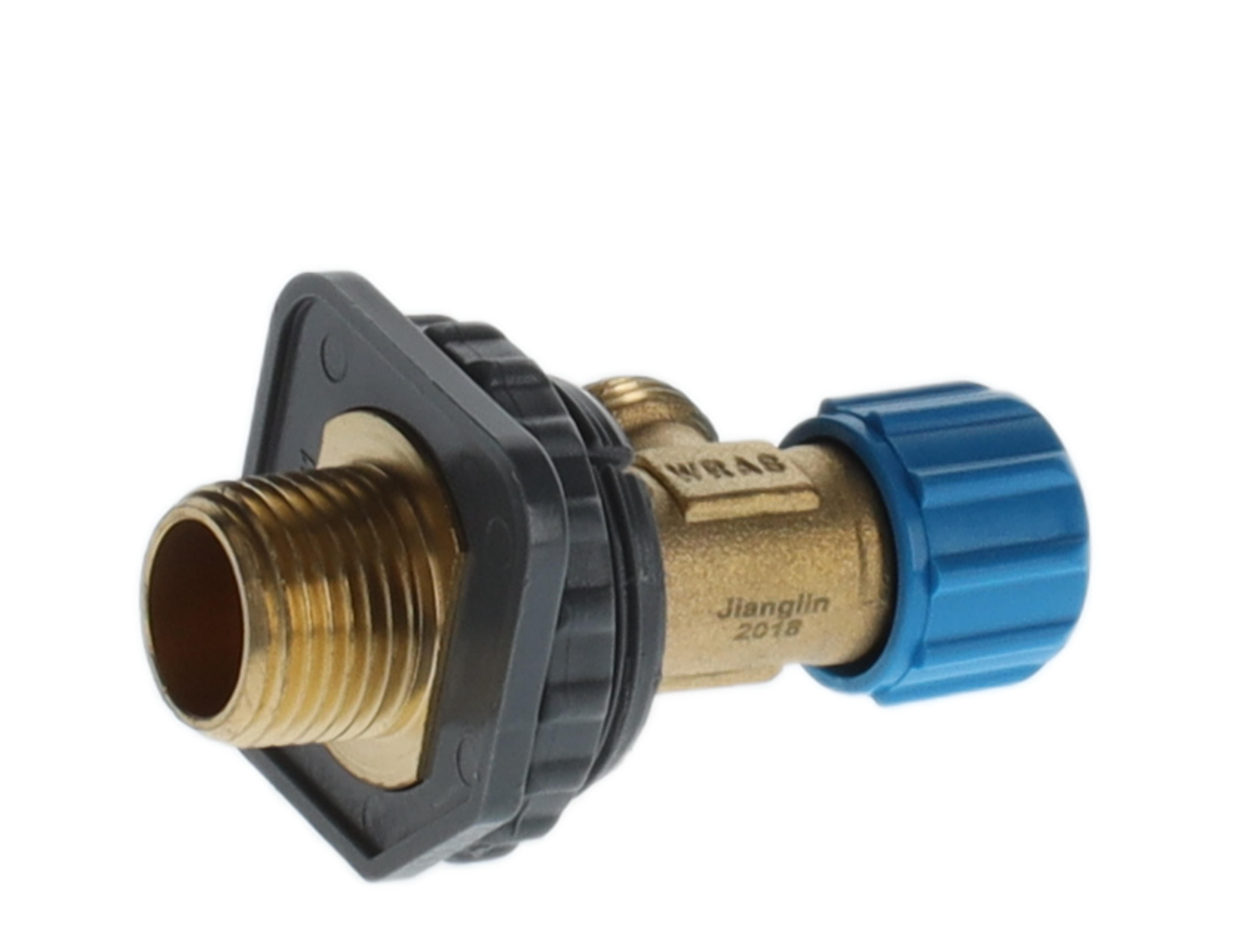

    Villeroy & Boch Spare parts ViConnect Angle valve AUS R 1/2, 43x78mm
    Product designation Angle valve
    Article number 92233900
    to product detail

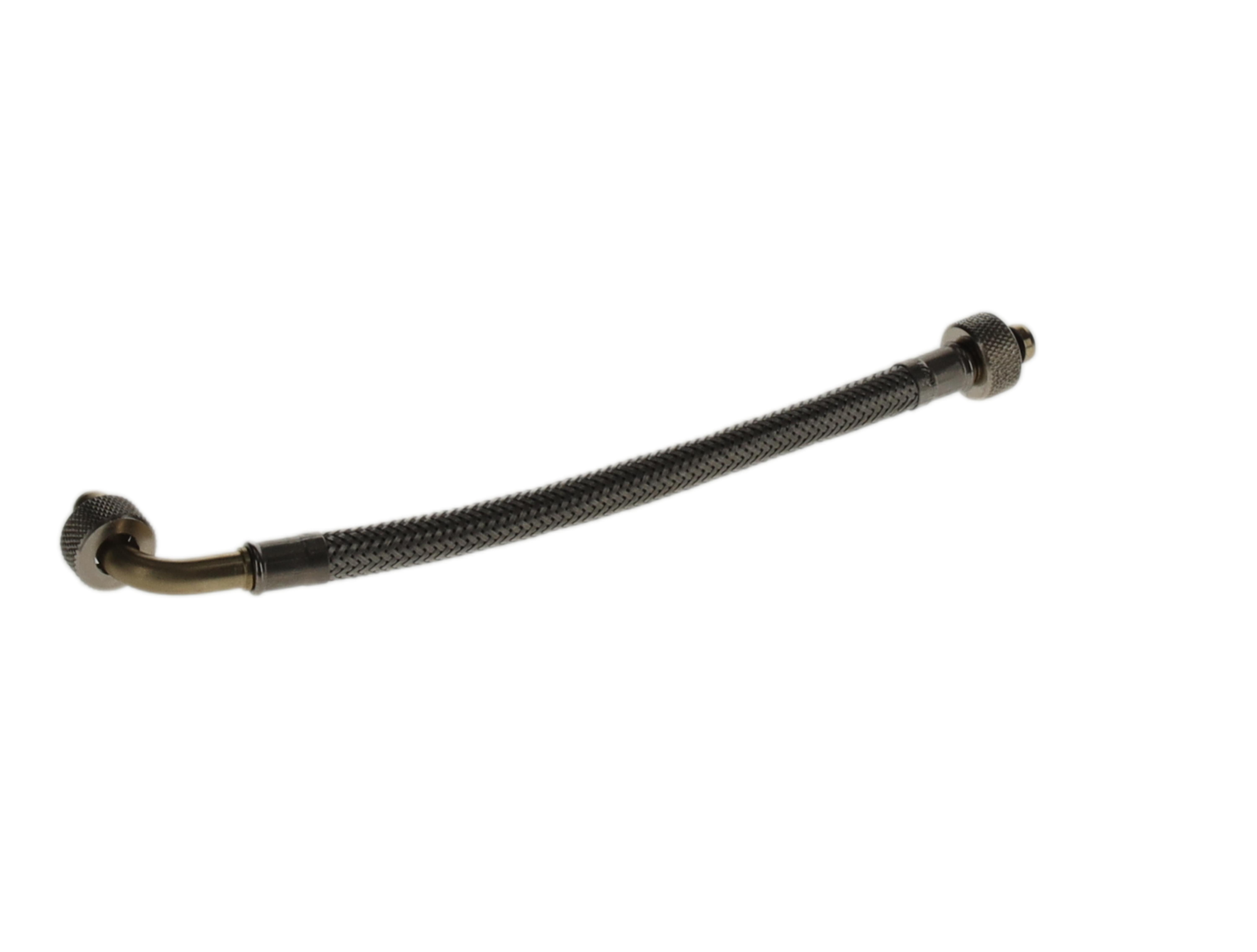

    Villeroy & Boch Spare parts ViConnect Connecting hoses AUS 8 x 235mm, 15x235mm
