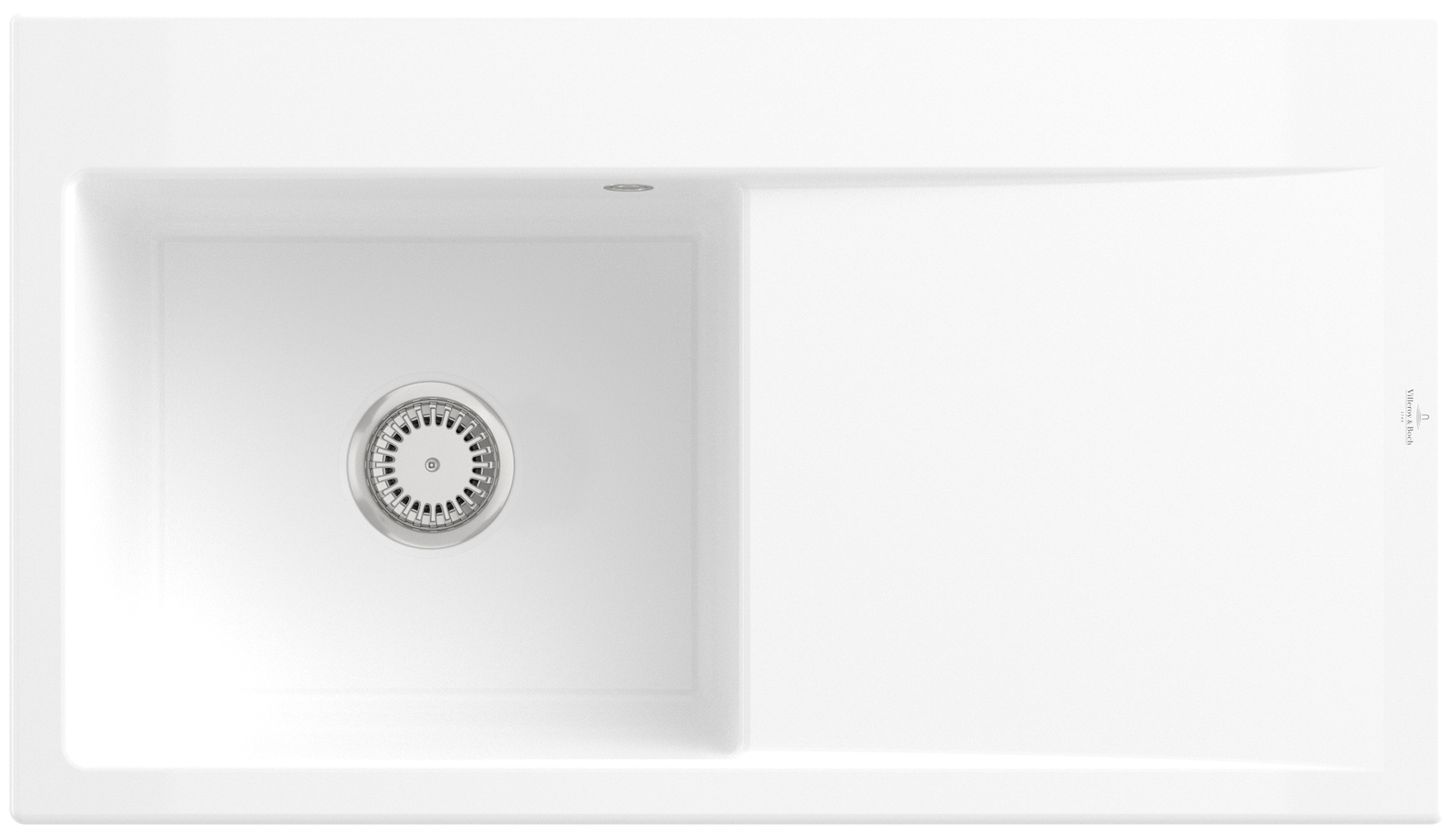

Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus

Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus
Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus
Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus
View

Built-in sink

Subway Style 50

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

335201R1

Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus

SIZE AND SHAPE :
Width in mm
900
Length in mm
510
Height in mm
220
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
surface-mounted installation
Assembly instructions
minimum unit width: 50 cm
Interior depth
200
Material
Ceramic
Colour name
White Alpin CeramicPlus
Other material
Position of main bowl
basin right basin left
Minimum width of vanity unit in mm
50
Diameter of tap hole in mm
35
Cut-out in the worktop
870 mm x 480
Function of the drain fitting
basket strainer waste
Article number:

335201R1

availability:
    Subway Style 50

    Built-in sink

    Technical information
    back

    Technical information

    Article title

    Subway Style 50 Built-in sink included Waste system with basket strainer waste, of Ceramic, 900x510mm, White Alpin CeramicPlus

    Article number

    335201R1

    Assembly / Assembly type

    surface-mounted installation

    Assembly instructions

    minimum unit width: 50 cm

    Scope of delivery

    1 x sink

    1 x basket strainer waste

    Length in mm

    510

    Width in mm

    900

    Height in mm

    220

    Interior depth

    200

    Collection

    Subway Style 50

    Weight in kg

    22,00

    Material

    Ceramic

    Colour name

    White Alpin CeramicPlus

    Other material

    • Sink: Ceramic

    • Grate: Stainless steel

    • Valve: Stainless steel

    EAN number

    4062373797068

    Model number

    335201

    Position of main bowl

    basin right

    basin left

    Minimum width of vanity unit in mm

    50

    Diameter of tap hole in mm

    35

    Cut-out in the worktop

    870 mm x 480

    Function of the drain fitting

    basket strainer waste

    accessories
    back

    accessories

    Villeroy & Boch Accessories Soap dispenser, of Stainless steel, Solid stainless steel
    Collection Accessories
    Product designation Soap dispenser
    Article number 923630LC
    Dimension 167 x 204 x 60 mm
    to product detail
    Villeroy & Boch Accessories Steamer tray 1/3, of Stainless steel, Stainless steel
    Collection Accessories
    Product designation Steamer tray 1/3
    Article number 829906K1
    Dimension 176 x 325 x 40 mm
    to product detail
    Villeroy & Boch Accessories Universal cutting board, walnut, of Wood
    Collection Accessories
    Product designation Universal cutting board, walnut
    Article number 8K361000
    Dimension 400 x 544 x 35 mm
    to product detail
    Villeroy & Boch Accessories Cap waste cover, of Stainless steel, Gold
    Collection Accessories
    Product designation Cap waste cover
    Article number 96241503
    Dimension 115 x 115 x 20 mm
    to product detail
    Villeroy & Boch Accessories Soap dispenser, of Stainless steel, Gold
    Collection Accessories
    Product designation Soap dispenser
    Article number 92362003
    Dimension 106 x 273 x 59 mm
    to product detail
    Show more
    Spareparts
    back

    Spareparts

    Villeroy & Boch Accessories Lip-seal
    Collection Accessories
    Product designation Lip-seal
    Article number 92222600
    Dimension 110 x 110 x 15 mm
    to product detail
    Villeroy & Boch Accessories Mastic
    Collection Accessories
    Product designation Mastic
    Article number 94090300
    Dimension 34 x 87 x 31 mm
    to product detail
    downloads
    back

    Installation & assembly

    Cut-out templates

    VB-Subway-Style-50-335201-CT-v00-38578.dxf
    Cut-out templates

    VB-Subway-Style-50-335201-CT-v00-38578.pdf
    Assembly instructions

    VB-Subway-Style-50-335201-II-v00-56655-en.pdf
    Technical drawing

    VB-Subway-Style-50-335201-2D01-v01-37741.pdf

    Planning information

    2-D data

    VB-Subway-Style-50-335201-2D01-v01-37741.dwg
    2-D data

    VB-Subway-Style-50-335201-2D01-v01-37741.dxf
    2-D data

    VB-Subway-Style-50-335201-2D01-v01-37741.eps
    3-D data

    VB-Subway-Style-50-335201-3D01-v00-37802.stp

    Item documentation

    Declaration of Performance (DOP)

    VB-K-YTD-I103-0001-v03-57466.pdf
    Tap hole overview without dimensions

    VB-Subway-Style-50-335201-2D04-v00-37885.eps
    Tap hole overview without dimensions

    VB-Subway-Style-50-335201-2D04-v00-37885.pdf
    Tap hole overview with dimensions

    VB-Subway-Style-50-335201-2D05-v00-38044.pdf
    Exploded-view drawing

    VB-Subway-Style-50-335201-EXPL-v01-56326.pdf
