Technical information
Article title

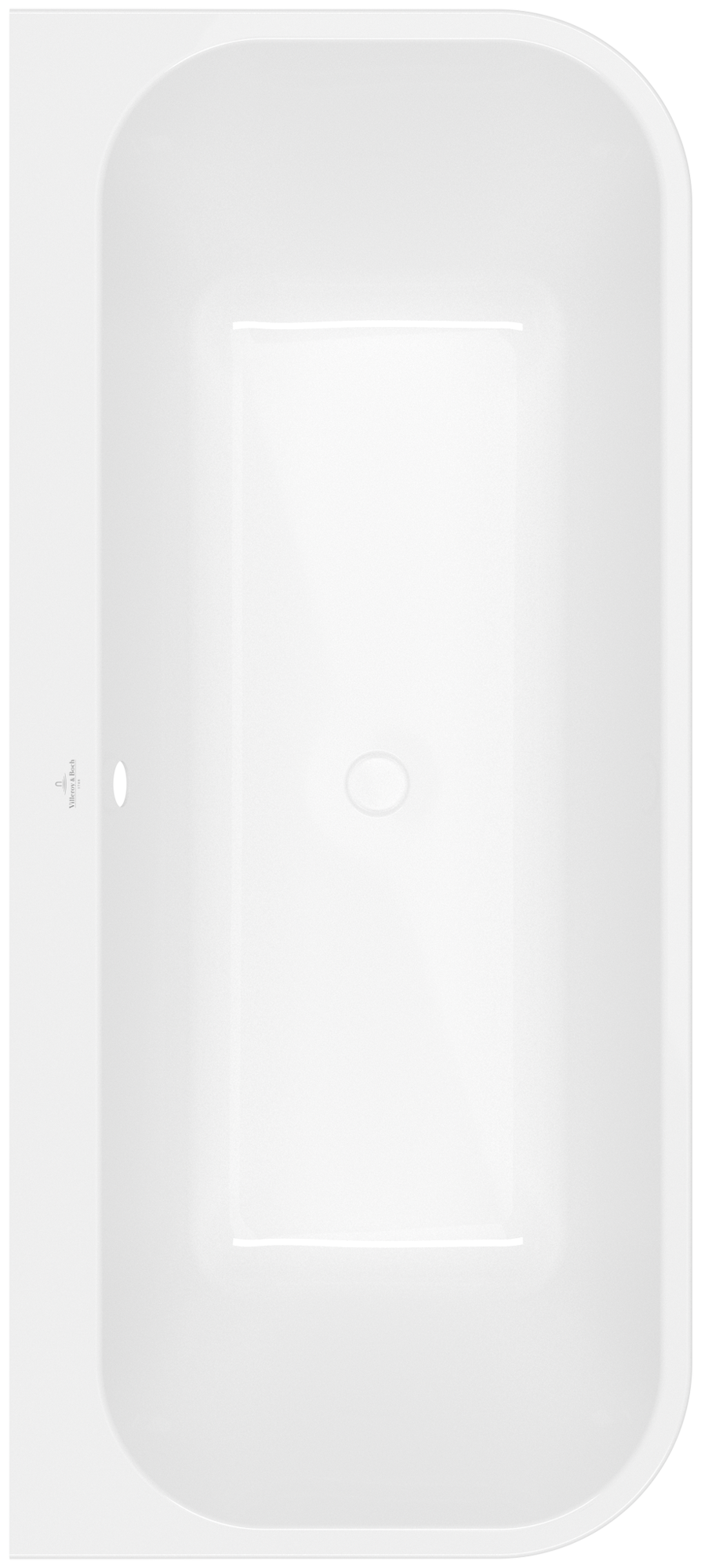

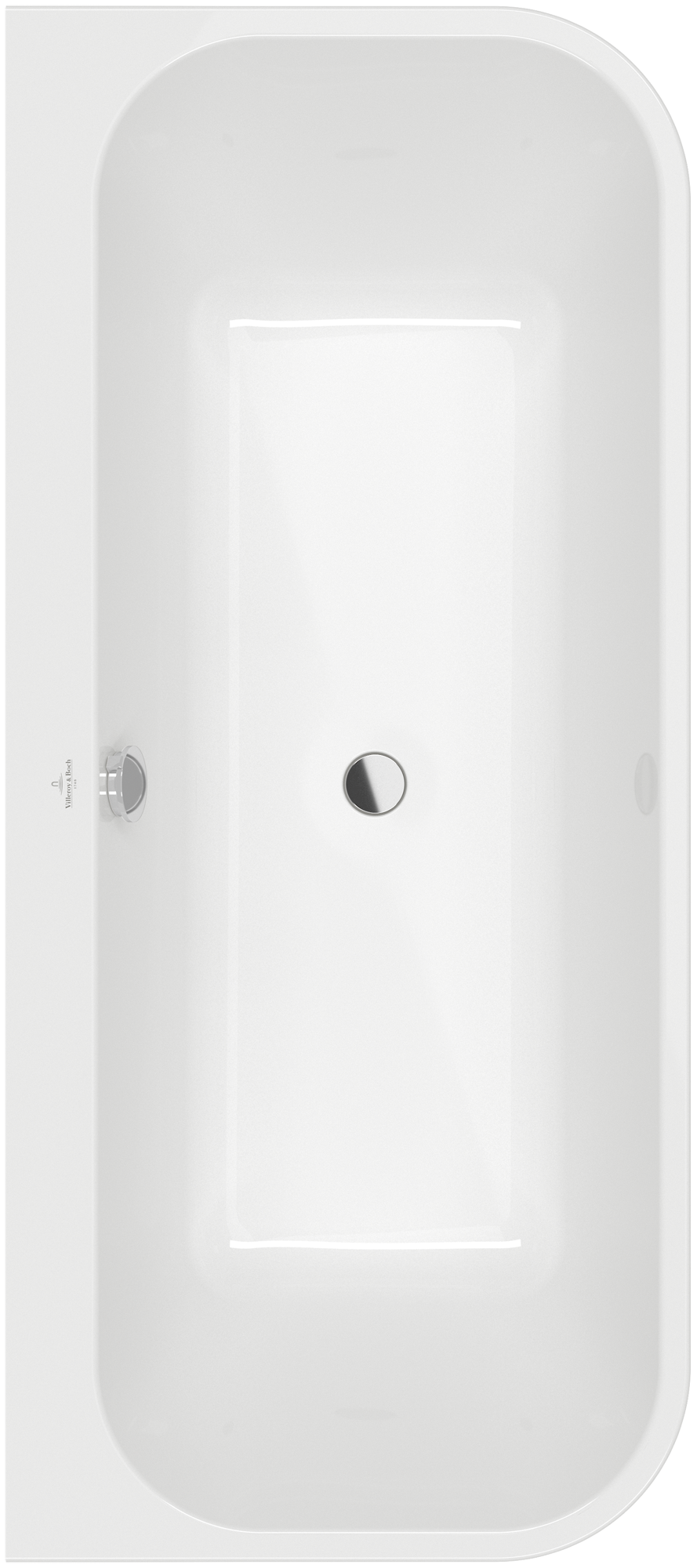

Architectura Wall-facing bath, 1700x750mm, White Alpin
Article number
UBA170ARE9CS00V-01
Assembly / Assembly type
wall-mounted
Assembly instructions
Central positioning of the tap fitting is not possible.
Scope of delivery
1 x rectangular bath
Length in mm
1700
Width in mm
750
Height in mm
575
Installation height
Whirlpool system: 575 mm
Bath with panel: 575 mm
Interior depth
420
Collection
Architectura
Weight in kg
52,00
Outlet / outlet
central outlet
Material
Acrylic
Colour name
White Alpin
With feet/base
No
With panel
No
With overflow
Yes
Water content
360
Capacity incl. 1 pers
136
Number of people
2
For handle mounting
No
Anti-slip class
Anti-slip class A
Following systems are available
[AC] Airpools
[AE] Airpools
Seat unit
2
EAN number
4065467440475
Model number
UBA170ARE9CS00V
