Rectangular bath

Oberon

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

UBQ170OBE2V-01

Oberon Rectangular bath, 1700x750mm, White Alpin

SIZE AND SHAPE :
Width in mm
750
Length in mm
1700
Height in mm
475
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
built-in installation
Installation height
Bath: 585 - 635 mm Whirlpool system: 610 - 650 mm Profibox 2.0 without system: 585 - 585 mm Profibox 2.0 incl. System: 625 - 625 mm
Interior depth
450
Outlet / outlet
outlet at the foot end
Material
Quaryl®
Colour name
White Alpin
With feet/base
Yes
With panel
No
With overflow
Yes
Water content
210
Capacity incl. 1 pers
135
Number of people
1
For handle mounting
Yes
Anti-slip class
Anti-slip class A
Following systems are available
[AC] Airpools [AE] Airpools [AP] Specialpools [CC] Combipools [CE] Combipools [HC] Hydropools [HE] Hydropools
Seat unit
1
Article number:

UBQ170OBE2V-01

availability:
    Oberon

    Rectangular bath

    Technical information
    back

    Technical information

    Article title

    Oberon Rectangular bath, 1700x750mm, White Alpin

    Article number

    UBQ170OBE2V-01

    Assembly / Assembly type

    built-in installation

    Scope of delivery

    1 x rectangular bath

    2 x bath support frame (self-adhesive), adjustable from 130 - 180 mm

    Ordering information

    Overflow hole possible in one of 3 different positions. Holesaw (for drilling the overflow hole) included.

    Length in mm

    1700

    Width in mm

    750

    Height in mm

    475

    Installation height

    Bath: 585 - 635 mm

    Whirlpool system: 610 - 650 mm

    Profibox 2.0 without system: 585 - 585 mm

    Profibox 2.0 incl. System: 625 - 625 mm

    Interior depth

    450

    Collection

    Oberon

    Weight in kg

    41,50

    Outlet / outlet

    outlet at the foot end

    Material

    Quaryl®

    Colour name

    White Alpin

    With feet/base

    Yes

    With panel

    No

    With overflow

    Yes

    Water content

    210

    Capacity incl. 1 pers

    135

    Number of people

    1

    For handle mounting

    Yes

    Anti-slip class

    Anti-slip class A

    Following systems are available

    [AC] Airpools

    [AE] Airpools

    [AP] Specialpools

    [CC] Combipools

    [CE] Combipools

    [HC] Hydropools

    [HE] Hydropools

    Seat unit

    1

    EAN number

    8712335286944

    Model number

    UBQ170OBE2V

    accessories
    back

    accessories

    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
    to product detail
    Villeroy & Boch Accessories Waste/overflow combination, 200x315x130mm, White Alpin
    Collection Accessories
    Product designation Waste/overflow combination
    Article number U909604-01
    Dimension 200 x 315 x 130 mm
    to product detail
    Villeroy & Boch Accessories Outlet/overflow fitting with water inlet, 200x465x130mm, White Alpin
    Collection Accessories
    Product designation Outlet/overflow fitting with water inlet
    Article number U909603-01
    Dimension 200 x 465 x 130 mm
    to product detail
    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    to product detail
    Show more
    Suitable products
    back

    Suitable products

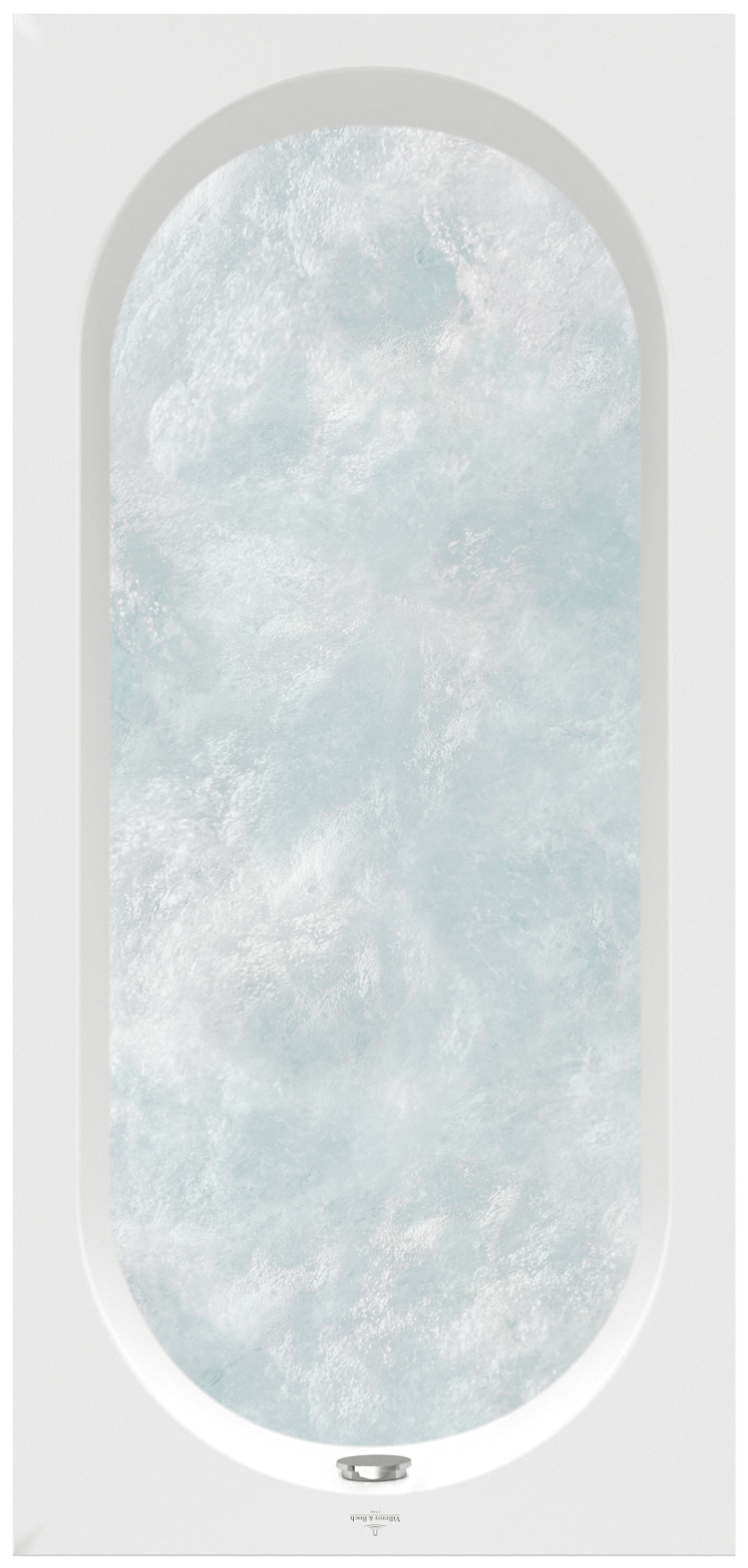

    Villeroy & Boch Oberon Airpool Comfort (AC) with whirlpool system Airpool Comfort (AC), 1700x750mm White Alpin
