Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin

Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin
View

Vanity washbasin

Skyla

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

5A51C401

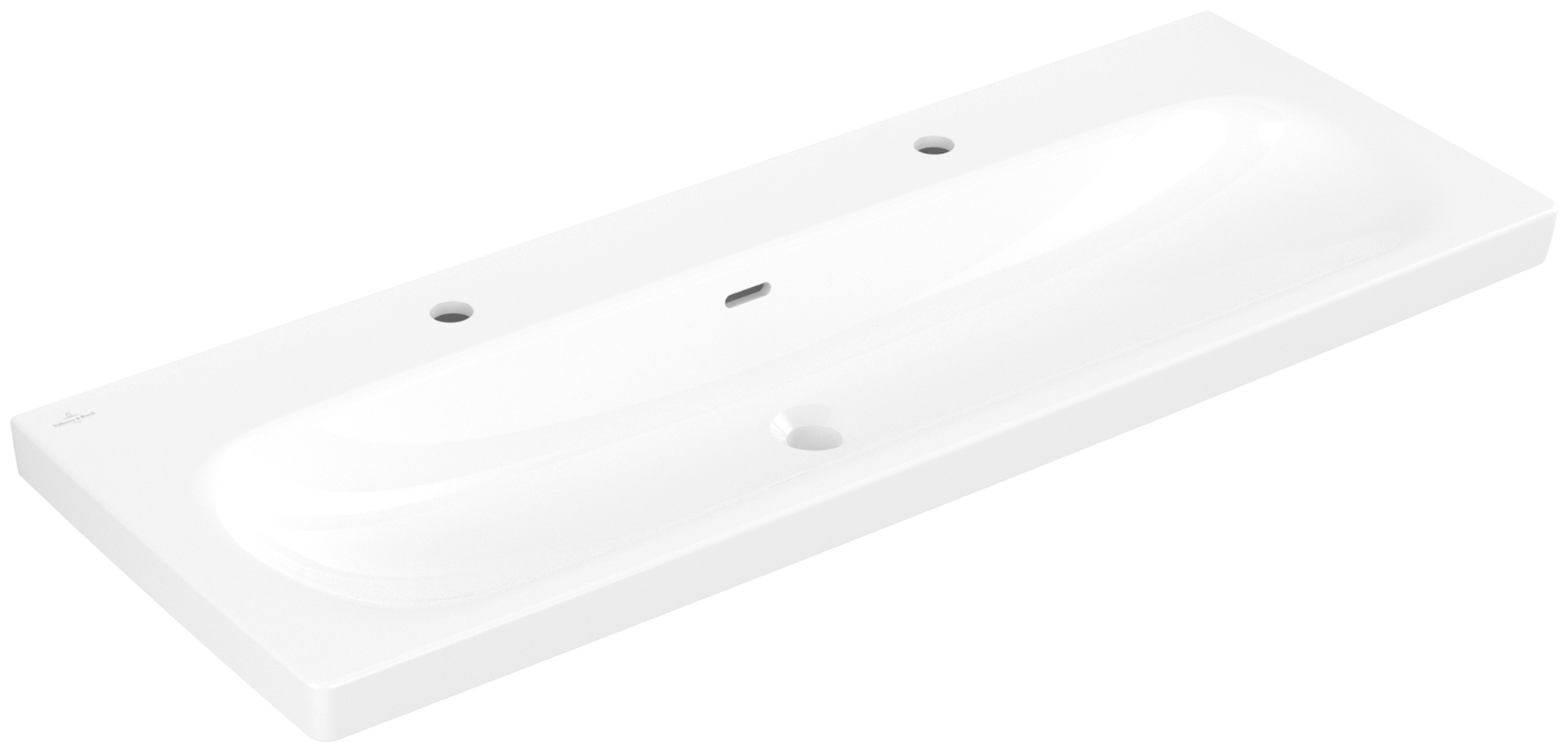

Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin

SIZE AND SHAPE :
Width in mm
1200
Length in mm
460
Height in mm
160
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
wall-mounted
Interior depth
120
Number of tap holes punched through
2
Number of tap holes pre-drilled
4
Position of drill hole
Suitable for two hole tap fittings, tap holes punched through
Suitable for
two 3-hole tap fittings Matching Villeroy&Boch furniture
Material
TitanCeram
Colour name
White Alpin
With TitanGlaze
No
With overflow
Yes
Article number:

5A51C401

availability:
    Skyla

    Vanity washbasin

    Technical information
    back

    Technical information

    Article title

    Skyla Vanity washbasin, 1200x460x160mm, with overflow, White Alpin

    Article number

    5A51C401

    Assembly / Assembly type

    wall-mounted

    Scope of delivery

    1 x vanity washbasin

    Ordering information

    Optionally available: Outlet valve with ceramic cover.

    Length in mm

    460

    Width in mm

    1200

    Height in mm

    160

    Interior depth

    120

    Collection

    Skyla

    Weight in kg

    35,40

    Number of tap holes punched through

    2

    Number of tap holes pre-drilled

    4

    Position of drill hole

    Suitable for two hole tap fittings, tap holes punched through

    Suitable for

    two 3-hole tap fittings

    Matching Villeroy&Boch furniture

    Material

    TitanCeram

    Colour name

    White Alpin

    With TitanGlaze

    No

    With overflow

    Yes

    EAN number

    4062373943809

    Model number

    5A51C4

    accessories
    back

    accessories

    Villeroy & Boch ViConnect installation systems Washbasin installation element, for Dry-wall construction, 525x75x1120mm
    Collection ViConnect installation systems
    Product designation Washbasin installation element
    Article number 92214900
    Dimension 525 x 1120 x 135 mm
    to product detail
    Villeroy & Boch Subway 2.0 Trap cover, 315x200x290mm, White Alpin
    Collection Subway 2.0
    Product designation Trap cover
    Article number 52440001
    Dimension 315 x 200 x 290 mm
    to product detail
    Suitable products
    back

    Suitable products

    Villeroy & Boch Skyla Vanity unit, 1 pull-out compartment, 2 pull-out compartments, 1172x436x439mm, Body: Nordic Oak, Front: Nordic Oak
    Collection Skyla
    Product designation Vanity unit
    Article number C79200VJ
    Dimension 1172 x 436 x 439 mm
    to product detail
    Villeroy & Boch Skyla Vanity unit, 1 pull-out compartment, 2 pull-out compartments, 1172x596x439mm, Body: Nordic Oak, Front: Nordic Oak
    Collection Skyla
    Product designation Vanity unit
    Article number C80000VJ
    Dimension 1172 x 596 x 439 mm
    to product detail
    downloads
    back

    Installation & assembly

    Technical drawing

    VB-Skyla-5A51C4-2D01-v00-70809.pdf

    Planning information

    2-D data

    VB-Skyla-5A51C4-2D01-v00-70809.dwg
    2-D data

    VB-Skyla-5A51C4-2D01-v00-70809.dxf
    2-D data

    VB-Skyla-5A51C4-2D01-v00-70809.eps

    Item documentation

    Declaration of Performance (DOP)

    VB-S-YTD-A113-0001-v15-57457.pdf
