C577L1VE

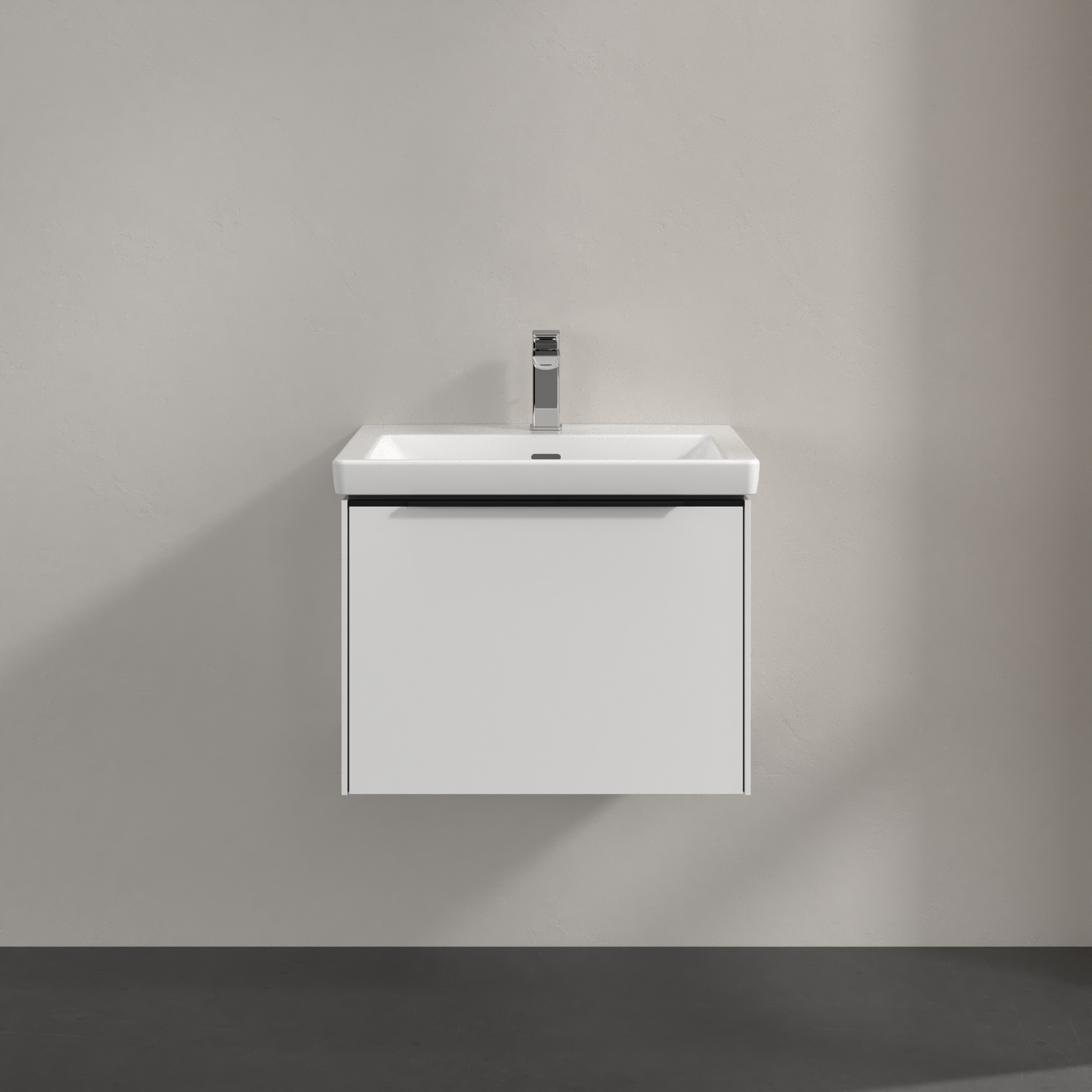

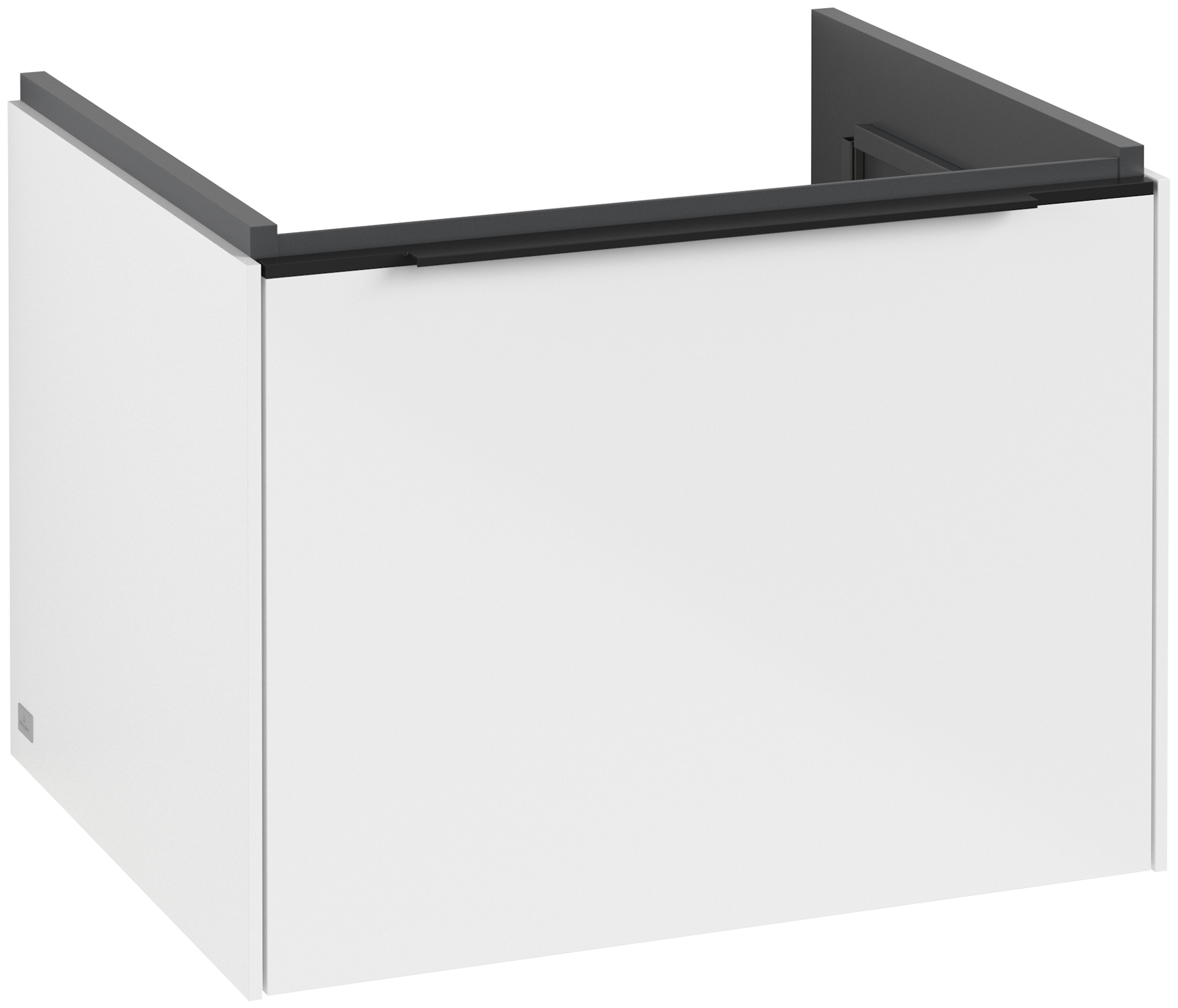

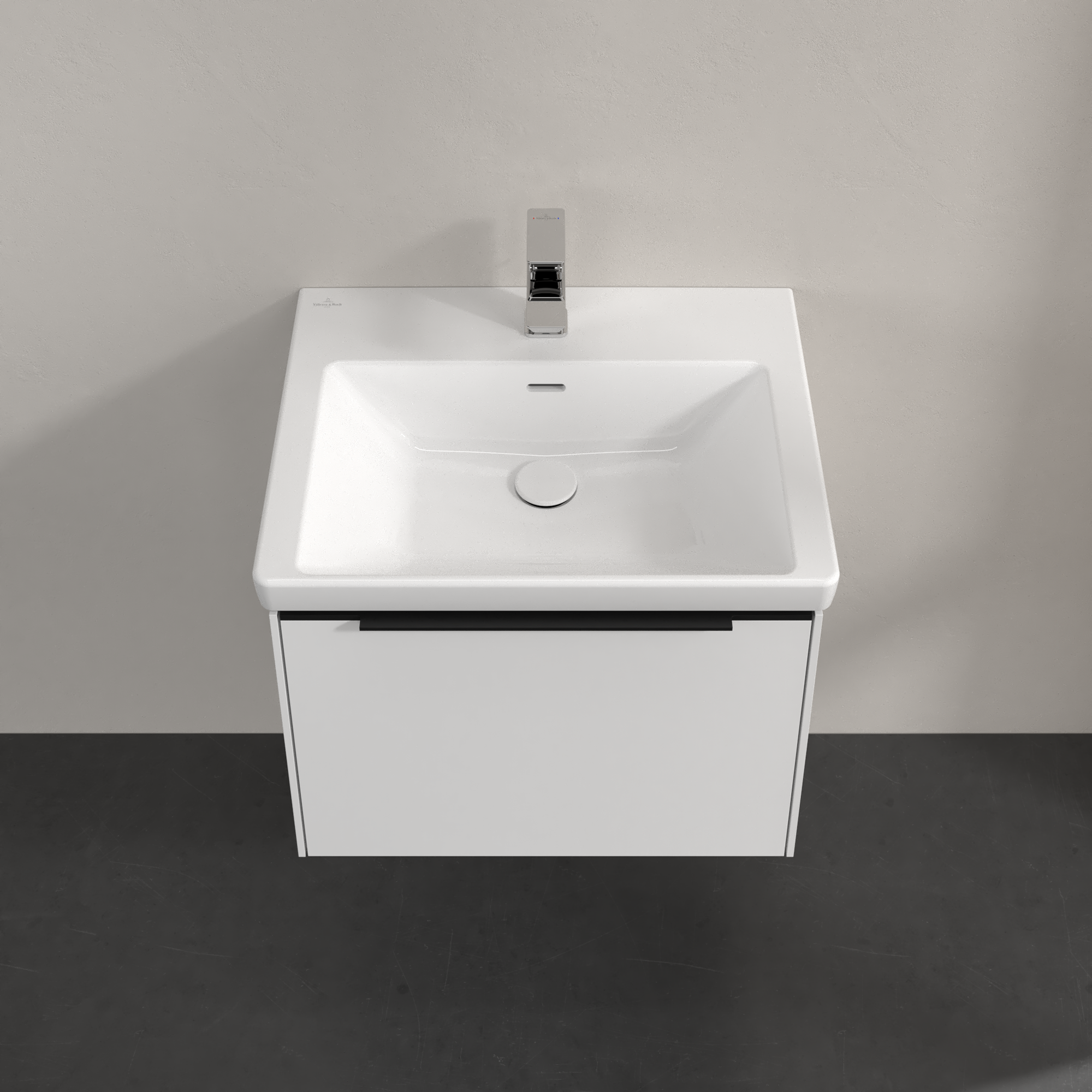

Subway 3.0 Vanity unit, with lighting, 1 pull-out compartment, 462x429x572mm, Body: Brilliant White, Front: Brilliant White

SIZE AND SHAPE :
Width in mm
572
Height in mm
429
Form
Angular
COLOUR AND SURFACE :
Colour designation
Brilliant White
Colour designation of front/body
Brilliant White
PROPERTIES :
Assembly / Assembly type
wall-mounted
Type of opening
1 pull-out compartment
Equipment

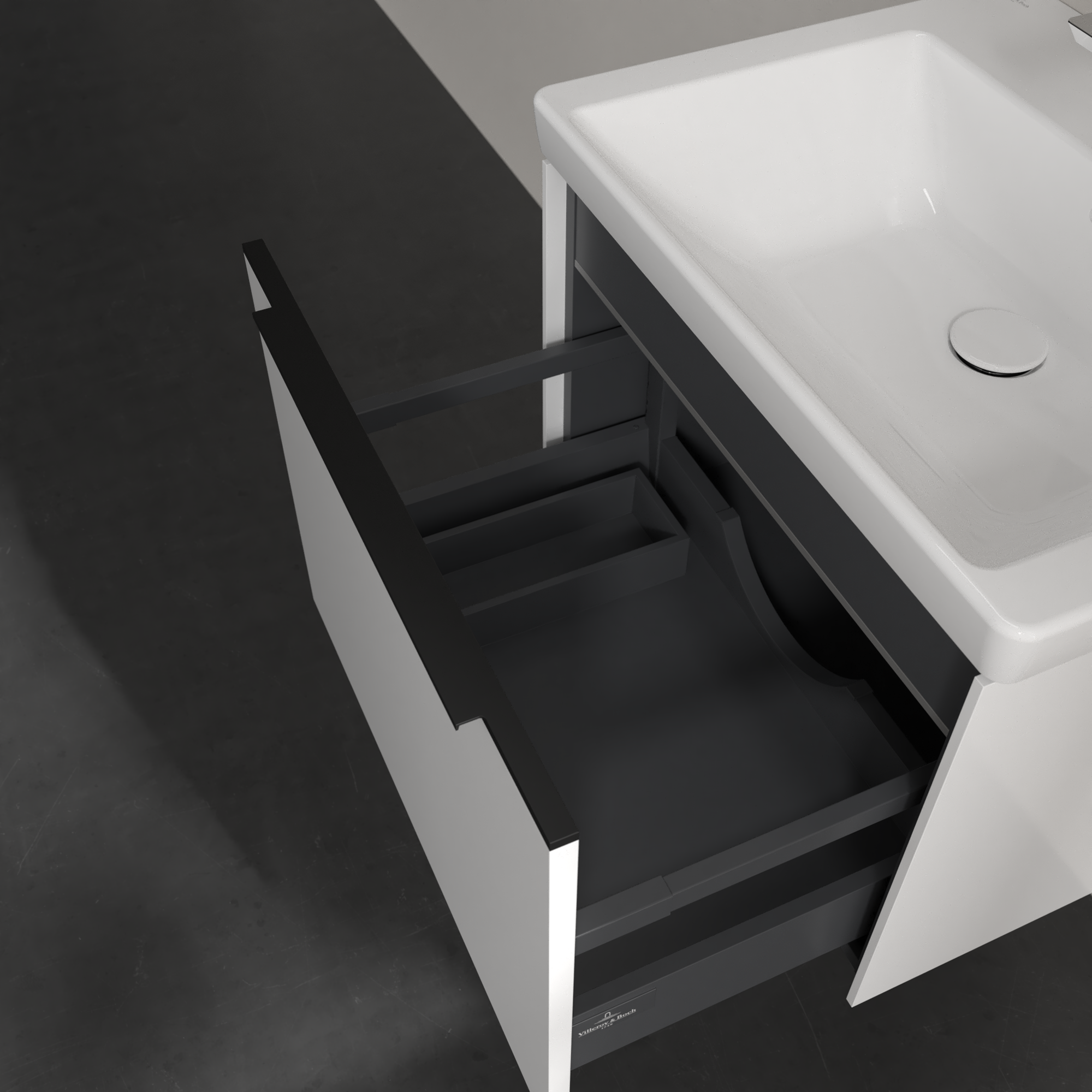

1 x pull-out compartment with non-slip mat 1 x accessory dish (small)
Position of washbasin
washbasin on the middle
Depth in mm
462
Depth with handle mm
478
Depth without handle mm
462
Suitable for
selected vanity washbasins
Function
Colour name
Brilliant White
Material front
Chipboard
Surface of front
glossy
Material body
Chipboard
Surface of body
glossy
Other material

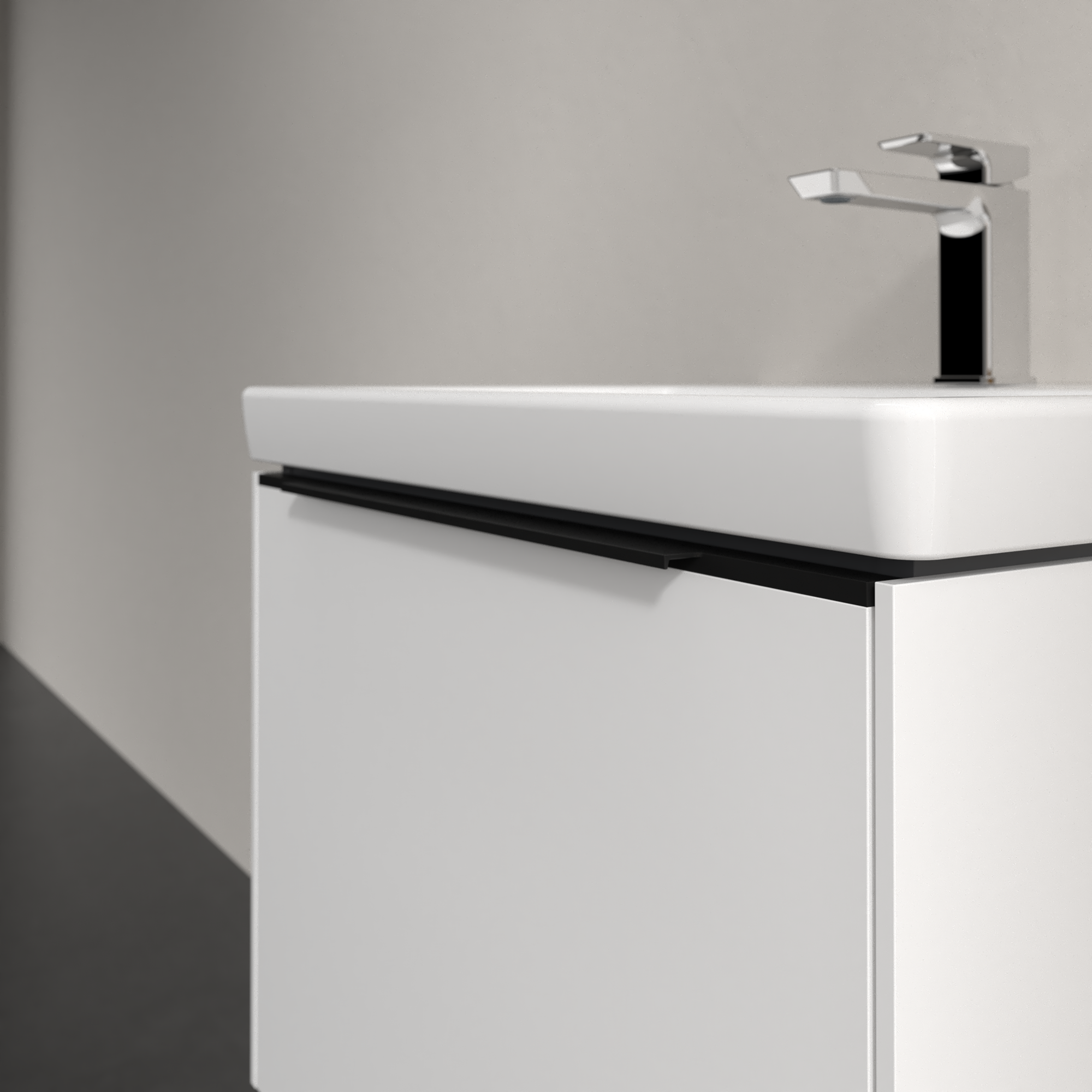

Handle: aluminium
Other surfaces
Handle: matt
Operating mode
Mains-operated
Energy detection
This light contains replaceable LED lamps. The lamps in the light can be replaced.
Lighting
2x LED
Power of lamp
1 x LED / 3,6 W, 1 x LED / 6 W
Light colour (designation & colour temperature)
4000 K (neutral white)
Lighting control
when opening the drawer, with sensor dimmer, dimmable
Degree of protection
IP 44
Type of handles
Handle
Lightingvariants

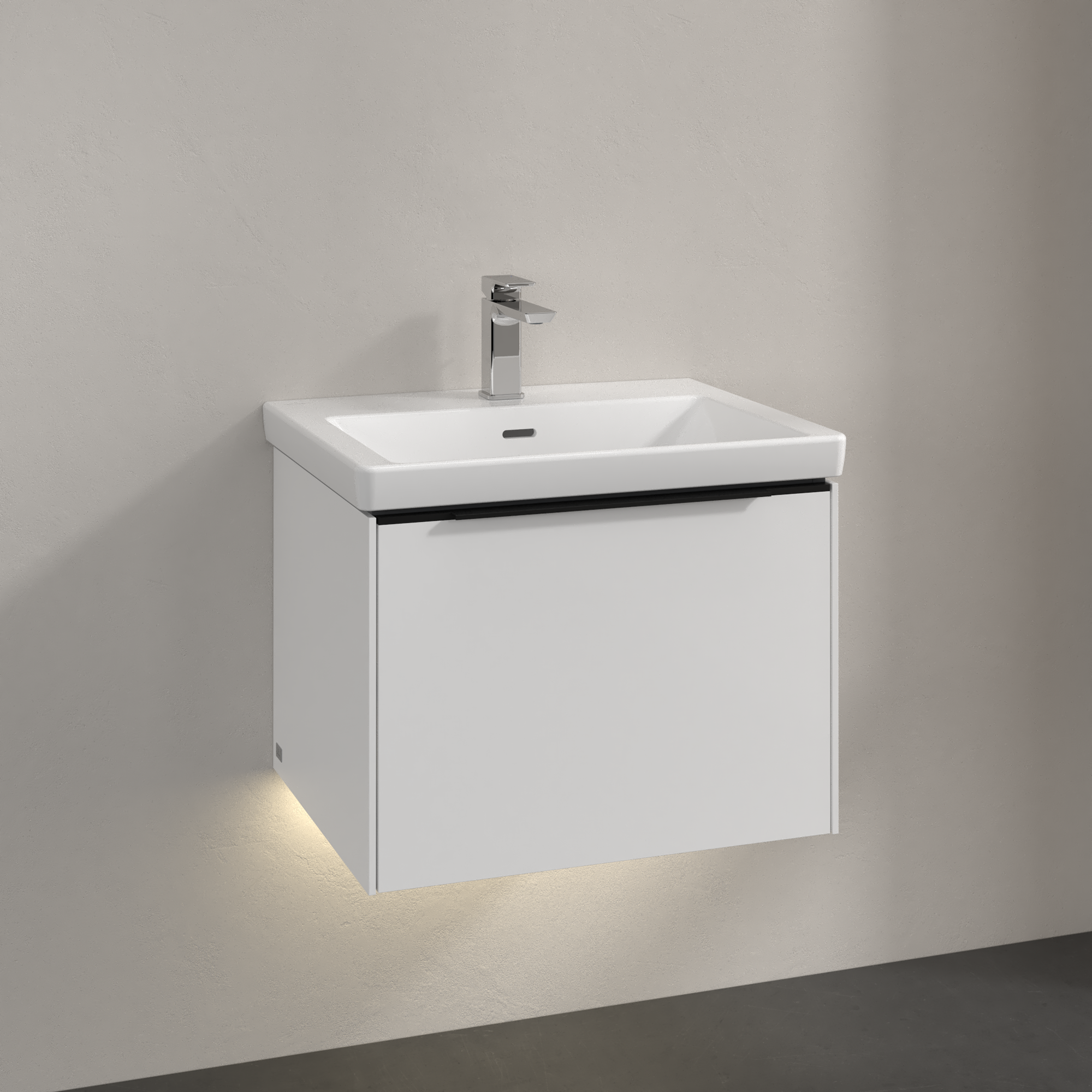

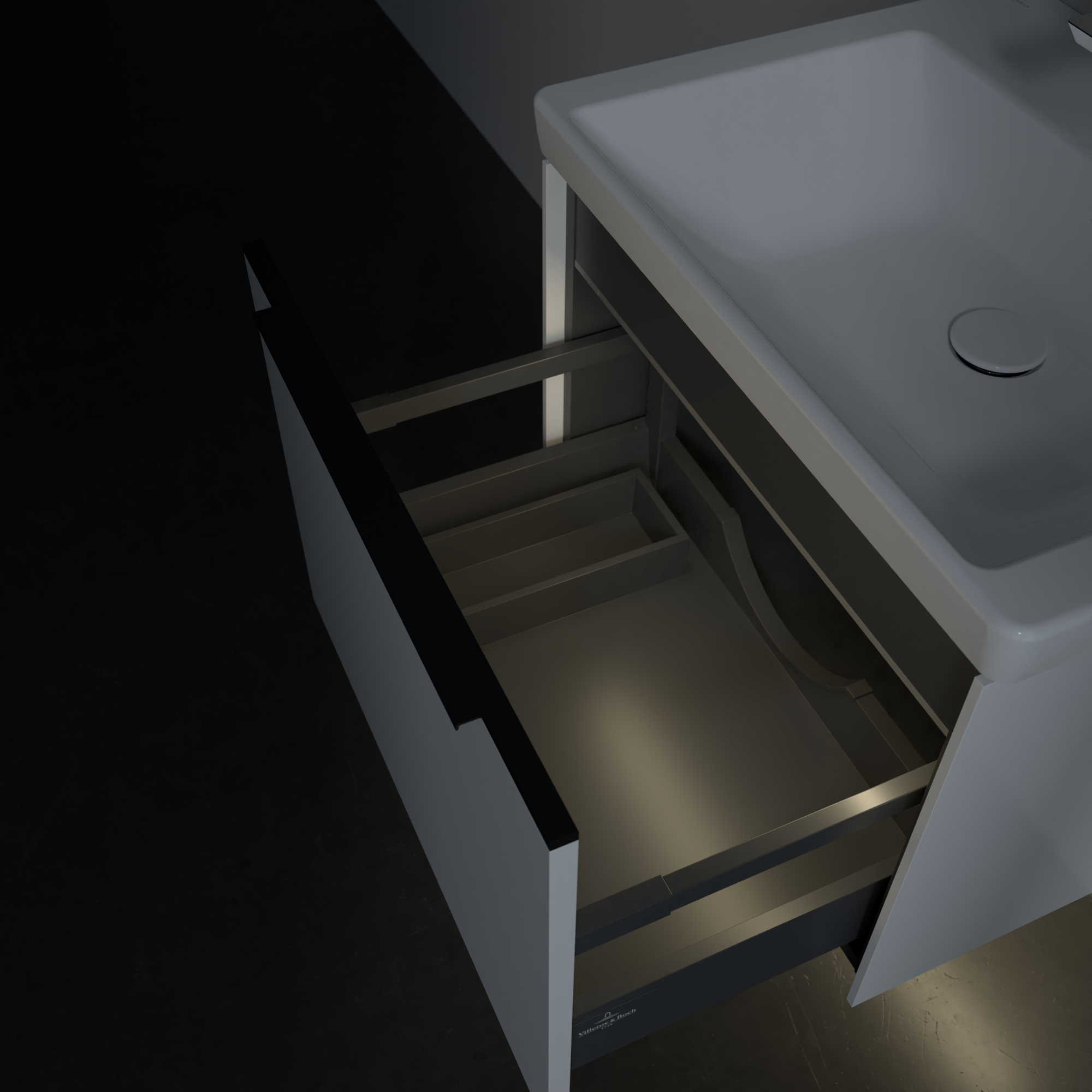

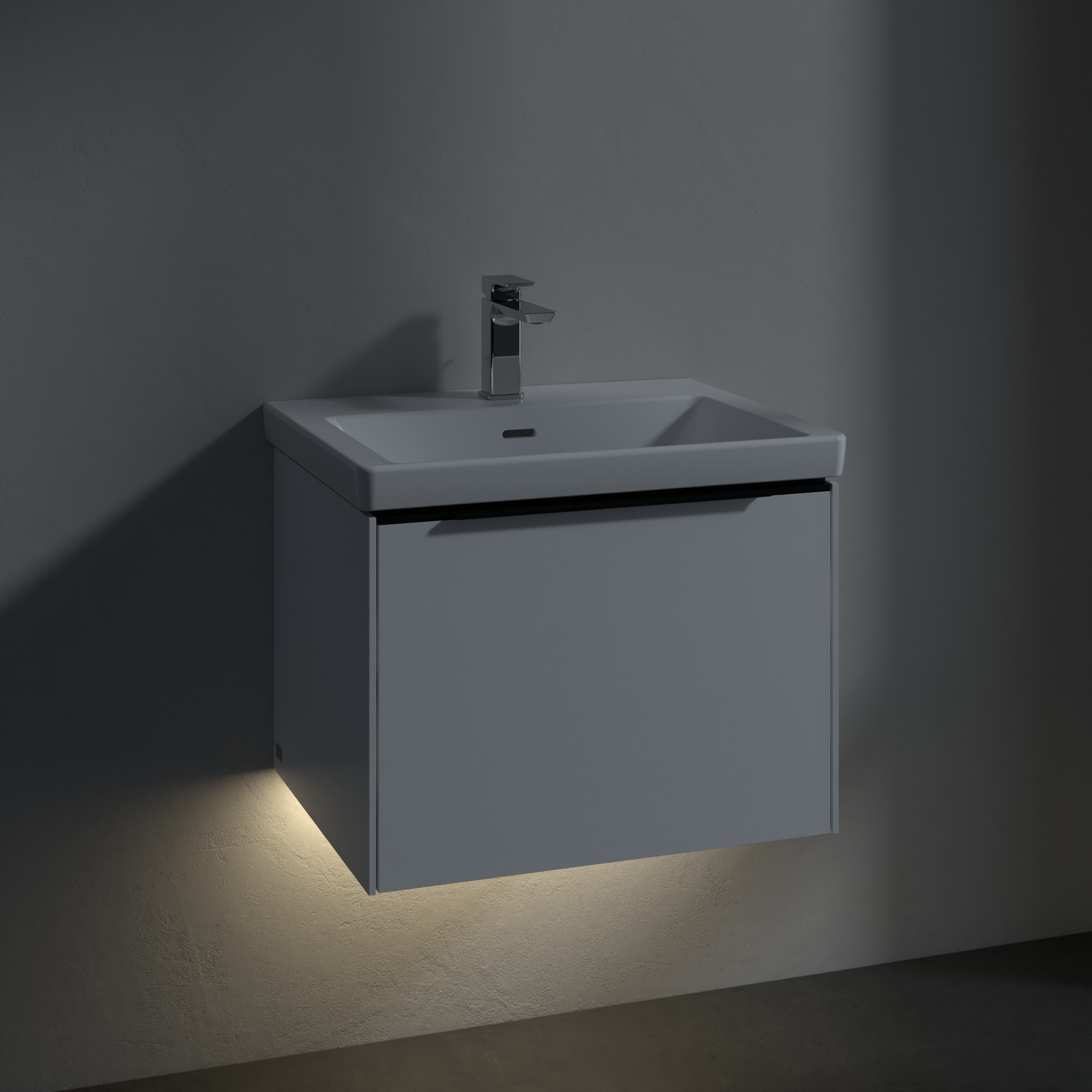

with LED floor lighting with LED pull-out lighting
Article number:

C577L1VE

availability:
    Subway 3.0

    Vanity unit

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Vanity unit, with lighting, 1 pull-out compartment, 462x429x572mm, Body: Brilliant White, Front: Brilliant White

    Article number

    C577L1VE

    Assembly / Assembly type

    wall-mounted

    Type of opening

    1 pull-out compartment

    Equipment

    1 x pull-out compartment with non-slip mat

    1 x accessory dish (small)

    Scope of delivery

    1 x vanity unit

    1 x fastening set

    Position of washbasin

    washbasin on the middle

    Depth in mm

    462

    Width in mm

    572

    Height in mm

    429

    Depth with handle mm

    478

    Depth without handle mm

    462

    Collection

    Subway 3.0

    Weight in kg

    20,23

    express delivery

    No

    Suitable for

    selected vanity washbasins

    Function

    • with automatic lowering mechanism (SoftClosing)

    • with lighting

    Colour name

    Brilliant White

    Material front

    Chipboard

    Surface of front

    glossy

    Material body

    Chipboard

    Surface of body

    glossy

    Other material

    Handle: aluminium

    Other surfaces

    Handle: matt

    Operating mode

    Mains-operated

    Energy detection

    This light contains replaceable LED lamps.

    The lamps in the light can be replaced.

    Lighting

    2x LED

    Power of lamp

    1 x LED / 3,6 W, 1 x LED / 6 W

    Light colour (designation & colour temperature)

    4000 K (neutral white)

    Lighting control

    when opening the drawer, with sensor dimmer, dimmable

    Degree of protection

    IP 44

    Type of handles

    Handle

    EAN number

    4062373830680

    Model number

    C577L1

    Lightingvariants

    with LED floor lighting

    with LED pull-out lighting
