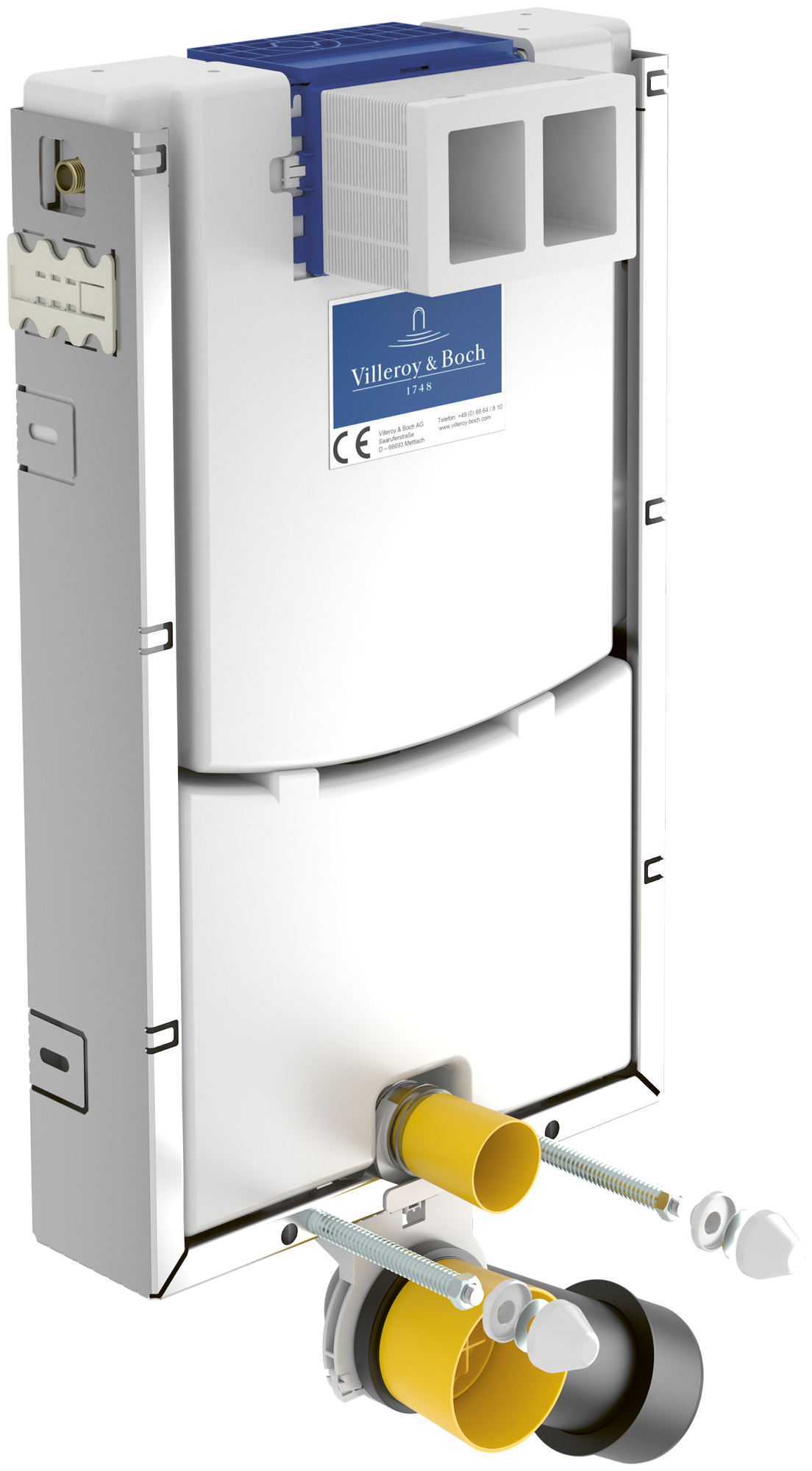

Concealed cistern with metal frame

ViConnect installation systems

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

92247900

ViConnect installation systems Concealed cistern with metal frame, for Brick-wall construction, 447x749x125mm

SIZE AND SHAPE :
Width in mm
447
Length in mm
125
Height in mm
749
COLOUR AND SURFACE :
PROPERTIES :
Assembly / Assembly type
Brick-wall construction
Assembly instructions
installation on or in front of a solid brick wall
Suitable for
for wall-mounted WC
Material
Steel
Technical information
for wall-mounted WC adjustable flush flow control for adaptation to rimless toilet bowls Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l Pre-set flushing volume 6 / 3 l Range for large flushing volume 4.5 - 7.5 l Range for small flushing volume 3 - 4 l
Article number:

92247900

availability:
    ViConnect installation systems

    Concealed cistern with metal frame

    Technical information
    back

    Technical information

    Article title

    ViConnect installation systems Concealed cistern with metal frame, for Brick-wall construction, 447x749x125mm

    Article number

    92247900

    Assembly / Assembly type

    Brick-wall construction

    Assembly instructions

    installation on or in front of a solid brick wall

    Scope of delivery

    1 x U-shaped element with 6 fastening points

    1 x cistern

    1 x set of fastening materials

    Ordering information

    Please order flush plate separately.

    Length in mm

    125

    Width in mm

    447

    Height in mm

    749

    Collection

    ViConnect installation systems

    Weight in kg

    7,10

    Suitable for

    for wall-mounted WC

    Material

    Steel

    Technical information

    for wall-mounted WC

    adjustable flush flow control for adaptation to rimless toilet bowls

    Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l

    Pre-set flushing volume 6 / 3 l

    Range for large flushing volume 4.5 - 7.5 l

    Range for small flushing volume 3 - 4 l

    EAN number

    4051202340193

    Model number

    922479
