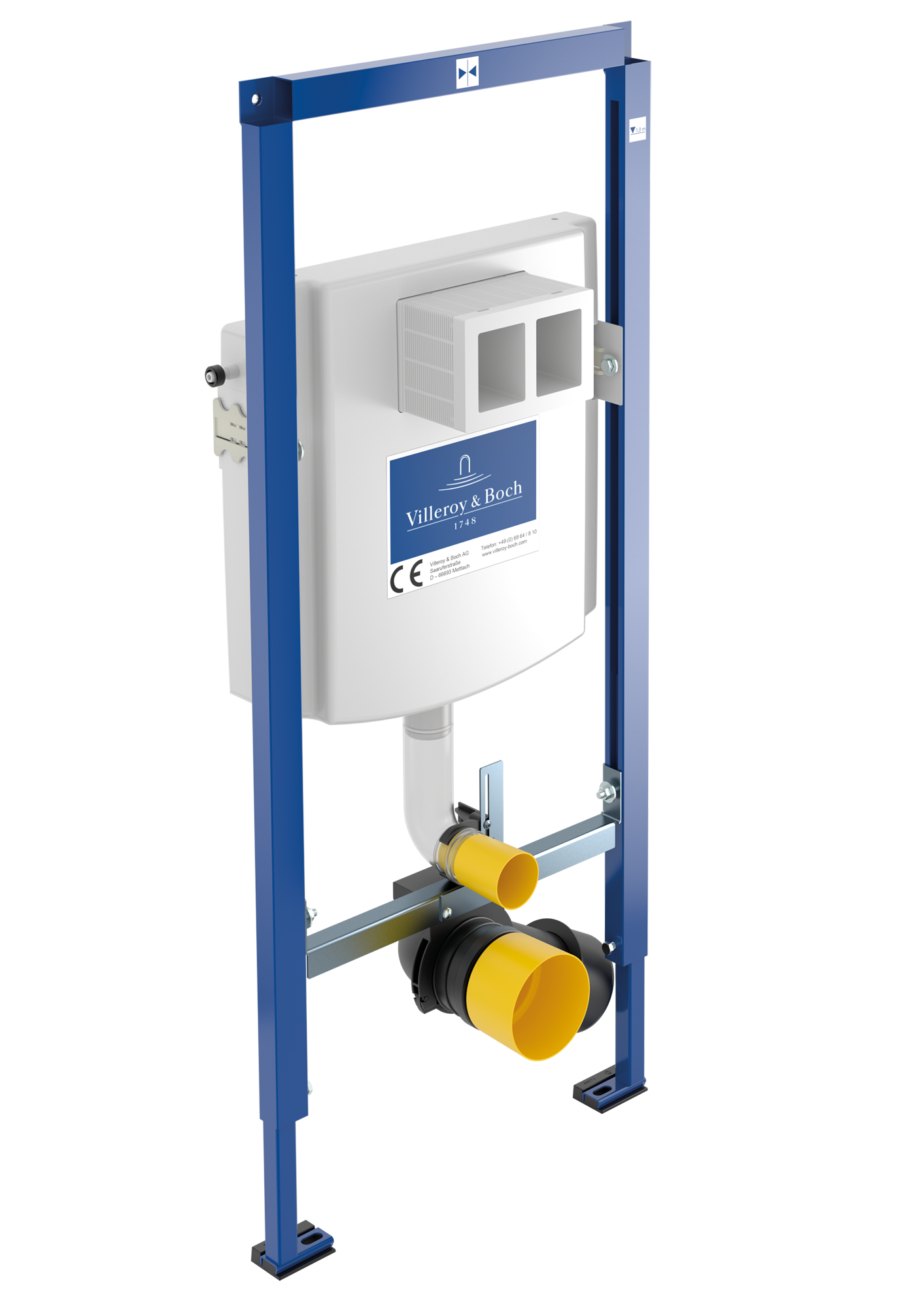

ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x1120x135mm

92215400

Dry-wall construction

for covering with plasterboard

installation on a solid brick wall, in dry-wall constructions etc.

adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm

depth adjustment front edge of element: 135-205 mm

1 x installation system

1 x cistern

1 x installation kit

Please order flush plate separately.

135

525

1120

ViConnect installation systems

10,85

Steel

for floor-standing toddler’s and children’s toilets

Adjustment of the level of the concealed cistern to a height suitable for children and toddlers

flushing pipe bend, can be shortened

adjustable toilet U-bend height

Pre-set flushing volume 6 / 3 l

Range for large flushing volume 4.5 - 7.5 l

Range for small flushing volume 3 - 4 l

Can be combined with Contour 21 from Ideal Standard

4051202497187

922154
