Technical information
Article title

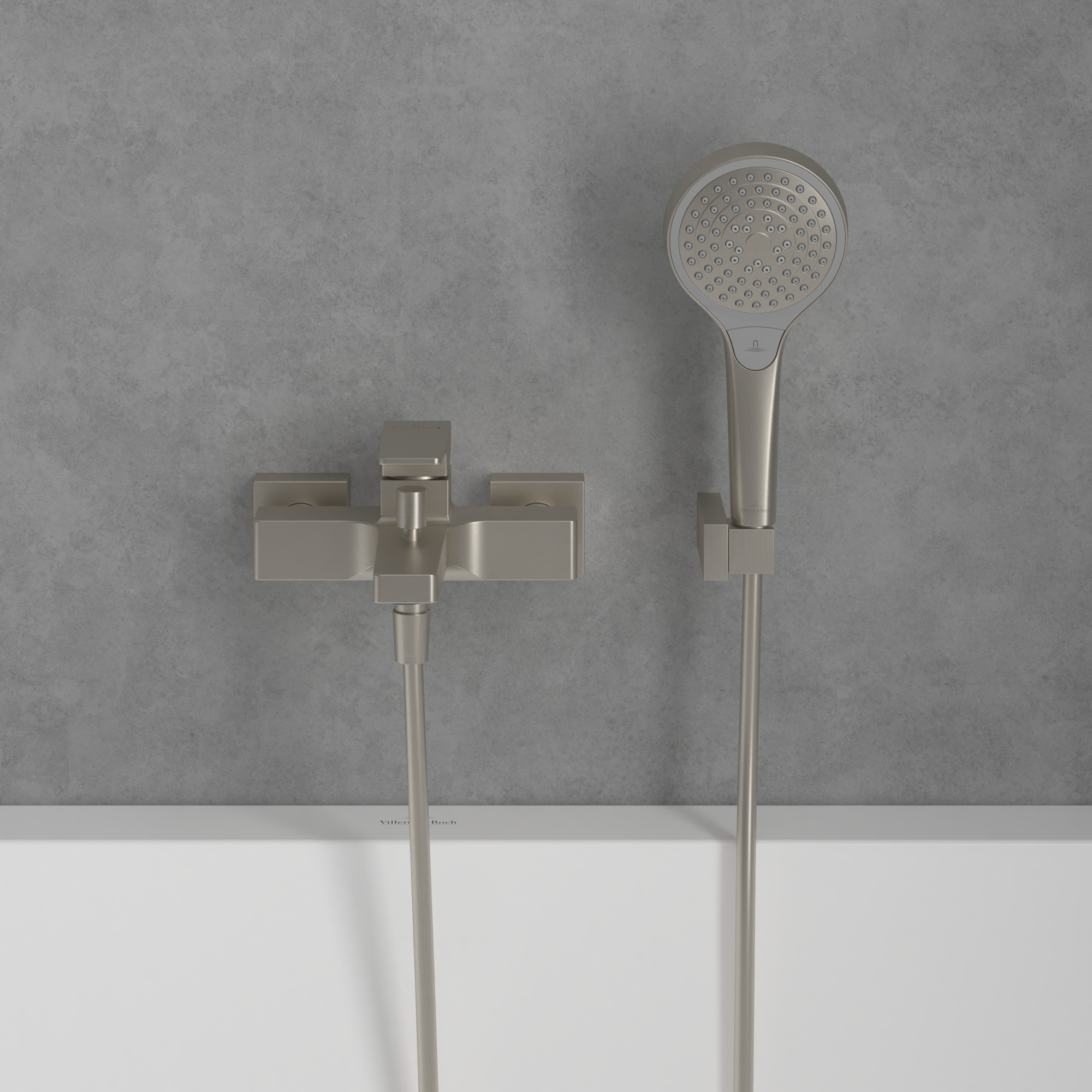

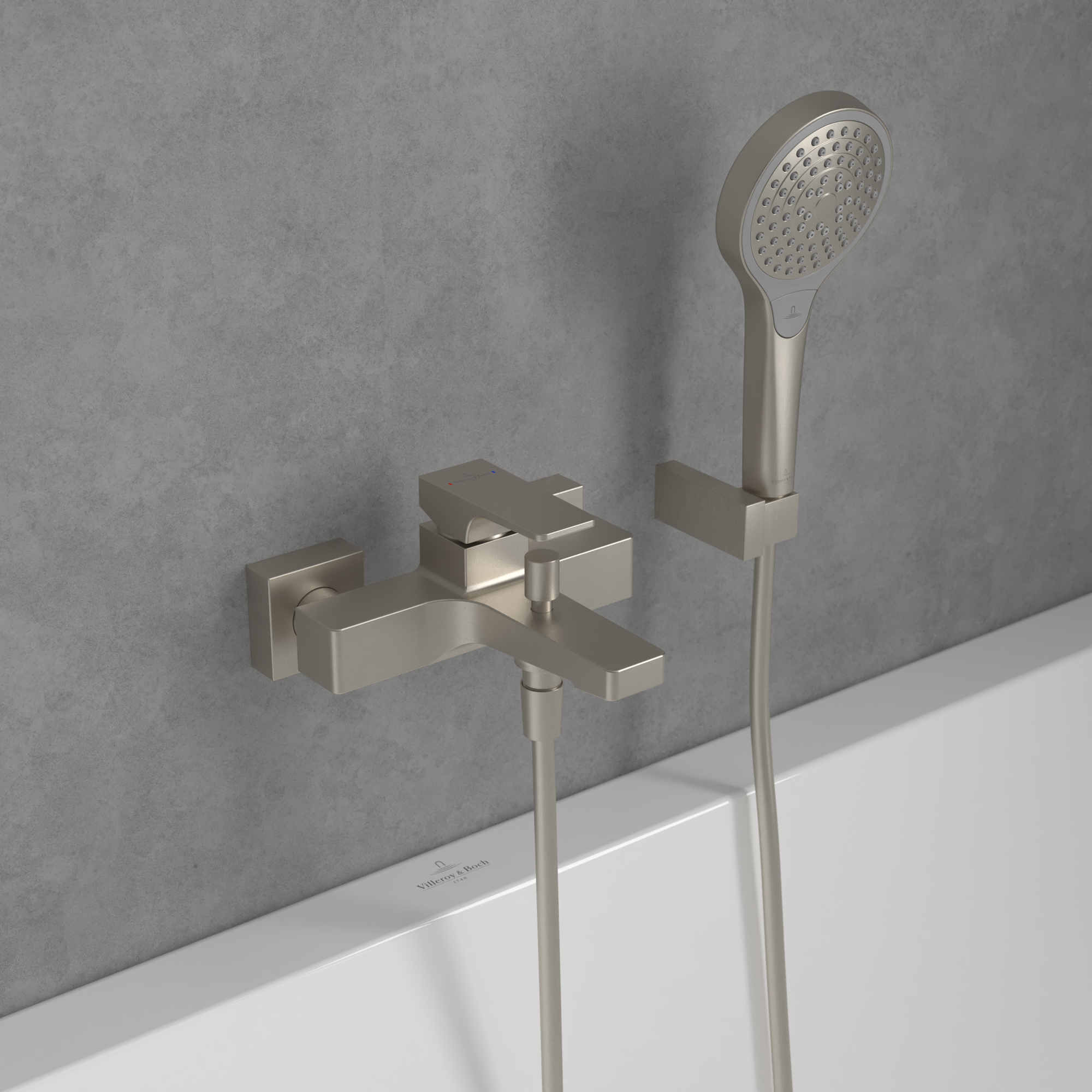

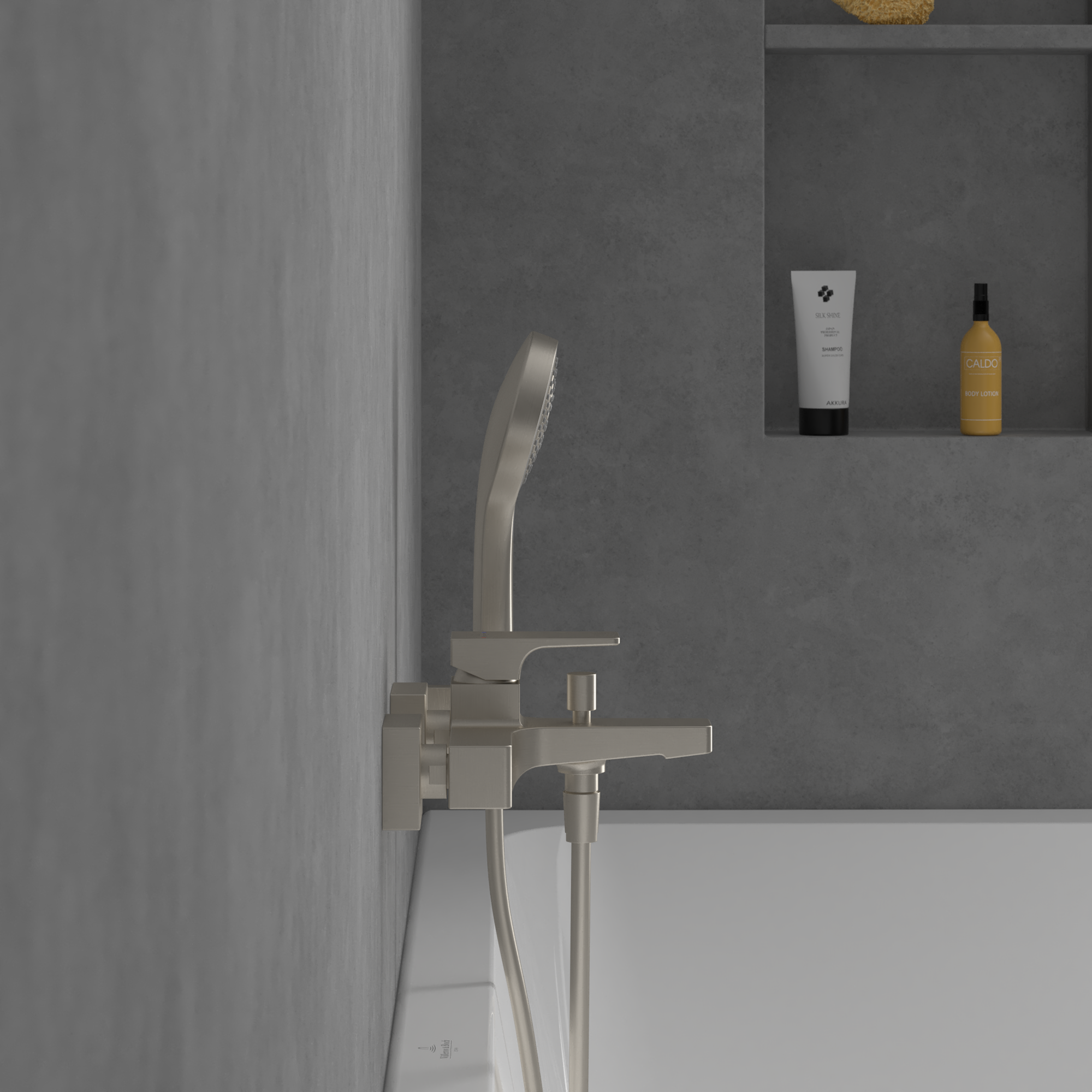

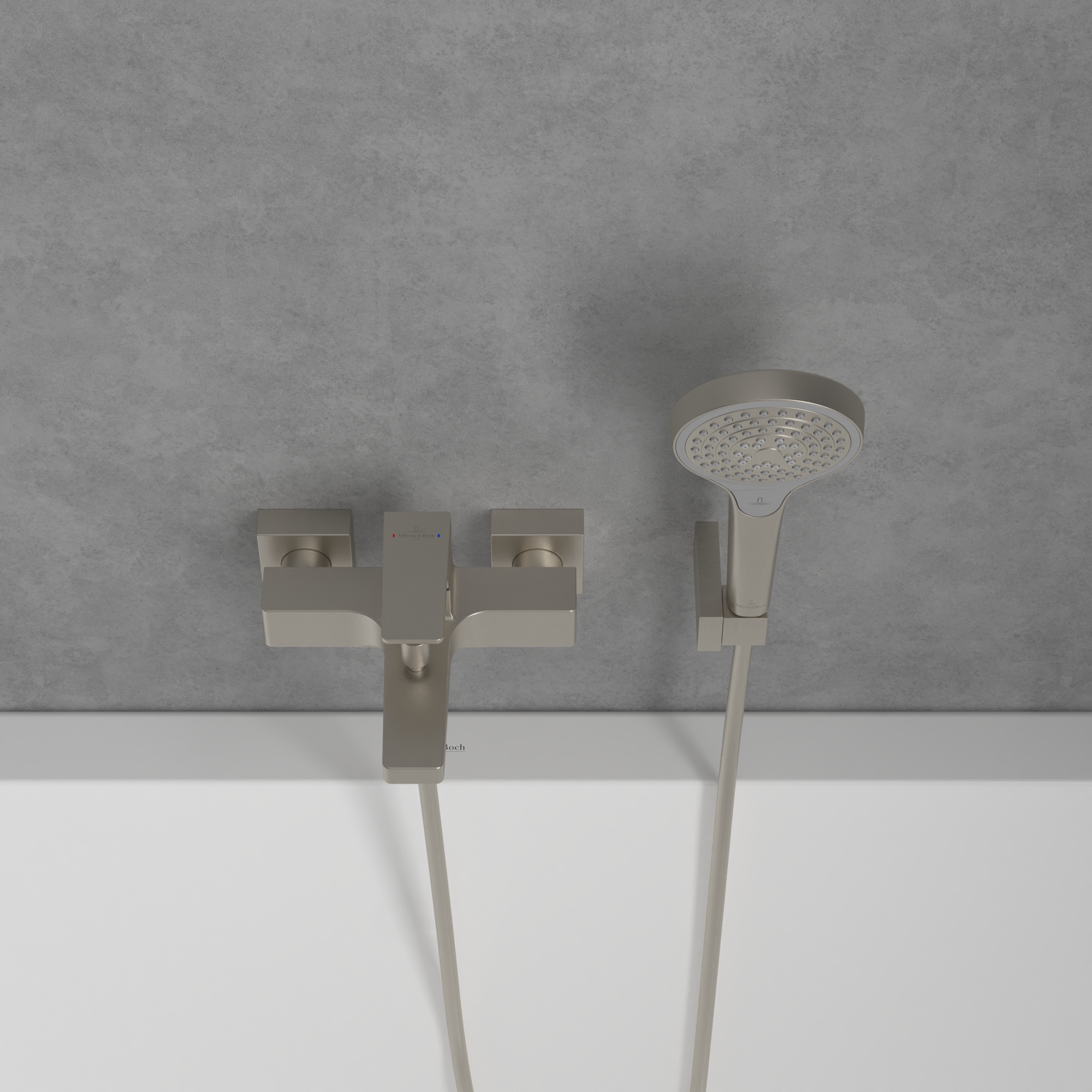

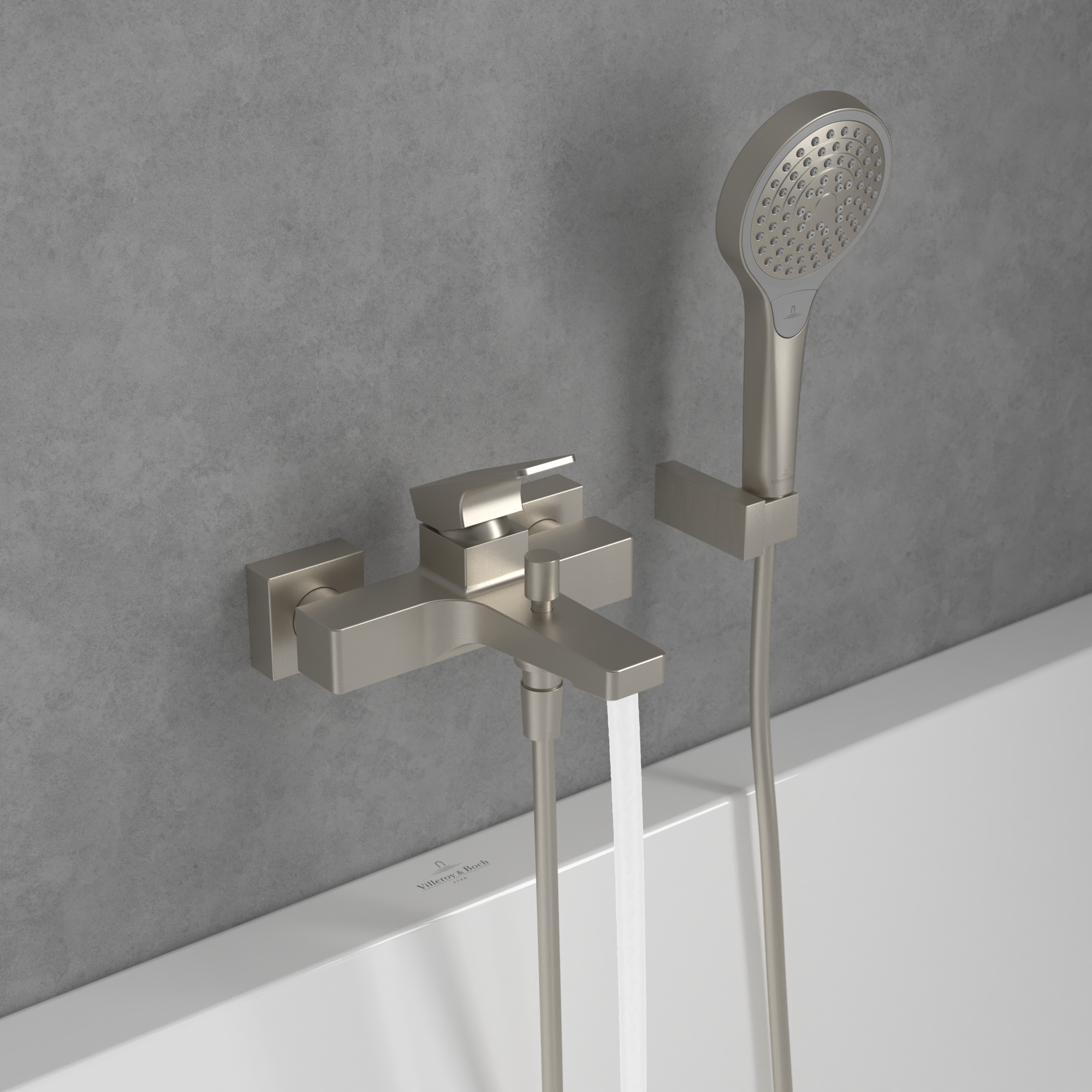

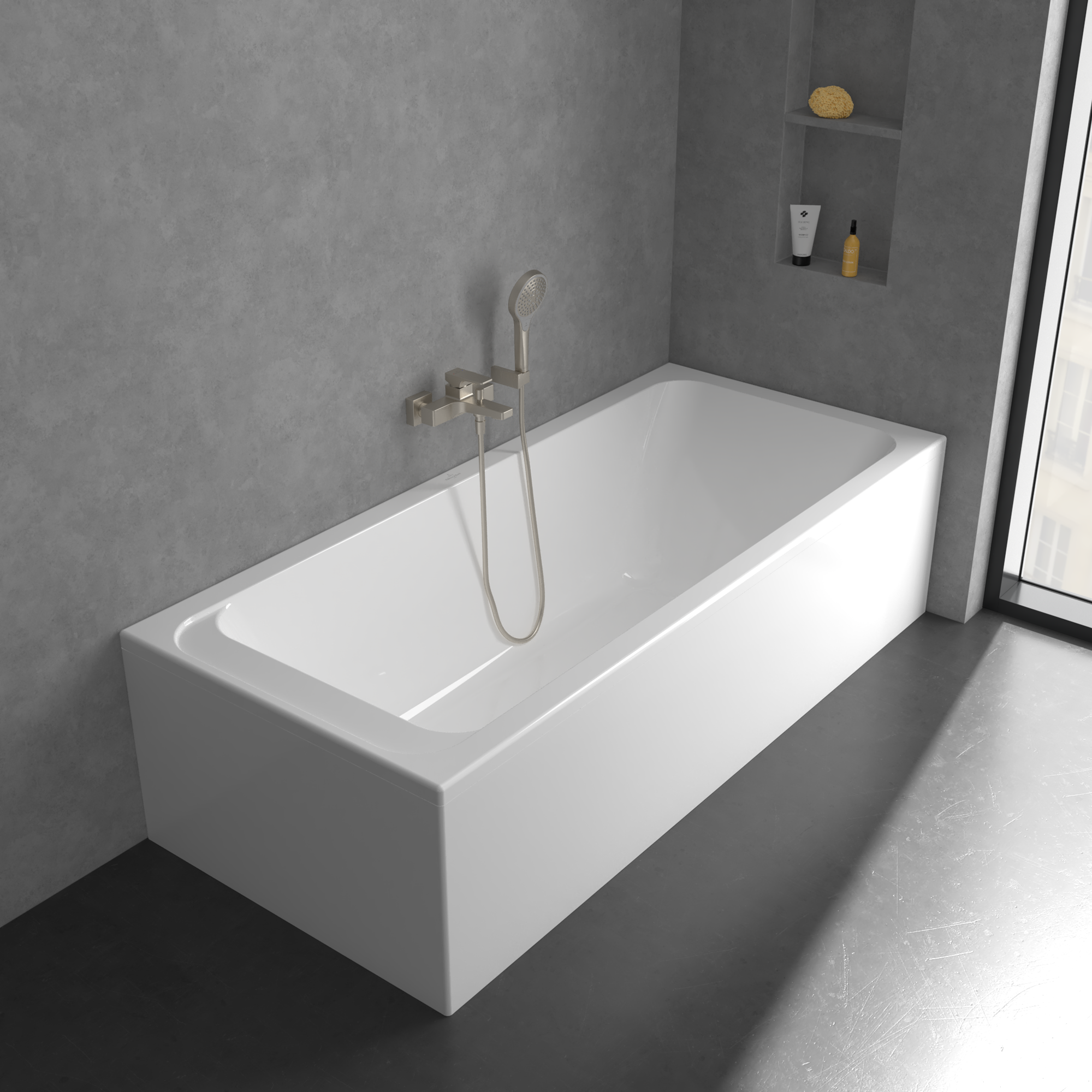

Architectura Square Single-lever bath & shower mixer, Brushed Nickel Matt
Article number
TVT12500100064
Assembly / Assembly type
wall-mounted
Scope of delivery
1 x tap fitting
1 x fastening
2 x S-connections
1 x installation instructions
1 x S-connection
Length in mm
198
Width in mm
210
Height in mm
101
Collection
Architectura Square
Weight in kg
2,13
Material
Brass
Colour name
Brushed Nickel Matt
EAN number
4062373810071
Model number
TVT125001000
Air plus

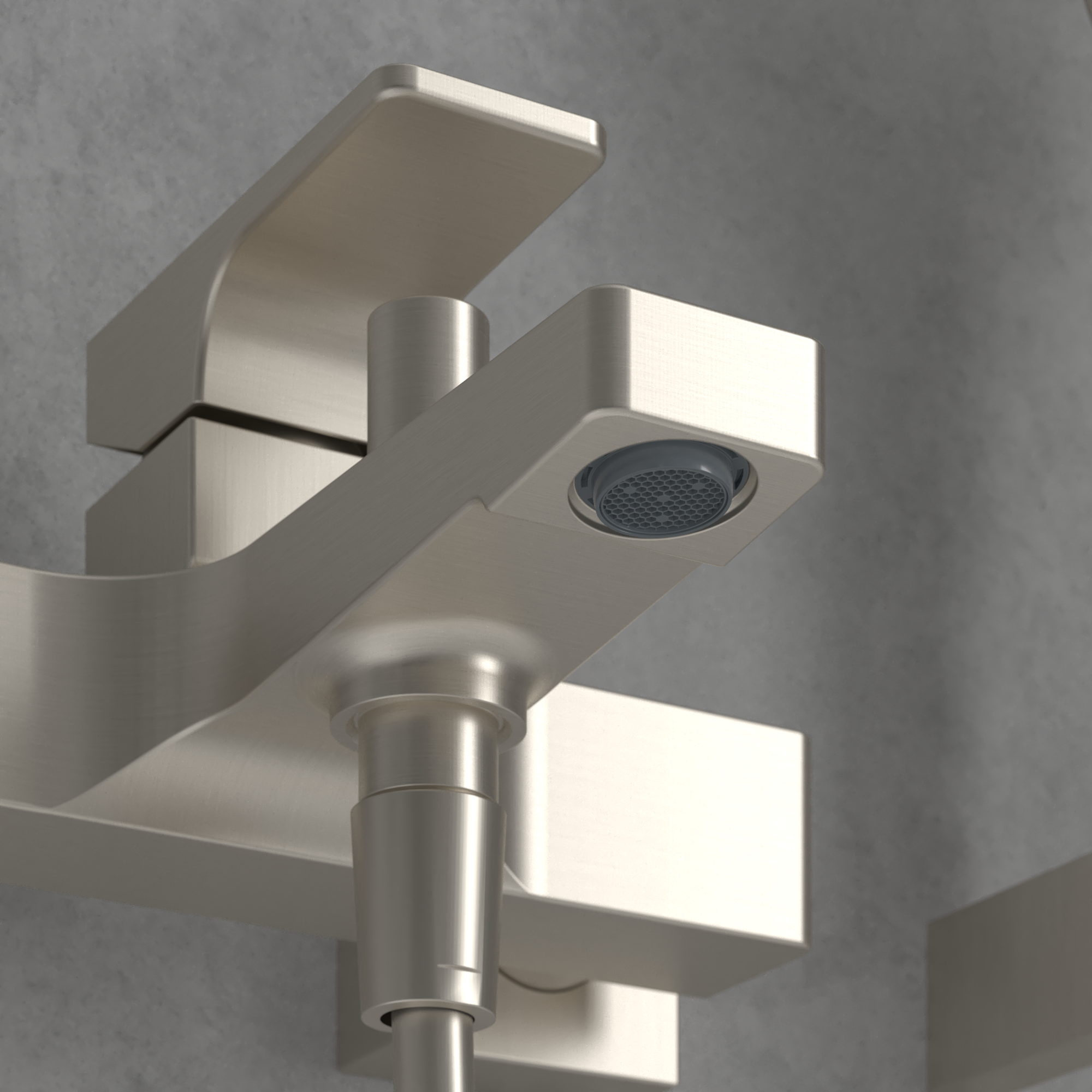

An aerator enriches the water with air for a particularly soft, water-saving jet
Easy clean
Longer service life: optimum limescale removal by simply rubbing nozzles and aerators clean
Tap smartpressure
Constant water flow rate for washbasin mixers regardless of pressure fluctuations in the piping system
Length of spout in mm
145
Spacing of connection spigots in mm
150
Material
Brass
Angle jet regulator
7
Cartridge
Cartridge with ceramic discs
Handle position
Centre
Diameter of faucet body
36
Thermostat
No
Cool Tap
No
Spray types
Comfort jet
