Undercounter washbasin

Loop & Friends

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

4A5700R7

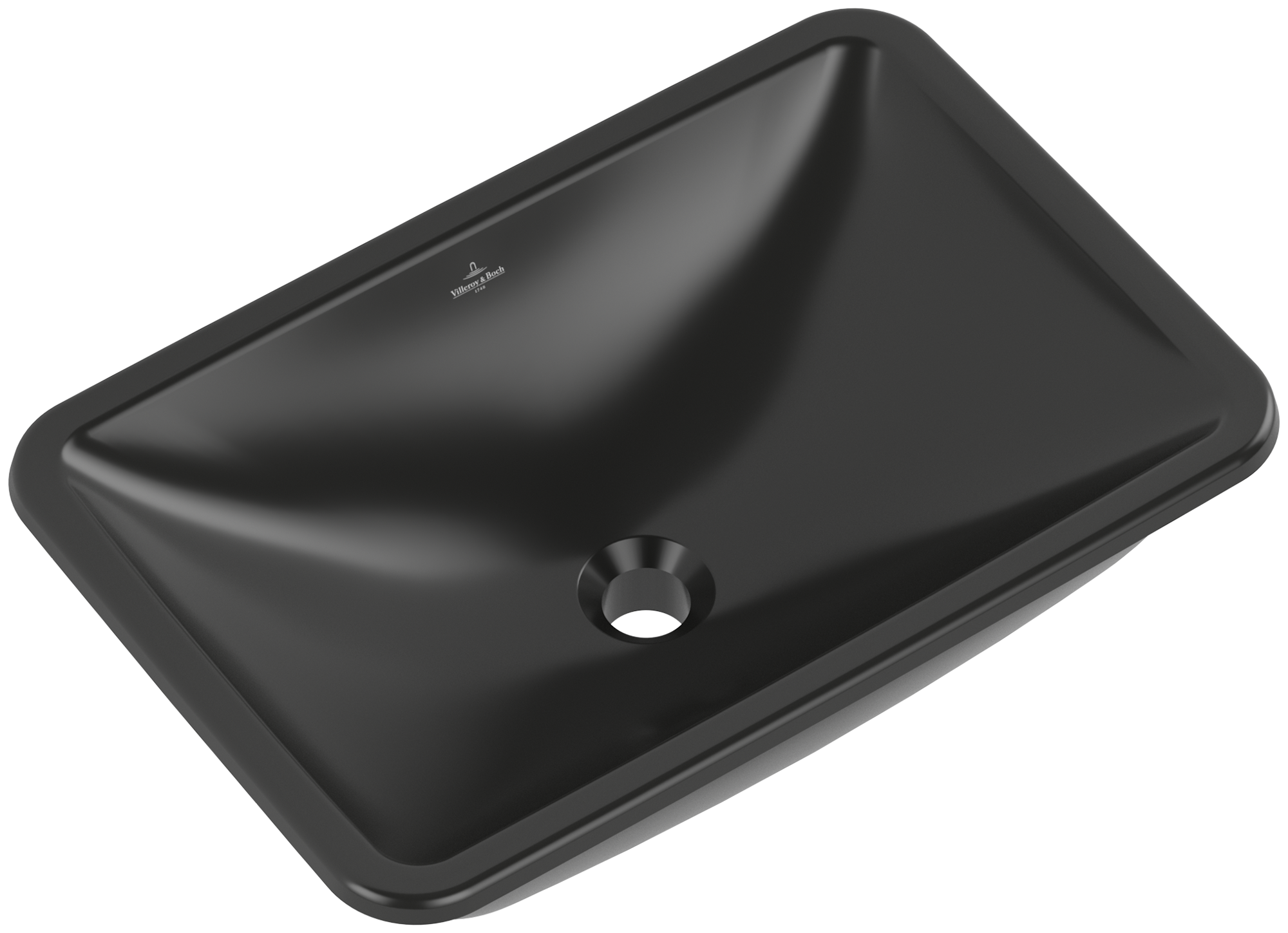

Loop & Friends Undercounter washbasin, 605x410x190mm, with overflow, Pure Black CeramicPlus

SIZE AND SHAPE :
Width in mm
540
Length in mm
340
Height in mm
190
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
Pure Black
PROPERTIES :
Assembly / Assembly type
Undercounter
Assembly instructions
the hole for the washbasin can only be cut out using the original washbasin because tolerances of several millimetres are possible installation possible in natural stone and laminate countertops
Interior depth
135
Material
TitanCeram
Colour name
Pure Black CeramicPlus
With TitanGlaze
Yes
With overflow
Yes
Article number:

4A5700R7

availability:
    Loop & Friends

    Undercounter washbasin

    Technical information
    back

    Technical information

    Article title

    Loop & Friends Undercounter washbasin, 605x410x190mm, with overflow, Pure Black CeramicPlus

    Article number

    4A5700R7

    Assembly / Assembly type

    Undercounter

    Assembly instructions

    the hole for the washbasin can only be cut out using the original washbasin because tolerances of several millimetres are possible

    installation possible in natural stone and laminate countertops

    Scope of delivery

    1 x undercounter washbasin

    1 x extended ball rod to operate pop-up outlet valve

    1 x fastening set

    Length in mm

    340

    Width in mm

    540

    Height in mm

    190

    Interior depth

    135

    Collection

    Loop & Friends

    Weight in kg

    14,65

    Material

    TitanCeram

    Colour name

    Pure Black CeramicPlus

    With TitanGlaze

    Yes

    With overflow

    Yes

    EAN number

    4062373926918

    Model number

    4A5700

    downloads
    back

    Item documentation

    Exploded-view drawing

    VB-Loop-and-Friends-4A5700-EXPL-v00-57008.pdf
    Declaration of Performance (DOP)

    VB-S-YTD-A113-0001-v15-57457.pdf
