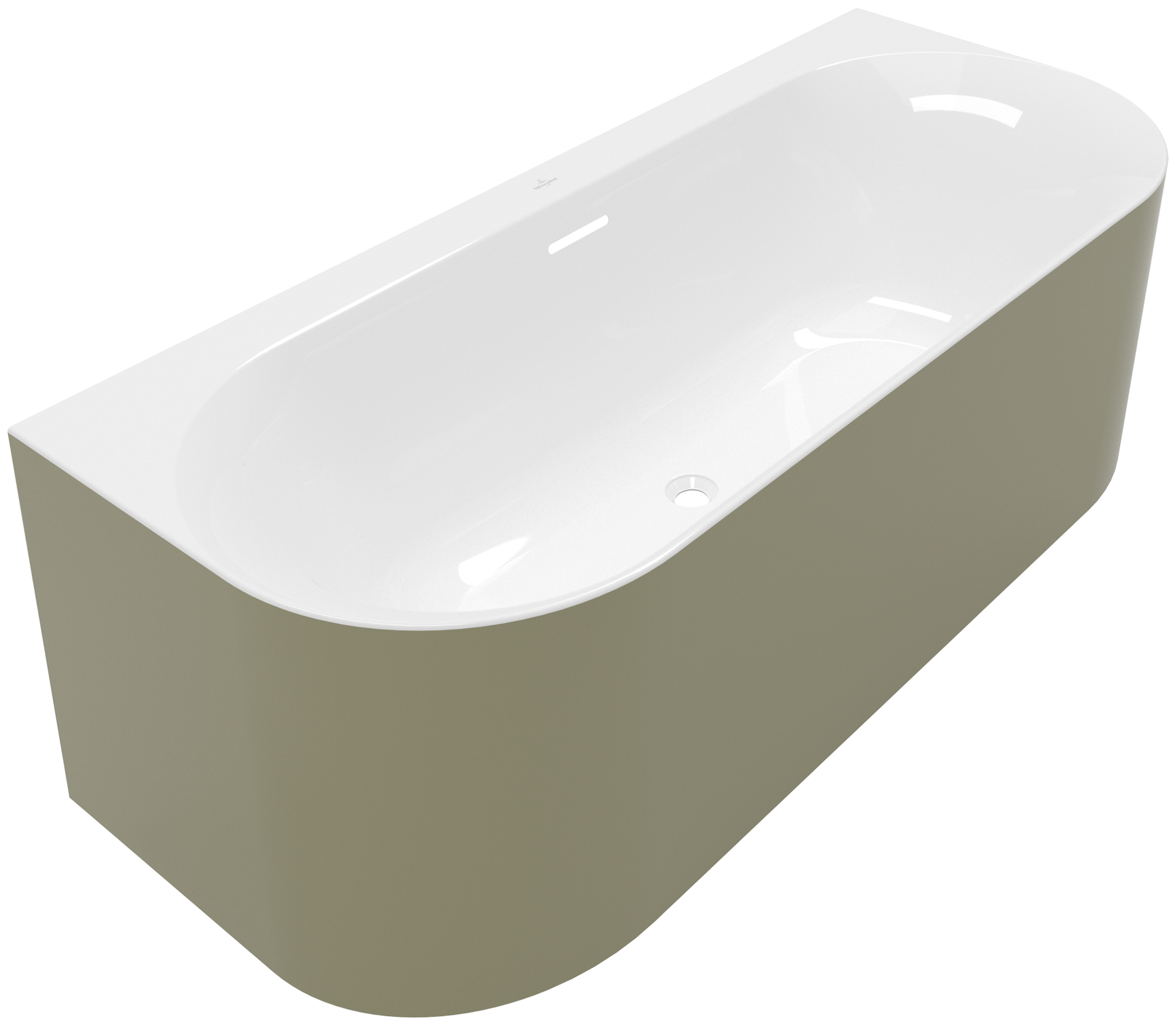

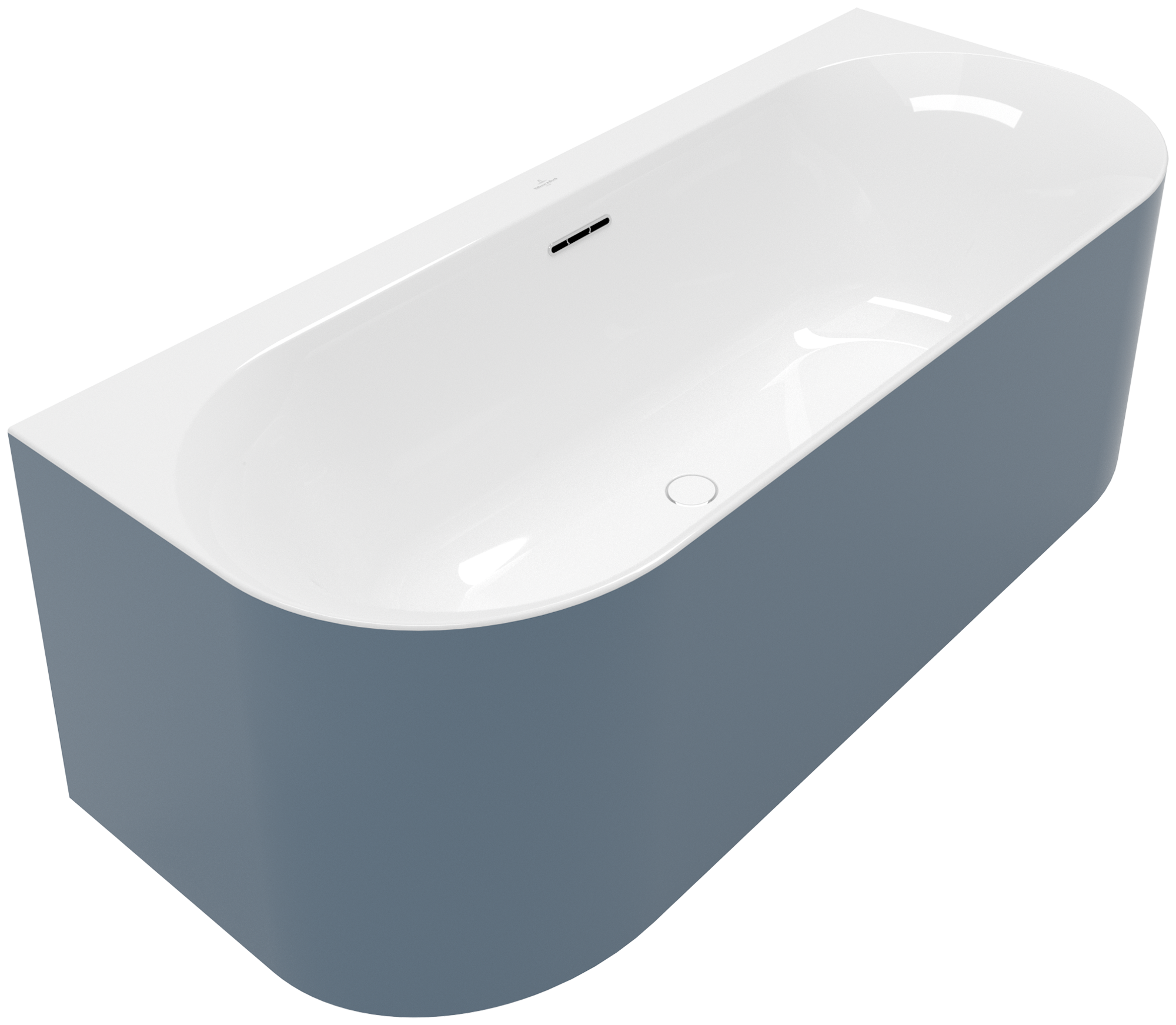

Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin

Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin
Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin
Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin
Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin
Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin
View

Wall-facing bath

Loop & Friends

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

UBA180LOF9CSBCV-01

Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin

SIZE AND SHAPE :
Width in mm
800
Length in mm
1800
Height in mm
600
Form
Wall-facing
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
wall-mounted
Assembly instructions
Central positioning of the tap fitting is not possible.
Installation height
Whirlpool system: 600 mm Bath with panel: 600 mm
Interior depth
440
Outlet / outlet
central outlet
Material
Acrylic
Colour name
White Alpin
With feet/base
Yes
With panel
Yes
Other material
Other surfaces
Outlet cover: glossy Interior colour: glossy
With overflow
Yes
Water content
293
Capacity incl. 1 pers
175
Number of people
2
For handle mounting
No
Anti-slip class
Anti-slip class A
Seat unit
2
Article number:

UBA180LOF9CSBCV-01

availability:
    Loop & Friends

    Wall-facing bath

    Technical information
    back

    Technical information

    Article title

    Loop & Friends OVAL Wall-facing bath ColourOnDemand, 1800x800mm, White Alpin

    Article number

    UBA180LOF9CSBCV-01

    Assembly / Assembly type

    wall-mounted

    Assembly instructions

    Central positioning of the tap fitting is not possible.

    Scope of delivery

    1 x offset bath

    2 x frames with 2 feet

    Length in mm

    1800

    Width in mm

    800

    Height in mm

    600

    Installation height

    Whirlpool system: 600 mm

    Bath with panel: 600 mm

    Interior depth

    440

    Collection

    Loop & Friends

    Weight in kg

    47,00

    Outlet / outlet

    central outlet

    Material

    Acrylic

    Colour name

    White Alpin

    With feet/base

    Yes

    With panel

    Yes

    Other material

    • Outlet cover: Acrylic

    • Interior colour: Acrylic

    Other surfaces

    Outlet cover: glossy

    Interior colour: glossy

    With overflow

    Yes

    Water content

    293

    Capacity incl. 1 pers

    175

    Number of people

    2

    For handle mounting

    No

    Anti-slip class

    Anti-slip class A

    Seat unit

    2

    EAN number

    4062373900000

    Model number

    UBA180LOF9CSBCV

    Spareparts
    back

    Spareparts

    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Bali
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LK
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Peru
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LL
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    to product detail
    Villeroy & Boch Spare parts Outlet cover, 72x72mm
    Product designation Outlet cover
    Article number UCWAS0254-61
    to product detail
    Villeroy & Boch Spare parts Waste part without cover, 75x75mm
    Product designation Waste part without cover
    Article number UCWAS0313-61
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, Chrome
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U90959061
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, Black Matt
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U90959033
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, White Alpin
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U90959001
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, Chrome
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U90959161
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, Black Matt
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U90959133
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Waste and overflow combination, 200x300x100mm, Stone White
    Collection Accessories
    Product designation Waste and overflow combination
    Article number U909591RW
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Bath feet, 150x600x120mm
    Collection Accessories
    Product designation Bath feet
    Article number U99740000
    Dimension 150 x 600 x 120 mm
    to product detail
    Villeroy & Boch Spare parts Stöpsel Wassereinlauf, 27x44mm
    Product designation Water inlet plug
    Article number UCCON0960
    to product detail
    Villeroy & Boch Spare parts Dichtungsring zur Abdeckung, 50x50mm
    Product designation Sealing ring for cover
    Article number UCFIX0370
    to product detail
    Villeroy & Boch Spare parts Outlet cover, 72x72mm
    Product designation Outlet cover
    Article number UCWAS0254-68
    to product detail
    Villeroy & Boch Spare parts Überlaufabdeckung, 23x130mm, White Alpin
    Product designation Overflow cover
    Article number UCWAS0336-01
    to product detail
    Villeroy & Boch Spare parts Überlaufabdeckung, 23x130mm
    Product designation Overflow cover
    Article number UCWAS0336-61
    to product detail
    Villeroy & Boch Spare parts sichtbare Abdeckung für Klick-Ablauf, 72x72mm
    Product designation visible cover for click drain
    Article number UPWAS0050-33
    to product detail
    Villeroy & Boch Spare parts sichtbare Abdeckung für Klick-Ablauf, 72x72mm, Stone White
    Product designation visible cover for click drain
    Article number UPWAS0050-RW
    to product detail
    Villeroy & Boch Spare parts Überlaufabdeckung, 23x130mm
    Product designation Overflow cover
    Article number UPWAS0085-33
    to product detail
    Villeroy & Boch Spare parts Überlaufabdeckung, 23x130mm, Stone White
    Product designation Overflow cover
    Article number UPWAS0085-RW
    to product detail
    Show more
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Loop-and-Friends-UBA180LOF9CSBCV-II-v01-48222-en.pdf
    Assembly instructions

    VB-Loop-and-Friends-UBA180LOF9CSBCV-II-v02-48223-en.pdf
    Technical drawing

    VB-Loop-and-Friends-UBA180LOF9CSBCV-2D01-v01-44327.pdf

    Planning information

    2-D data

    VB-Loop-and-Friends-UBA180LOF9CSBCV-2D01-v01-44327.dwg
    2-D data

    VB-Loop-and-Friends-UBA180LOF9CSBCV-2D01-v01-44327.dxf
    3-D data

    VB-Loop-and-Friends-UBA180LOF9CSBCV-3D01-v00-44922.stp

    Item documentation

    Declaration of Performance (DOP)

    VB-W-YTD-G1413-0001-v01-70202.pdf
