Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White

Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White
View

Wall-facing bath

Oberon 2.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

UBQ180OBR9CDBCV-RW

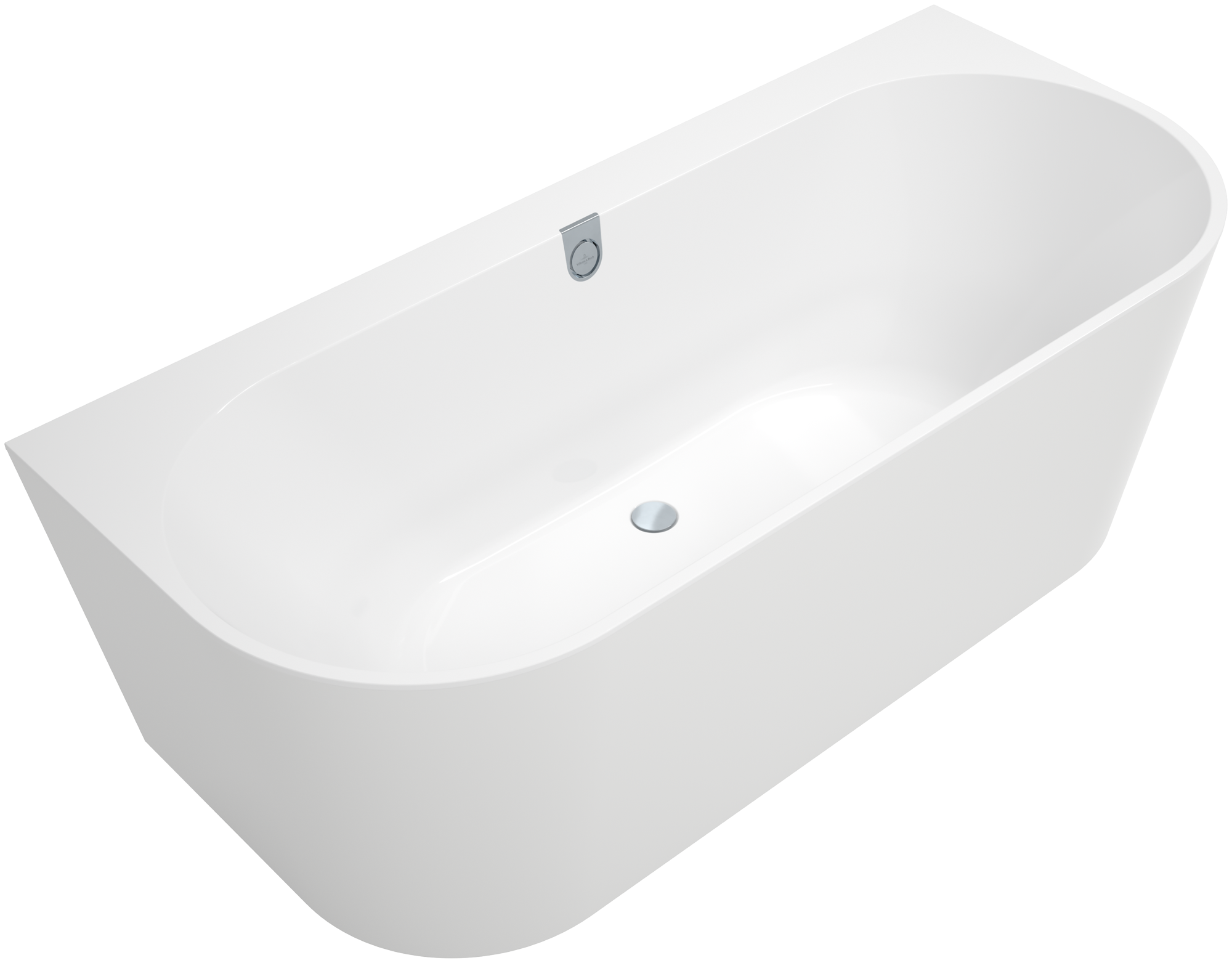

Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White

SIZE AND SHAPE :
Width in mm
800
Length in mm
1800
Height in mm
620
Form
Wall-facing
COLOUR AND SURFACE :
Colour designation
Stone White
PROPERTIES :
Assembly / Assembly type
wall-mounted
Interior depth
460
Outlet / outlet
central outlet
Material
Quaryl®
Colour name
Stone White
With feet/base
No
With panel
Yes
Other material
Other surfaces
Waste/overflow combination: glossy Outlet cover: glossy Interior colour: matt
With overflow
Yes
Water content
280
Capacity incl. 1 pers
205
Number of people
2
For handle mounting
No
Anti-slip class
Anti-slip class A
Seat unit
2
Article number:

UBQ180OBR9CDBCV-RW

availability:
    Oberon 2.0

    Wall-facing bath

    Technical information
    back

    Technical information

    Article title

    Oberon 2.0 Wall-facing bath ColourOnDemand, 1800x800mm, Stone White

    Article number

    UBQ180OBR9CDBCV-RW

    Assembly / Assembly type

    wall-mounted

    Scope of delivery

    1 x back-to-wall bath

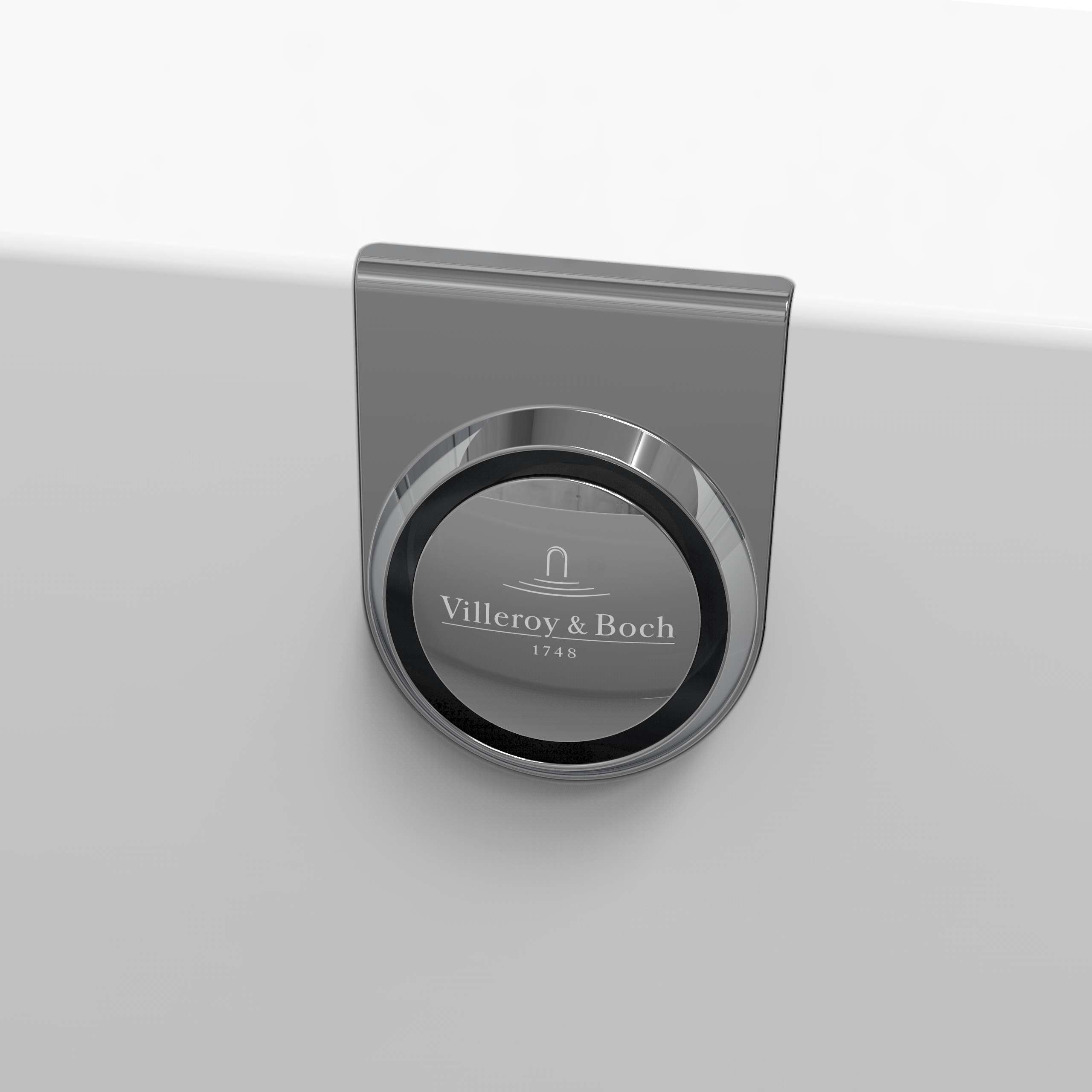

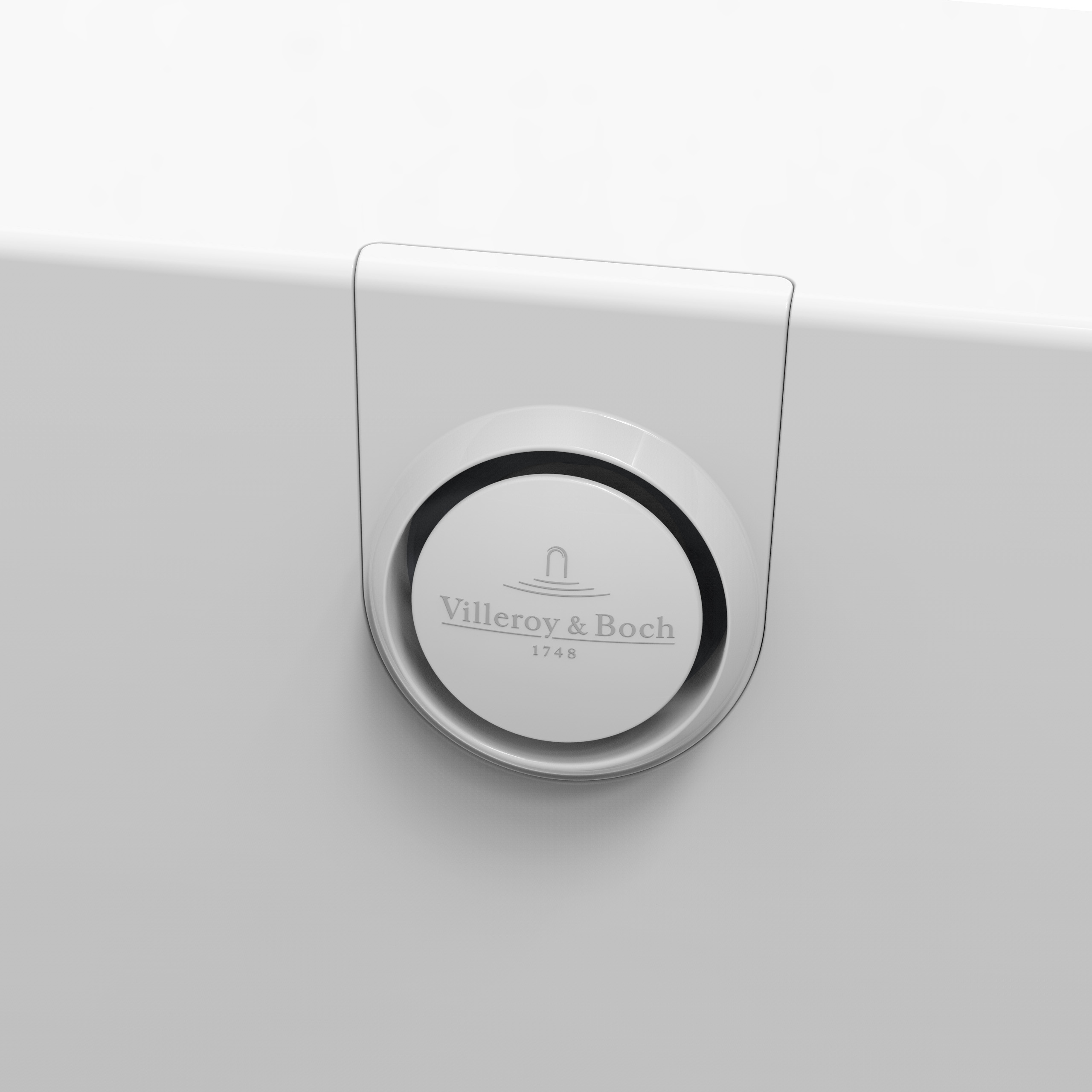

    1 x extended outlet and overflow (chrome-plated and white)

    Length in mm

    1800

    Width in mm

    800

    Height in mm

    620

    Interior depth

    460

    Collection

    Oberon 2.0

    Weight in kg

    102,40

    Outlet / outlet

    central outlet

    Material

    Quaryl®

    Colour name

    Stone White

    With feet/base

    No

    With panel

    Yes

    Other material

    • Waste/overflow combination: Plastic

    • Outlet cover: Plastic

    • Interior colour: Quaryl®

    Other surfaces

    Waste/overflow combination: glossy

    Outlet cover: glossy

    Interior colour: matt

    With overflow

    Yes

    Water content

    280

    Capacity incl. 1 pers

    205

    Number of people

    2

    For handle mounting

    No

    Anti-slip class

    Anti-slip class A

    Seat unit

    2

    EAN number

    4062373777114

    Model number

    UBQ180OBR9CDBCV

    Spareparts
    back

    Spareparts

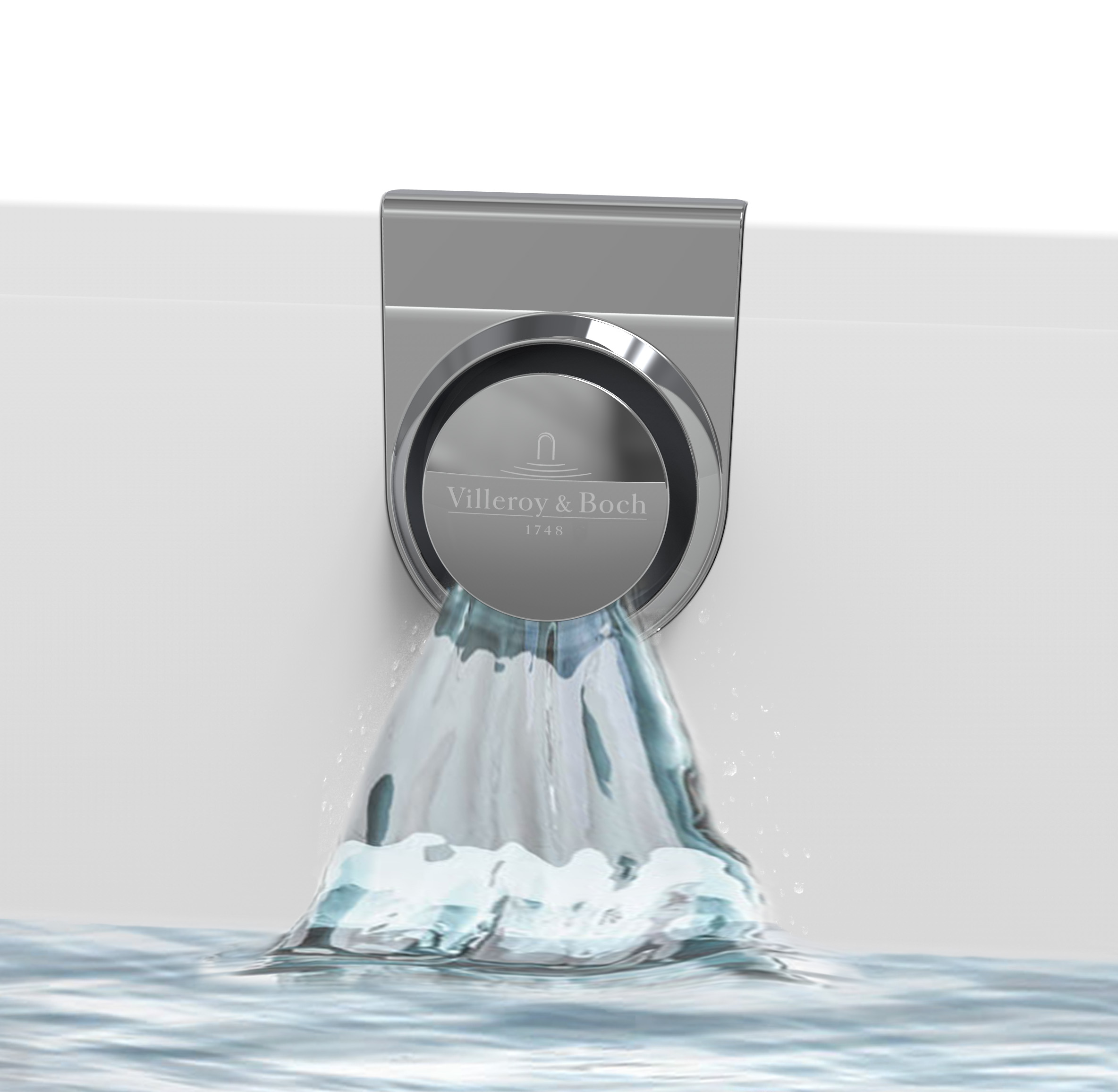

    Villeroy & Boch Accessories Water inlet, 150x220x65mm
    Collection Accessories
    Product designation Water inlet
    Article number UPCON0136
    Dimension 150 x 220 x 65 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Bali
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LK
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Peru
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LL
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    to product detail

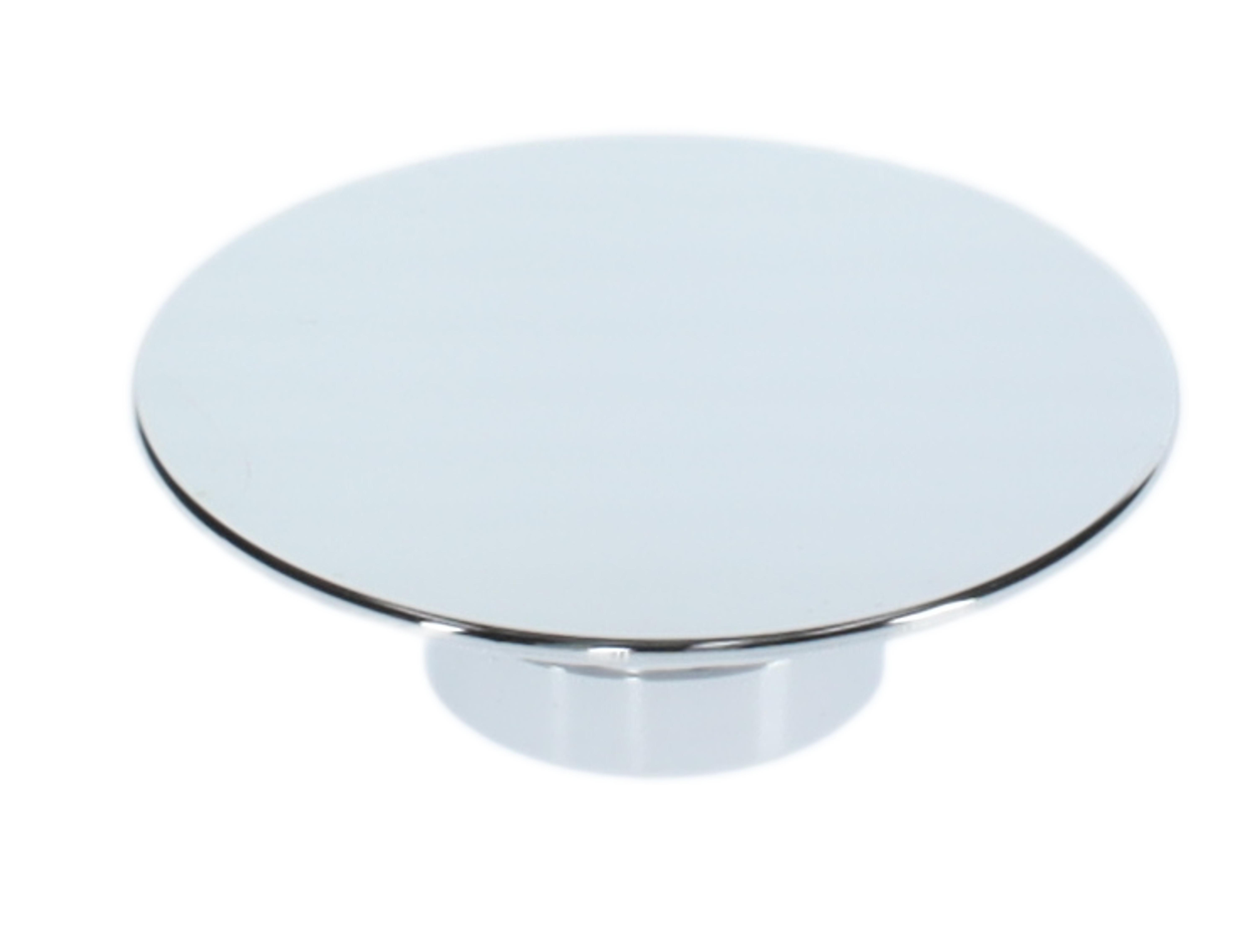

    Villeroy & Boch Spare parts Outlet cover, 72x72mm
    Product designation Outlet cover
    Article number UCWAS0254-61
    to product detail
    Villeroy & Boch Spare parts Waste part without cover, 75x75mm
    Product designation Waste part without cover
    Article number UCWAS0313-61
    to product detail
    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
    to product detail

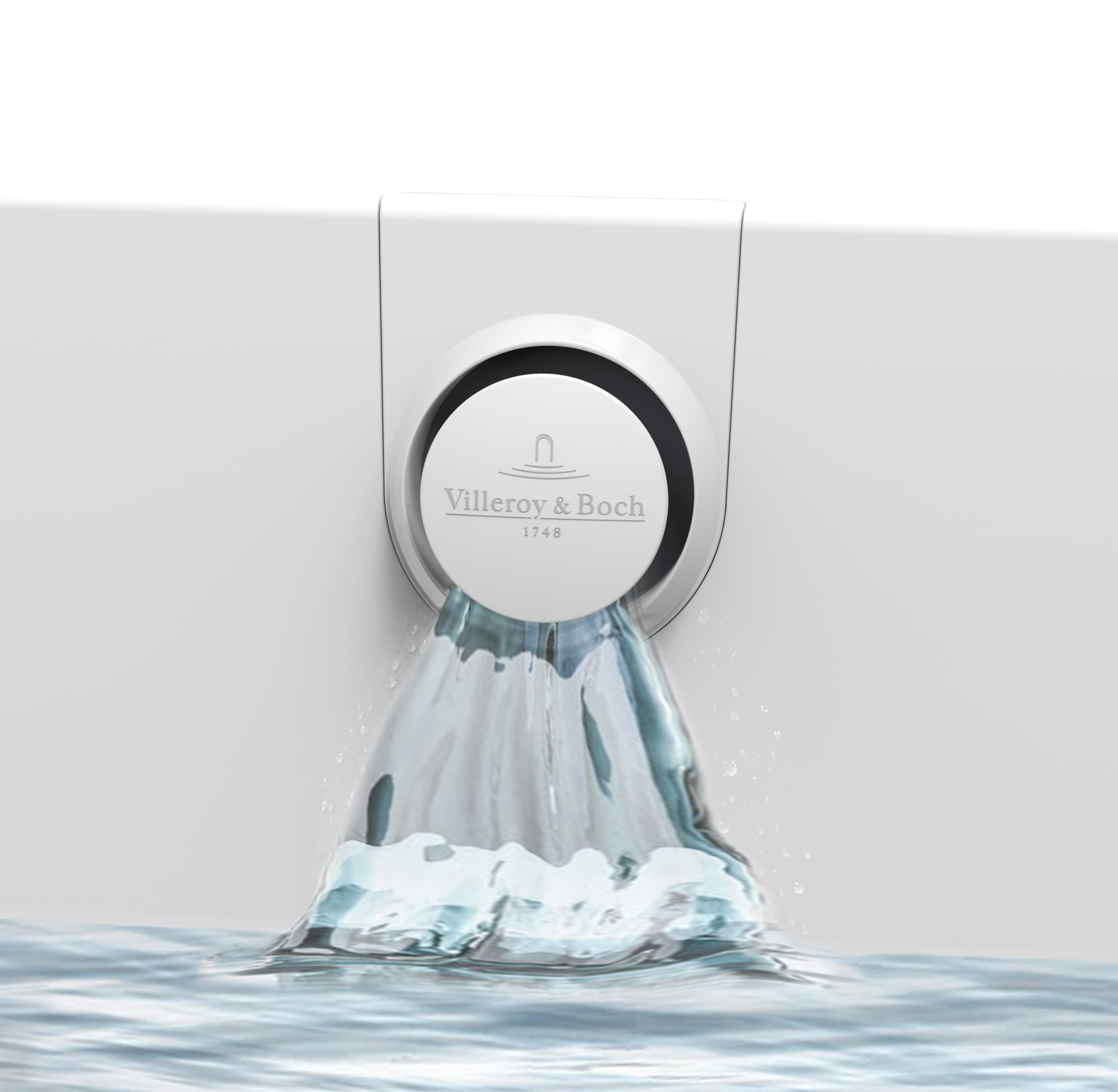

    Villeroy & Boch Accessories Water inlet, 150x220x65mm, Stone White
    Collection Accessories
    Product designation Water inlet
    Article number UPCON0136-RW
    Dimension 150 x 220 x 65 mm
    to product detail
    Villeroy & Boch Accessories Water inlet, 150x220x65mm, Black Matt
    Collection Accessories
    Product designation Water inlet
    Article number UPCON0136-33
    Dimension 150 x 220 x 65 mm
    to product detail
    Villeroy & Boch Accessories Overflow and outlet cover, 200x300x100mm, Stone White
    Collection Accessories
    Product designation Overflow and outlet cover
    Article number U909570RW
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Accessories Overflow and outlet cover, 200x300x100mm, Black Matt
    Collection Accessories
    Product designation Overflow and outlet cover
    Article number U90957033
    Dimension 200 x 300 x 100 mm
    to product detail
    Villeroy & Boch Spare parts Sichtbare Teile Rohrunterbrecher, 75x85mm
    Product designation Visible parts pipe interrupter
    Article number UCCON0454
    to product detail
    Villeroy & Boch Spare parts Dichtungsring zur Abdeckung, 50x50mm
    Product designation Sealing ring for cover
    Article number UCFIX0370
    to product detail

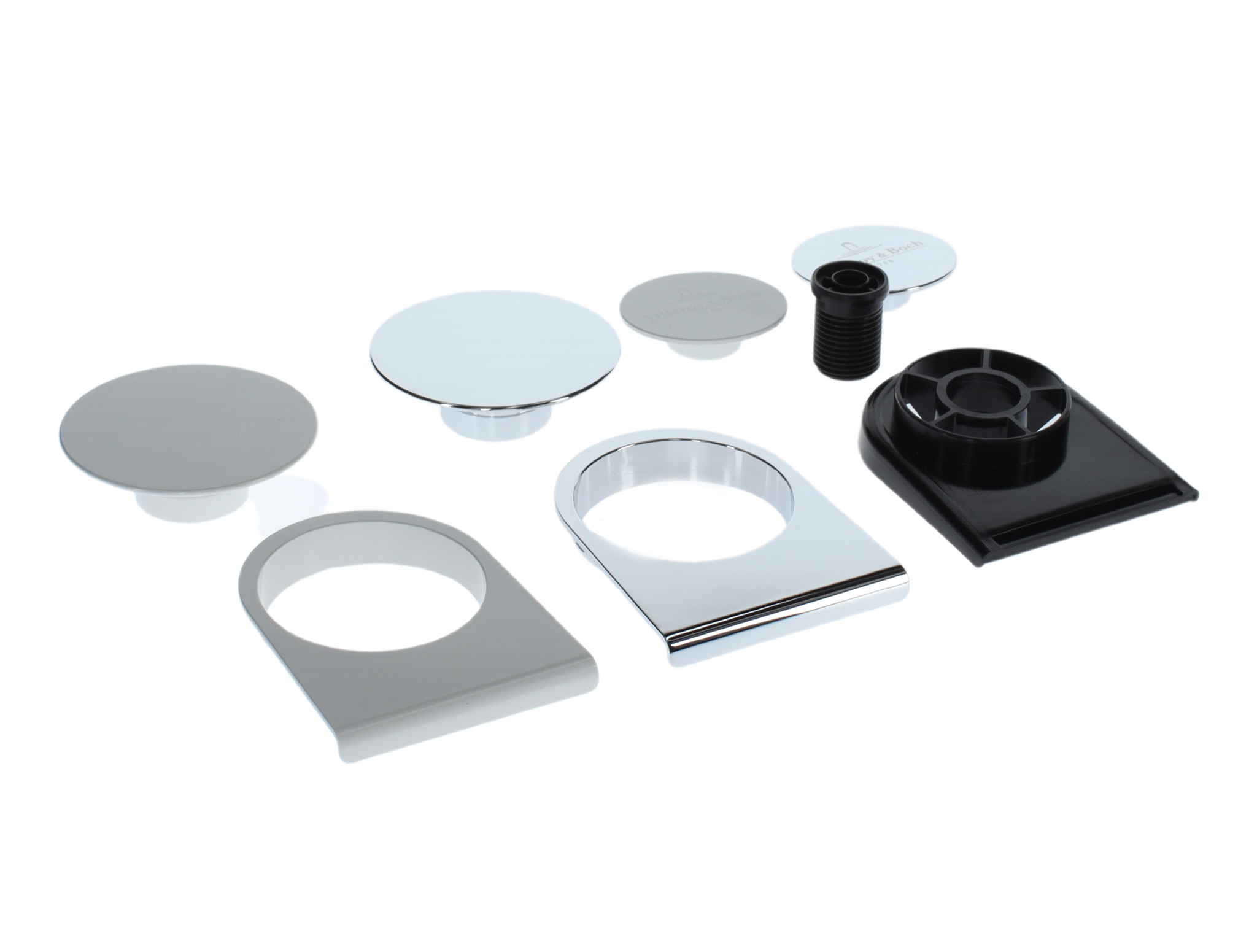

    Villeroy & Boch Spare parts Waste system, 150x150mm
    Product designation Waste system
    Article number UCWAS0252
    to product detail

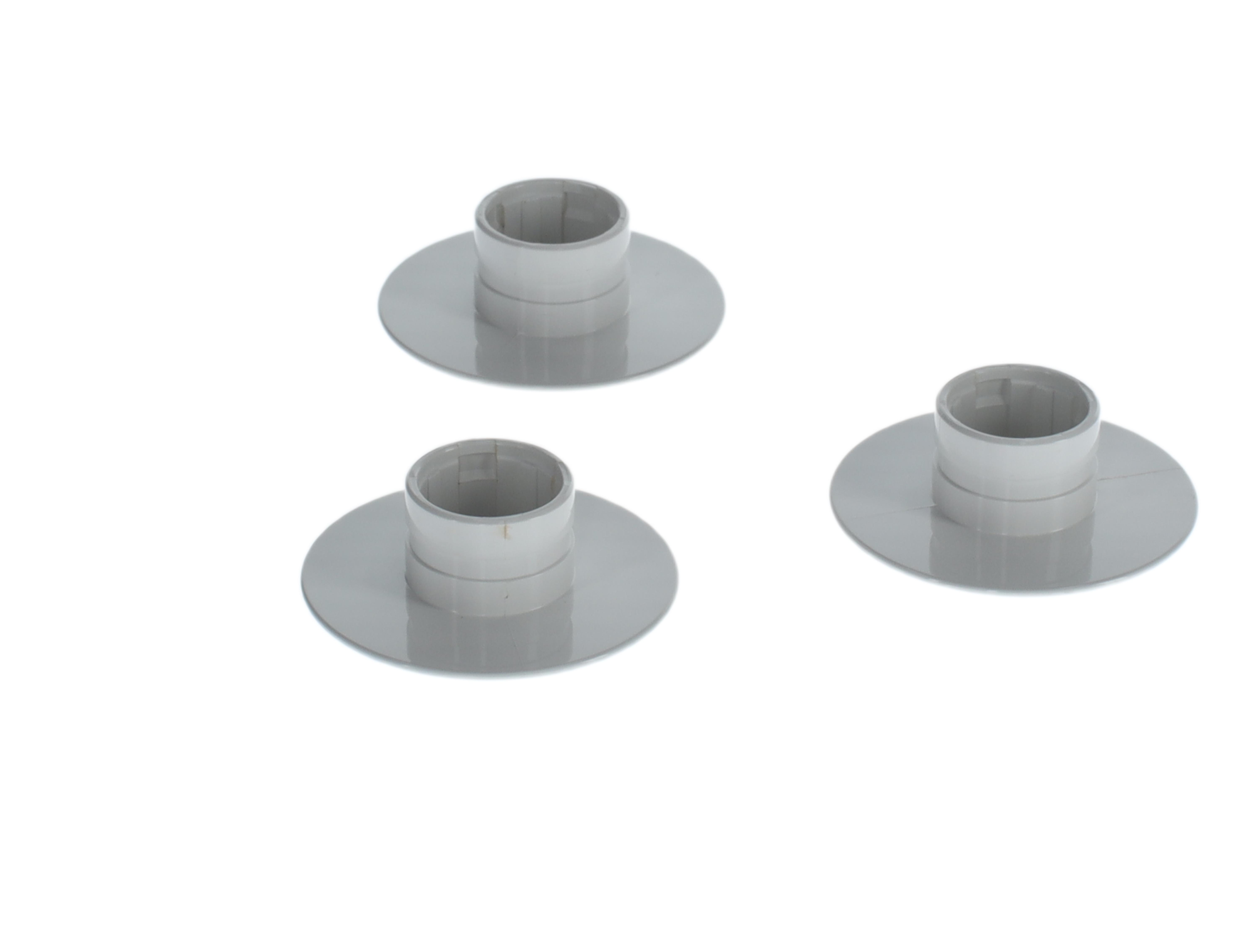

    Villeroy & Boch Spare parts Outlet cover, 72x72mm
    Product designation Outlet cover
    Article number UCWAS0254-68
    to product detail

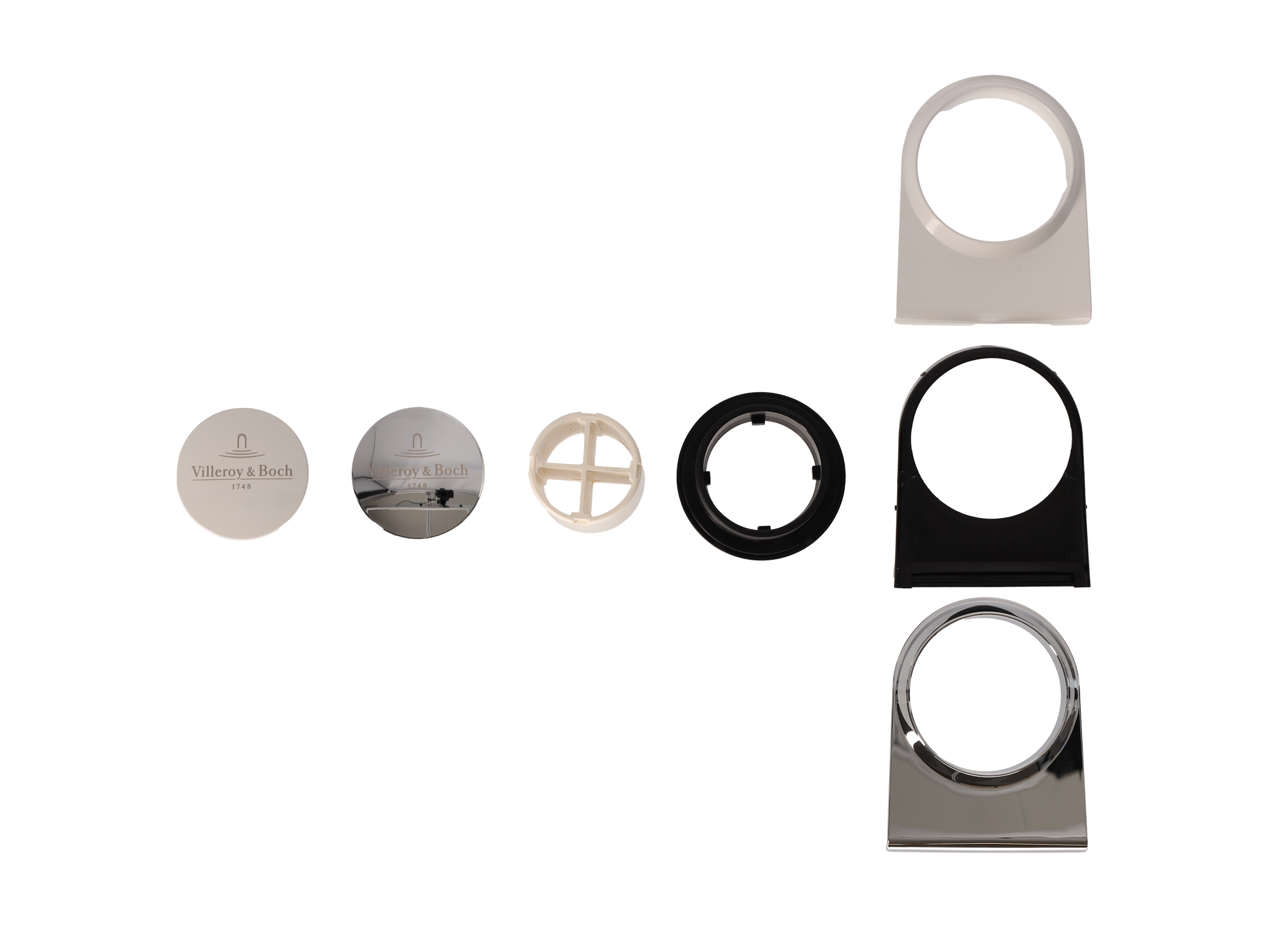

    Villeroy & Boch Spare parts sichtbarer Wassereinlass, 150x150mm
    Product designation visible water inlet
    Article number UCWAS0315
    to product detail
    Villeroy & Boch Spare parts Adapter für Rohrunterbrecher, 30x57mm
    Product designation Adapter for pipe interrupter
    Article number UCWAS0350
    to product detail
    Villeroy & Boch Spare parts Waste system, 350x400mm
    Product designation Waste system
    Article number UPWAS0024
    to product detail

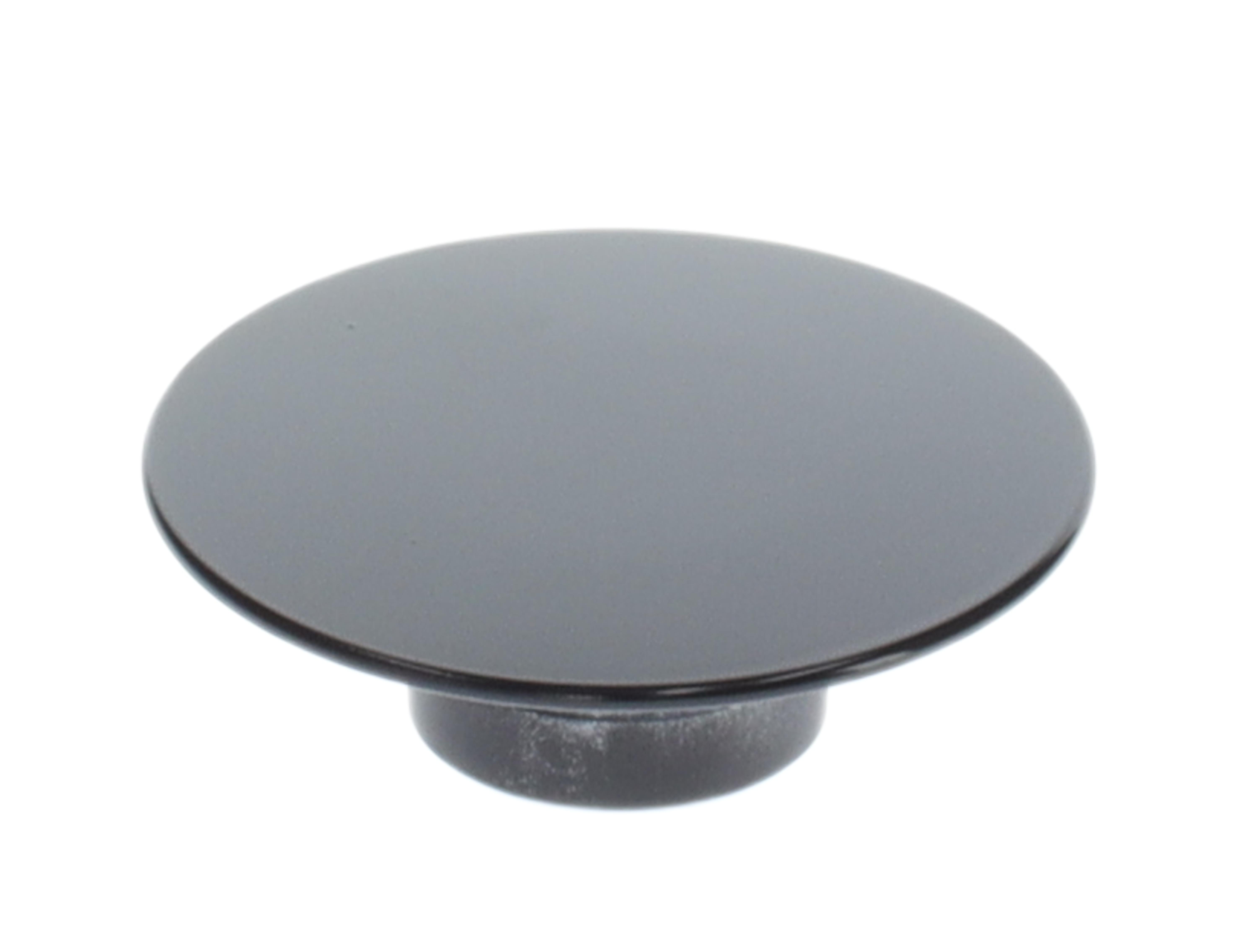

    Villeroy & Boch Spare parts sichtbare Abdeckung für Klick-Ablauf, 72x72mm
    Product designation visible cover for click drain
    Article number UPWAS0050-33
    to product detail

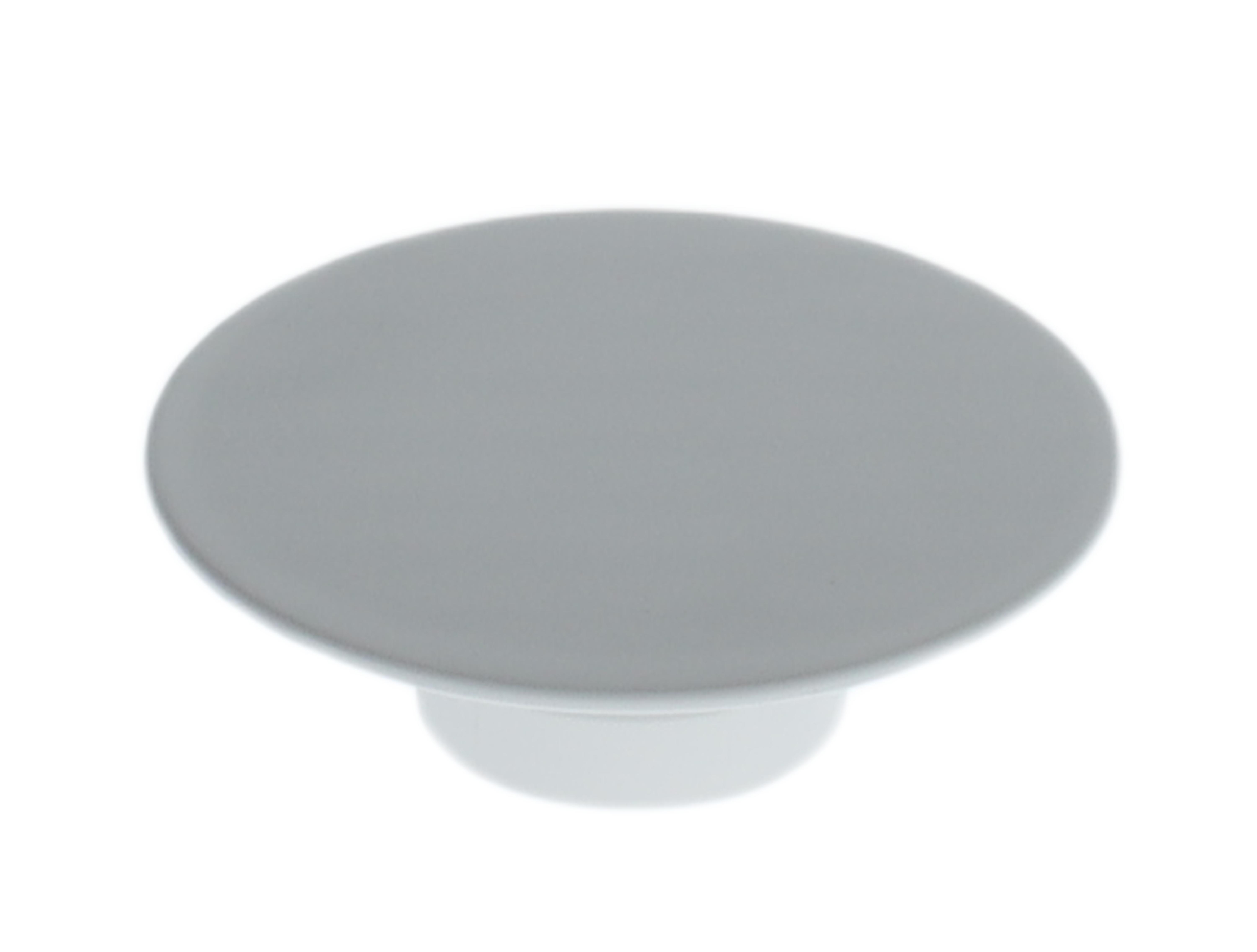

    Villeroy & Boch Spare parts sichtbare Abdeckung für Klick-Ablauf, 72x72mm, Stone White
    Product designation visible cover for click drain
    Article number UPWAS0050-RW
    to product detail
    Show more
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Oberon-2-0-UBQ180OBR9CDBCV-II-v00-45951-en.pdf
    Technical drawing

    VB-Oberon-2-0-UBQ180OBR9CDBCV-2D01-v01-44377.pdf

    Planning information

    2-D data

    VB-Oberon-2-0-UBQ180OBR9CDBCV-2D01-v01-44377.dwg
    2-D data

    VB-Oberon-2-0-UBQ180OBR9CDBCV-2D01-v01-44377.dxf
    3-D data

    VB-Oberon-2-0-UBQ180OBR9CDBCV-3D01-v01-45008.igs
    3-D data

    VB-Oberon-2-0-UBQ180OBR9CDBCV-3D01-v01-45008.stp
    BIM data

    Item documentation

    Declaration of Performance (DOP)

    VB-W-YTD-G1413-0001-v01-70202.pdf
