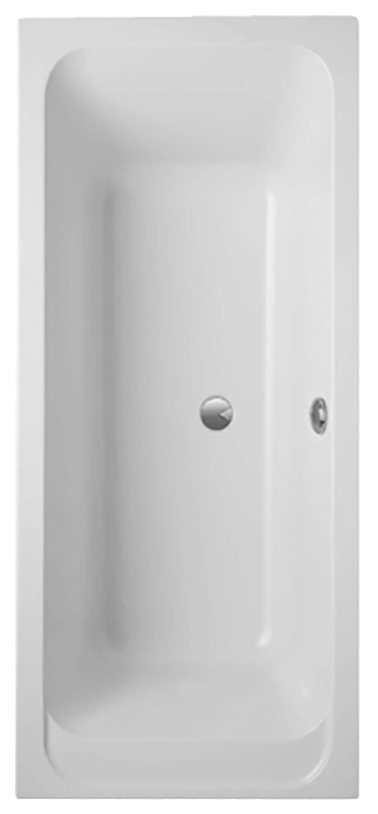

Architectura Rectangular bath, 1700x800mm, White Alpin

Discontinued item
Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
Architectura Rectangular bath, 1700x800mm, White Alpin
View

Rectangular bath

Architectura

SPECIFICATION TEXTS

UBA178ARA2V-01

discontinued

Architectura Rectangular bath, 1700x800mm, White Alpin

SIZE AND SHAPE :
Width in mm
800
Length in mm
1700
Height in mm
505
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
built-in installation
Installation height
Bath: 585 - 635 mm Whirlpool system: 625 - 665 mm Profibox 2.0 without system: 585 - 585 mm Profibox 2.0 incl. System: 625 - 625 mm
Interior depth
480
Outlet / outlet
central outlet
Material
Acrylic
Colour name
White Alpin
With feet/base
No
With panel
No
With overflow
Yes
Water content
290
Capacity incl. 1 pers
215
Number of people
2
For handle mounting
Yes
Anti-slip class
Anti-slip class A
Following systems are available
[AC] Airpools [AE] Airpools [AP] Specialpools [CC] Combipools [CE] Combipools [HC] Hydropools [HE] Hydropools
Seat unit
2
Article number:

UBA178ARA2V-01

Material status:

Discontinued item

    Technical information
    back

    Technical information

    Article title

    Architectura Rectangular bath, 1700x800mm, White Alpin

    Article number

    UBA178ARA2V-01

    Assembly / Assembly type

    built-in installation

    Scope of delivery

    1 x rectangular bath

    Length in mm

    1700

    Width in mm

    800

    Height in mm

    505

    Installation height

    Bath: 585 - 635 mm

    Whirlpool system: 625 - 665 mm

    Profibox 2.0 without system: 585 - 585 mm

    Profibox 2.0 incl. System: 625 - 625 mm

    Interior depth

    480

    Collection

    Architectura

    Weight in kg

    23,00

    Outlet / outlet

    central outlet

    Material

    Acrylic

    Colour name

    White Alpin

    With feet/base

    No

    With panel

    No

    With overflow

    Yes

    Water content

    290

    Capacity incl. 1 pers

    215

    Number of people

    2

    For handle mounting

    Yes

    Anti-slip class

    Anti-slip class A

    Following systems are available

    [AC] Airpools

    [AE] Airpools

    [AP] Specialpools

    [CC] Combipools

    [CE] Combipools

    [HC] Hydropools

    [HE] Hydropools

    Seat unit

    2

    EAN number

    4047289141822

    Model number

    UBA178ARA2V

    Spareparts
    back

    Spareparts

    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Bali
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LK
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Peru
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LL
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    to product detail
    Villeroy & Boch Accessories Bath feet, 150x600x120mm
    Collection Accessories
    Product designation Bath feet
    Article number U99740000
    Dimension 150 x 600 x 120 mm
    to product detail
    Villeroy & Boch Spare parts Sichtbare Teile Rohrunterbrecher, 75x85mm
    Product designation Visible parts pipe interrupter
    Article number UCCON0454
    to product detail
    Villeroy & Boch Spare parts Adapter für Rohrunterbrecher, 30x57mm
    Product designation Adapter for pipe interrupter
    Article number UCWAS0350
    to product detail
    Villeroy & Boch Spare parts Set Ablassventil, 100x100mm
    Product designation Drain valve set
    Article number UCWAS0364
    to product detail
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0359-61
    to product detail
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0360-61
    to product detail
    Villeroy & Boch Accessories Waste/overflow combination, 200x315x130mm, Chrome
    Collection Accessories
    Product designation Waste/overflow combination
    Article number U90960461
    Dimension 200 x 315 x 130 mm
    to product detail
    Villeroy & Boch Accessories Outlet/overflow fitting with water inlet, 200x465x130mm, Chrome
    Collection Accessories
    Product designation Outlet/overflow fitting with water inlet
    Article number U90960361
    Dimension 200 x 465 x 130 mm
    to product detail
    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
    to product detail
    Show more
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Architectura-UBA178ARA2V-II-v00-45843-en.pdf
    Technical drawing

    VB-Architectura-UBA178ARA2V-2D01-v01-44305.pdf

    Planning information

    2-D data

    VB-Architectura-UBA178ARA2V-2D01-v01-44305.dwg
    2-D data

    VB-Architectura-UBA178ARA2V-2D01-v01-44305.dxf
    2-D data

    VB-Architectura-UBA178ARA2V-2D01-v02-44305.eps
    3-D data

    VB-Architectura-UBA178ARA2V-3D01-v00-56934.stp
    BIM data

    Item documentation

    Declaration of Performance (DOP)

    VB-W-YTD-G1413-0001-v01-70202.pdf
