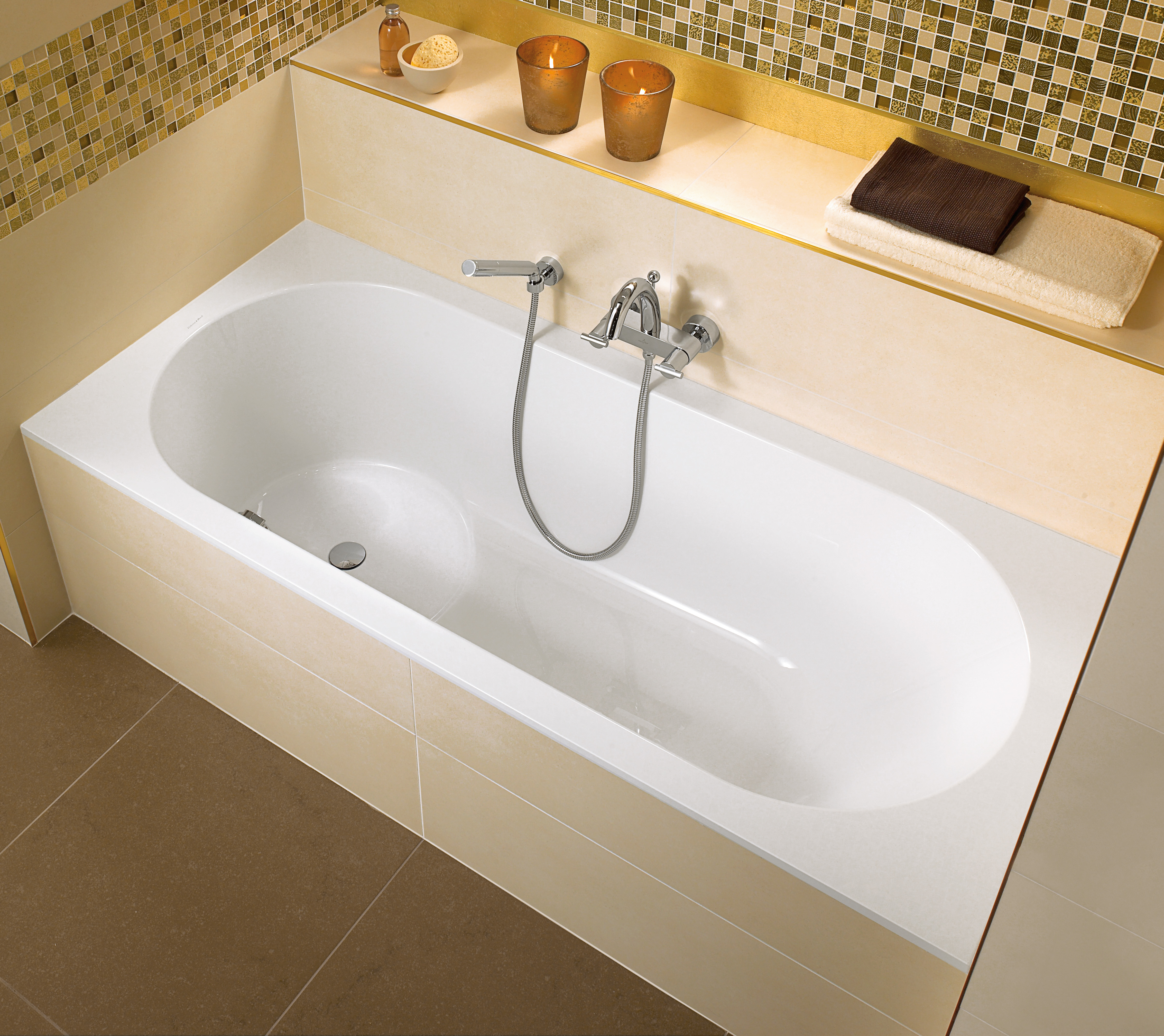

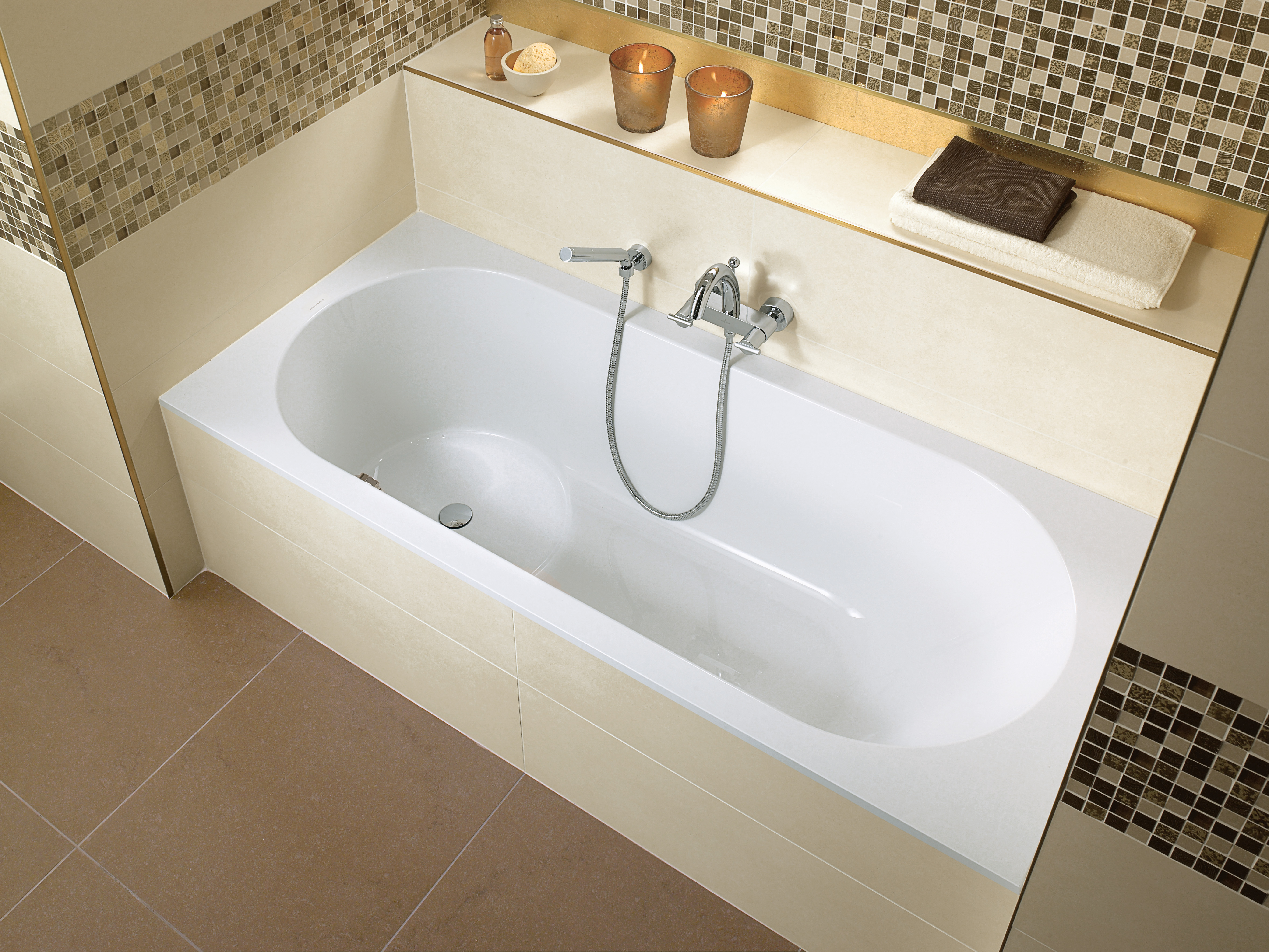

Libra Rectangular bath, 1800x800mm, White Alpin

Libra Rectangular bath, 1800x800mm, White Alpin
Libra Rectangular bath, 1800x800mm, White Alpin
Libra Rectangular bath, 1800x800mm, White Alpin
Libra Rectangular bath, 1800x800mm, White Alpin
Libra Rectangular bath, 1800x800mm, White Alpin
Libra Rectangular bath, 1800x800mm, White Alpin
View

Rectangular bath

Libra

SPECIFICATION TEXTS

UBQ180LIB2V-01

Libra Rectangular bath, 1800x800mm, White Alpin

SIZE AND SHAPE :
Width in mm
800
Length in mm
1800
Height in mm
490
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
built-in installation
Installation height
Bath: 600 - 650 mm Profibox 2.0 without system: 585 - 585 mm Profibox 2.0 incl. System: 625 - 665 mm
Interior depth
465
Outlet / outlet
outlet at the foot end
Material
Quaryl®
Colour name
White Alpin
With feet/base
Yes
With panel
No
With overflow
Yes
Water content
250
Capacity incl. 1 pers
175
Number of people
1
For handle mounting
Yes
Anti-slip class
Anti-slip class A
Seat unit
1
Article number:

UBQ180LIB2V-01

availability:

    Libra

    Rectangular bath

    Technical information
    back

    Technical information

    Article title

    Libra Rectangular bath, 1800x800mm, White Alpin

    Article number

    UBQ180LIB2V-01

    Assembly / Assembly type

    built-in installation

    Scope of delivery

    1 x rectangular bath

    1 x holesaw (for drilling the overflow hole)

    2 x bath support frame (self-adhesive), adjustable from 130 - 180 mm

    Ordering information

    Overflow hole possible in one of 3 different positions. Holesaw (for drilling the overflow hole) included.

    Length in mm

    1800

    Width in mm

    800

    Height in mm

    490

    Installation height

    Bath: 600 - 650 mm

    Profibox 2.0 without system: 585 - 585 mm

    Profibox 2.0 incl. System: 625 - 665 mm

    Interior depth

    465

    Collection

    Libra

    Weight in kg

    44,70

    Outlet / outlet

    outlet at the foot end

    Material

    Quaryl®

    Colour name

    White Alpin

    With feet/base

    Yes

    With panel

    No

    With overflow

    Yes

    Water content

    250

    Capacity incl. 1 pers

    175

    Number of people

    1

    For handle mounting

    Yes

    Anti-slip class

    Anti-slip class A

    Seat unit

    1

    EAN number

    8712335287804

    Model number

    UBQ180LIB2V

    accessories
    back

    accessories

    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    Villeroy & Boch Accessories Waste/overflow combination, 200x315x130mm, White Alpin
    Collection Accessories
    Product designation Waste/overflow combination
    Article number U909604-01
    Dimension 200 x 315 x 130 mm
    Villeroy & Boch Accessories Outlet/overflow fitting with water inlet, 200x465x130mm, White Alpin
    Collection Accessories
    Product designation Outlet/overflow fitting with water inlet
    Article number U909603-01
    Dimension 200 x 465 x 130 mm
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
    Spareparts
    back

    Spareparts

    Villeroy & Boch Accessories Handgrips, 80x250x30mm, Chrome
    Collection Accessories
    Product designation Handgrips
    Article number U90170061
    Dimension 80 x 250 x 30 mm
    Villeroy & Boch Spare parts Adapter für Rohrunterbrecher, 30x57mm
    Product designation Adapter for pipe interrupter
    Article number UCWAS0350
    Villeroy & Boch Spare parts Set Ablassventil, 100x100mm
    Product designation Drain valve set
    Article number UCWAS0364
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0359-61
    Villeroy & Boch Spare parts Bedieneinheit Abfluss / Überlauf, 105x115mm
    Product designation Control unit drain / overflow
    Article number UCWAS0360-61
    Villeroy & Boch Spare parts Sichtbare Teile Rohrunterbrecher, 75x85mm
    Product designation Visible parts pipe interrupter
    Article number UCCON0454
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Bali
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LK
    Dimension 150 x 240 x 50 mm
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, Peru
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100LL
    Dimension 150 x 240 x 50 mm
    Villeroy & Boch Accessories Multifunction cushion, 150x240x50mm, anthracite
    Collection Accessories
    Product designation Multifunction cushion
    Article number U906100PA
    Dimension 150 x 240 x 50 mm
    Villeroy & Boch Accessories Waste/overflow combination, 200x315x130mm, Chrome
    Collection Accessories
    Product designation Waste/overflow combination
    Article number U90960461
    Dimension 200 x 315 x 130 mm
    Villeroy & Boch Accessories Outlet/overflow fitting with water inlet, 200x465x130mm, Chrome
    Collection Accessories
    Product designation Outlet/overflow fitting with water inlet
    Article number U90960361
    Dimension 200 x 465 x 130 mm
    Villeroy & Boch Accessories Rohrunterbrecher Set, 450x465x90mm
    Collection Accessories
    Product designation Pipe interrupter set
    Article number UCCON0963
    Dimension 450 x 465 x 90 mm
