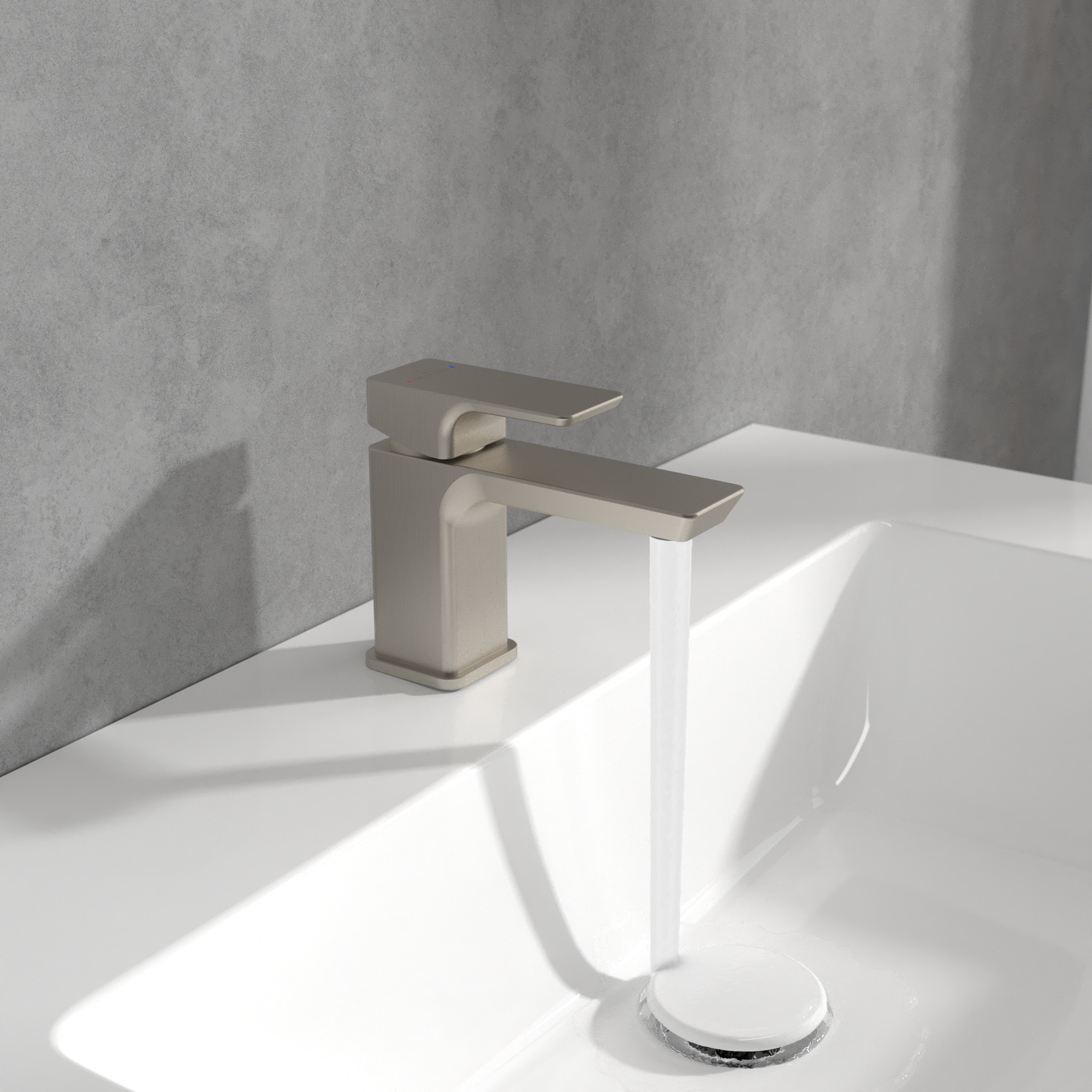

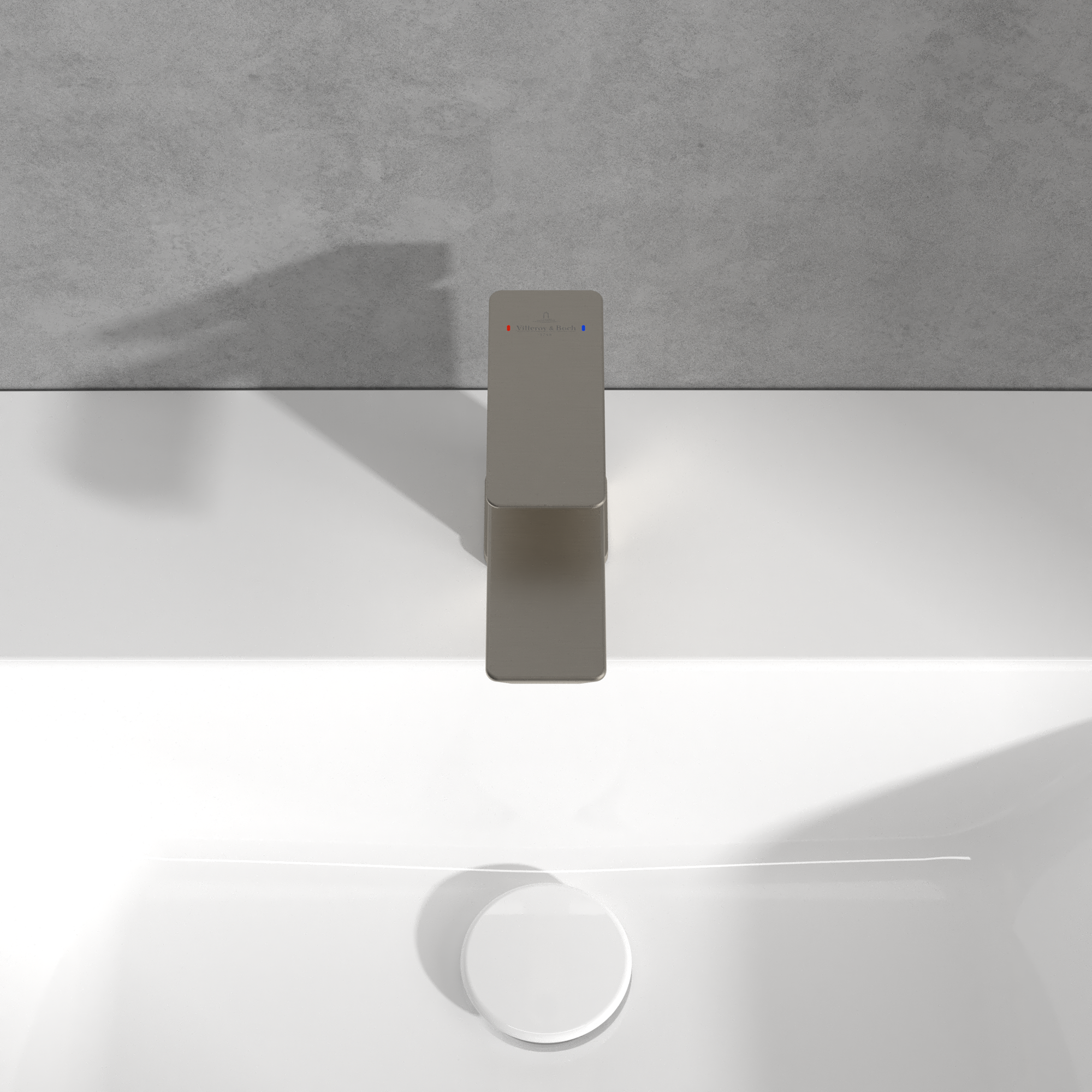

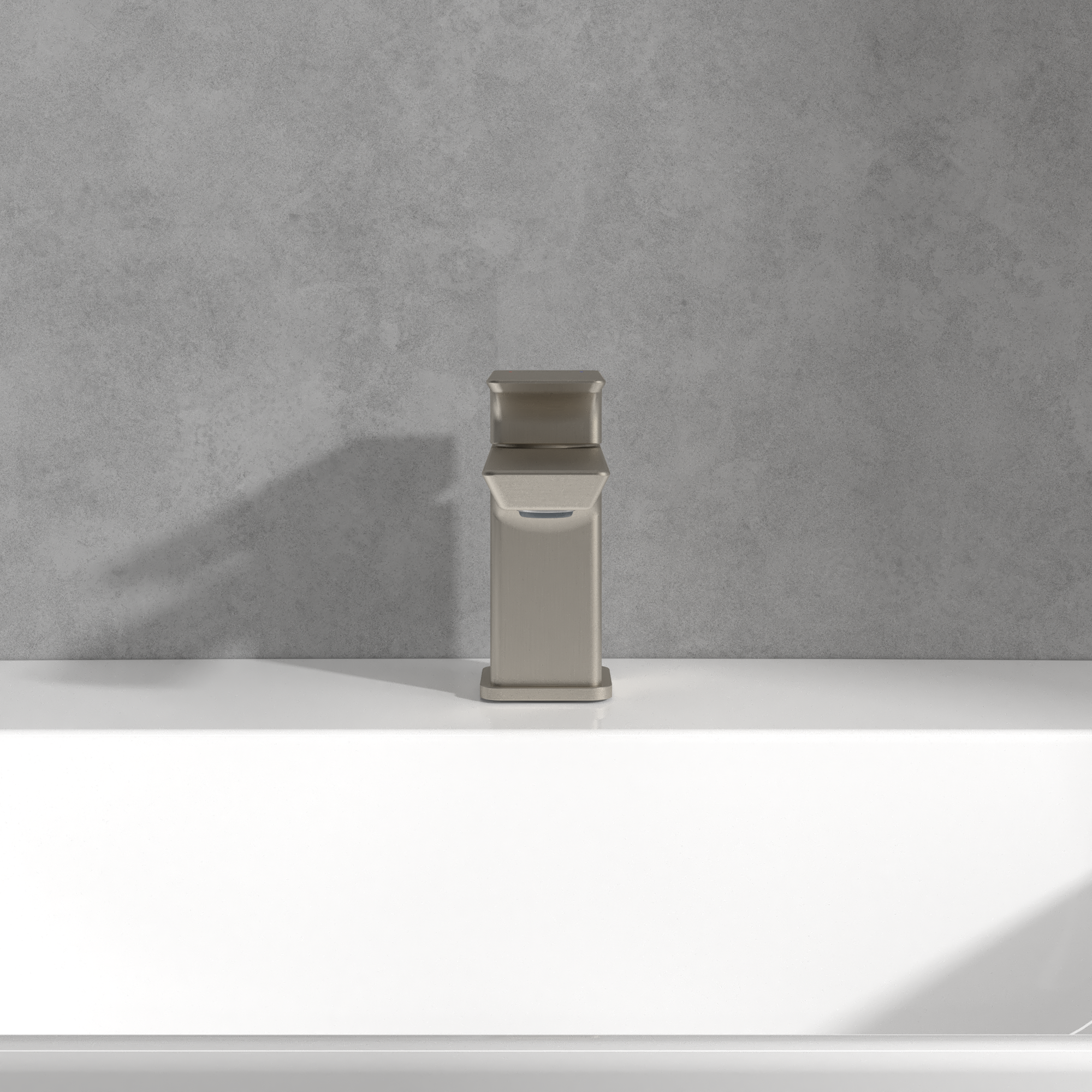

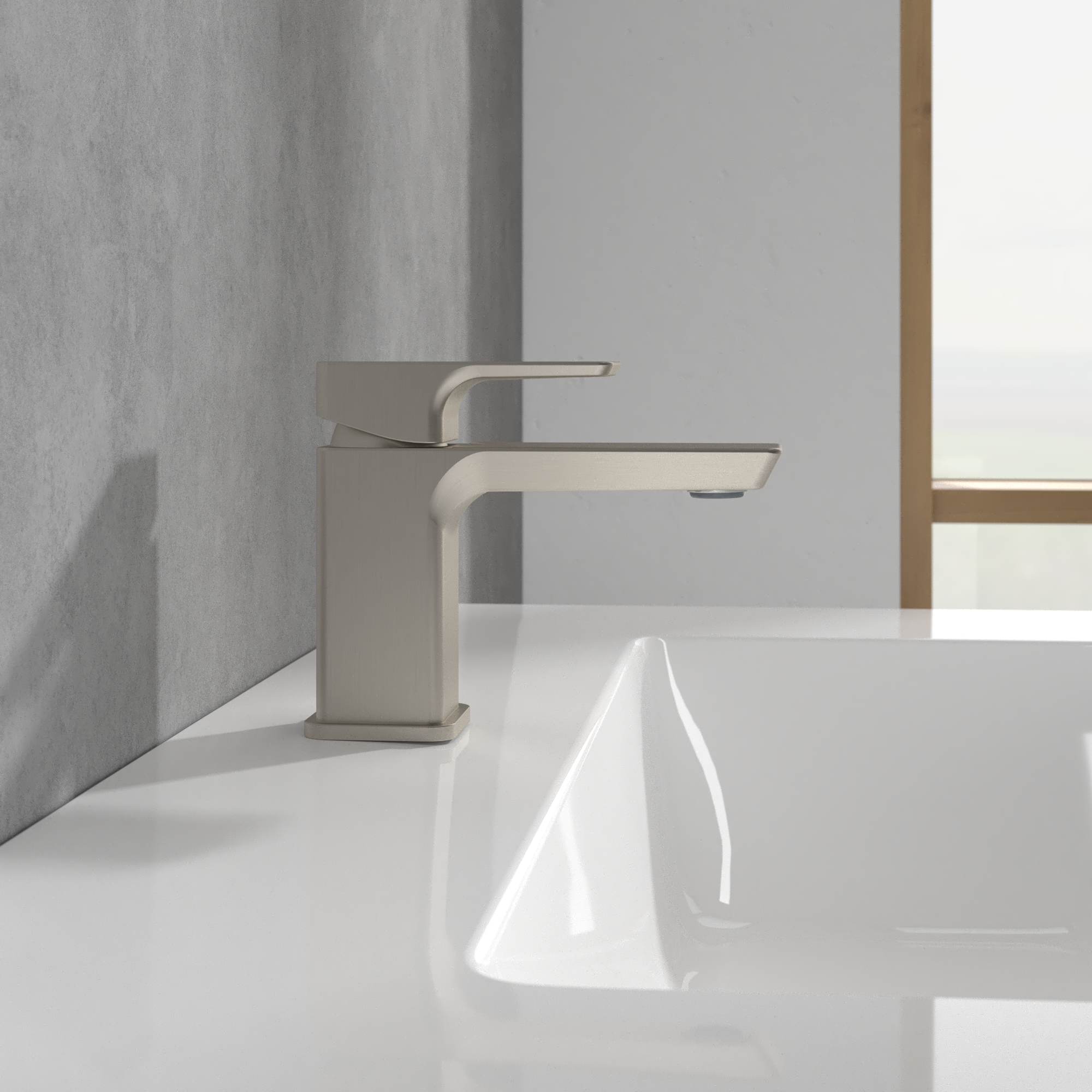

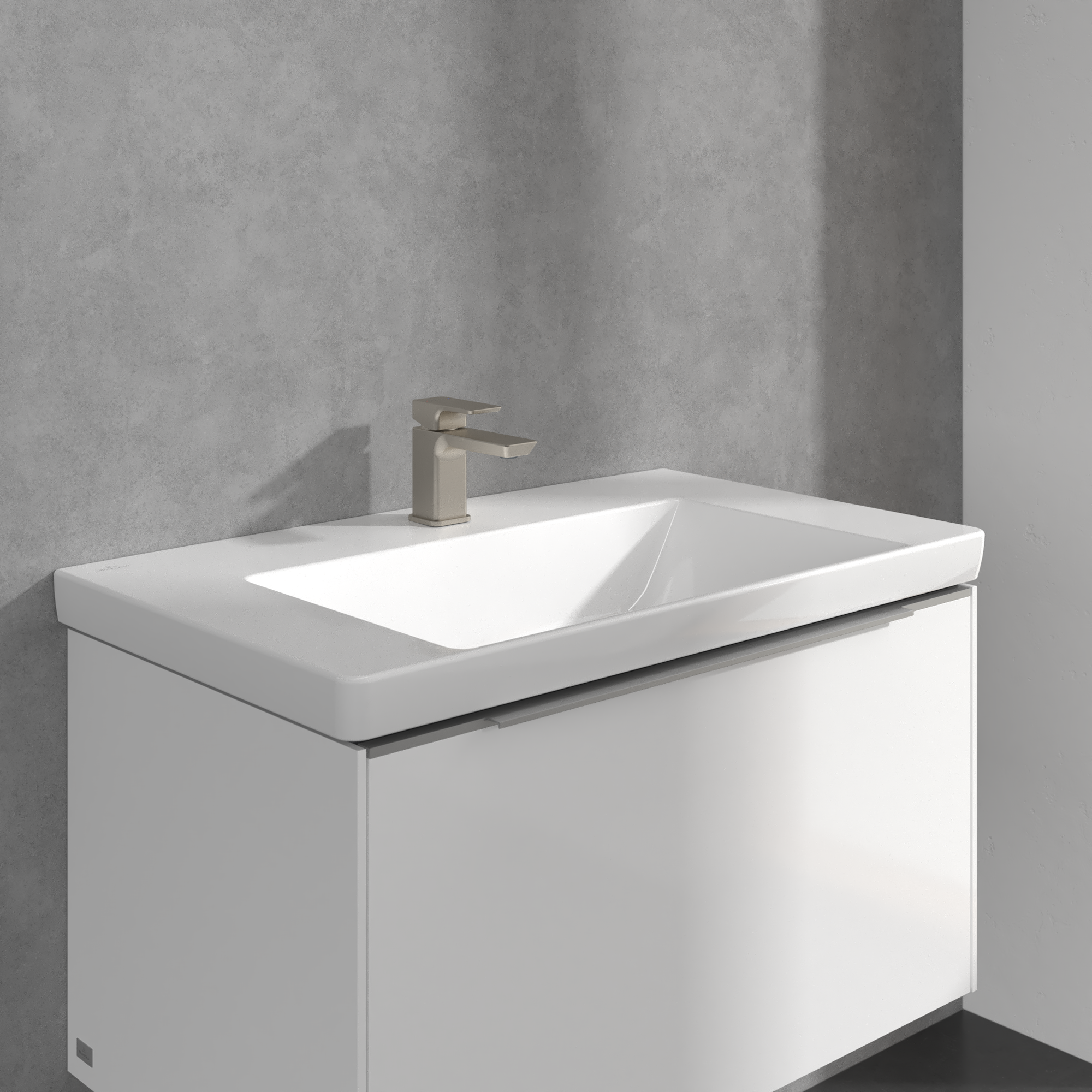

Single-lever basin mixer

Subway 3.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

TVW11200100164

Subway 3.0 Single-lever basin mixer, Without waste, Brushed Nickel Matt

SIZE AND SHAPE :
Width in mm
43
Length in mm
154
Height in mm
125
Form
Angular
COLOUR AND SURFACE :
Colour designation
Brushed Nickel Matt
PROPERTIES :
Assembly / Assembly type
Deck-mounted
Material
Brass
Colour name
Brushed Nickel Matt

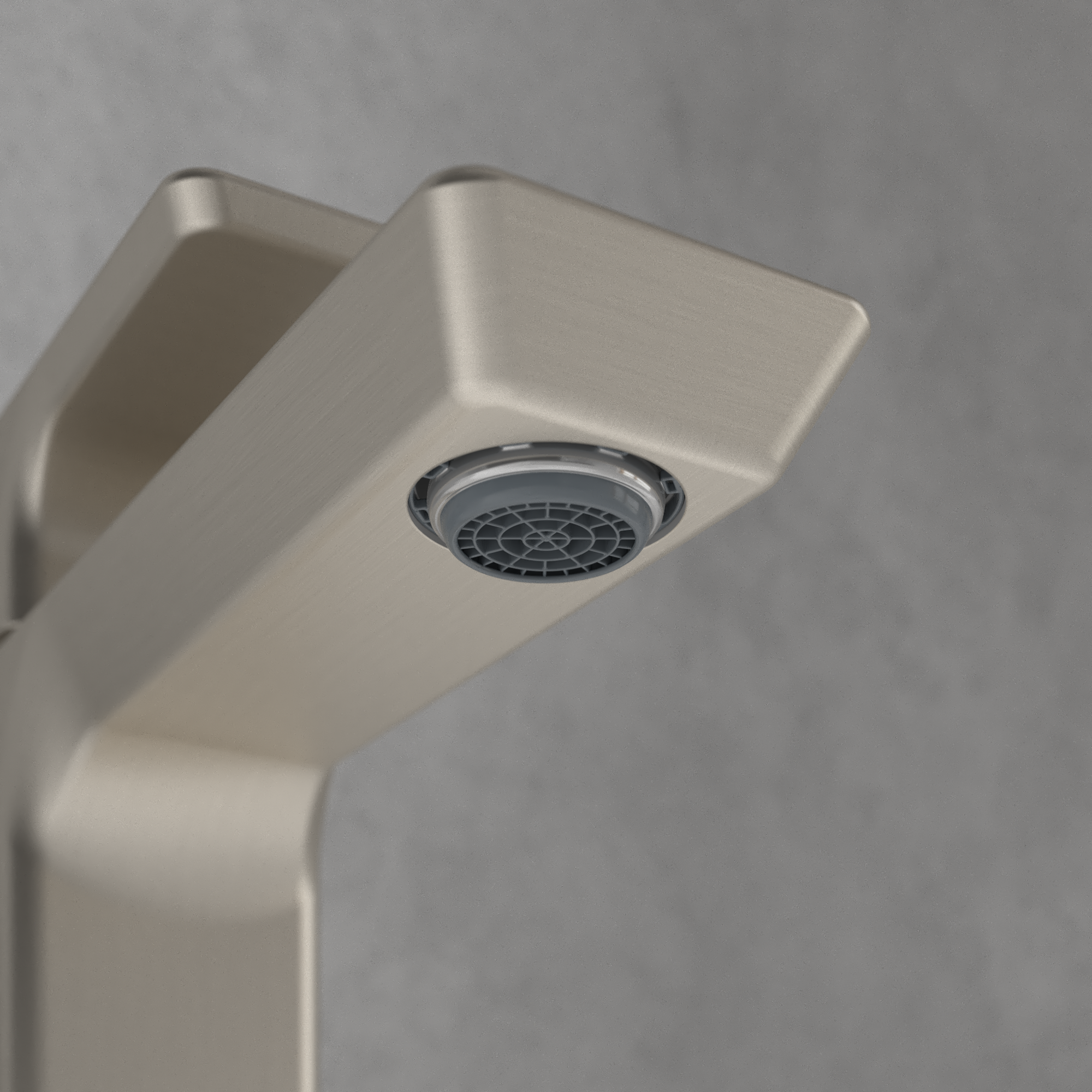

Air plus
An aerator enriches the water with air for a particularly soft, water-saving jet
Easy clean
Longer service life: optimum limescale removal by simply rubbing nozzles and aerators clean
Aqua smart
Sustainable, limited water flow: saving water without sacrificing on performance
Tap smartpressure
Constant water flow rate for washbasin mixers regardless of pressure fluctuations in the piping system
Length of spout in mm
112
General information
With adjustable aerator
Material
Brass
Volume
7.935
Angle jet regulator
4
Cartridge
Cartridge with ceramic discs
Handle position
Top
Number of tap holes
1
Diameter of faucet body
43
Water regulation
Water temperature is regulated 45° to each side
Thermostat
No
Cool Tap
No
Spray types
Comfort jet
Article number:

TVW11200100164

availability:
    Subway 3.0

    Single-lever basin mixer

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Single-lever basin mixer, Without waste, Brushed Nickel Matt

    Article number

    TVW11200100164

    Assembly / Assembly type

    Deck-mounted

    Scope of delivery

    1 x tap fitting

    1 x aerator key

    1 x outlet fitting

    1 x fastening

    2 x connecting hoses

    1 x installation instructions

    Length in mm

    154

    Width in mm

    43

    Height in mm

    125

    Collection

    Subway 3.0

    Weight in kg

    1,28

    Material

    Brass

    Colour name

    Brushed Nickel Matt

    EAN number

    4065467349884

    Model number

    TVW112001001

    Air plus

    An aerator enriches the water with air for a particularly soft, water-saving jet

    Easy clean

    Longer service life: optimum limescale removal by simply rubbing nozzles and aerators clean

    Aqua smart

    Sustainable, limited water flow: saving water without sacrificing on performance

    Tap smartpressure

    Constant water flow rate for washbasin mixers regardless of pressure fluctuations in the piping system

    Length of spout in mm

    112

    General information

    With adjustable aerator

    Material

    Brass

    Volume

    7.935

    Angle jet regulator

    4

    Cartridge

    Cartridge with ceramic discs

    Handle position

    Top

    Number of tap holes

    1

    Diameter of faucet body

    43

    Water regulation

    Water temperature is regulated 45° to each side

    Thermostat

    No

    Cool Tap

    No

    Spray types

    Comfort jet

    accessories
