Technical information
Article title

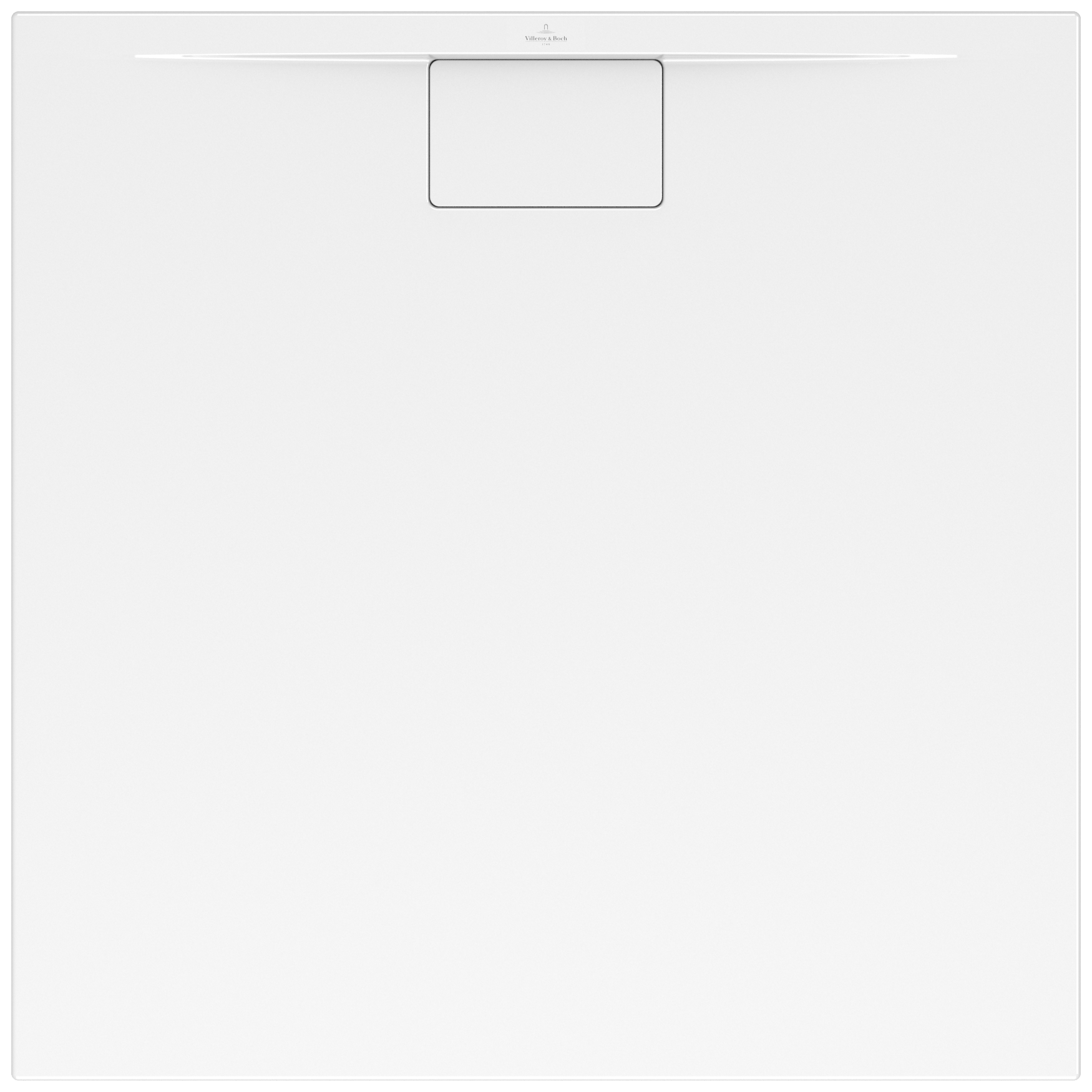

Architectura MetalRim Square shower tray, 1000x1000x48mm, White Alpin
Article number
UDA1010ARA148GV-01
Assembly / Assembly type
Surface-mounted
Corner installation
flush-fitting installation
Installation on a base
Assembly instructions

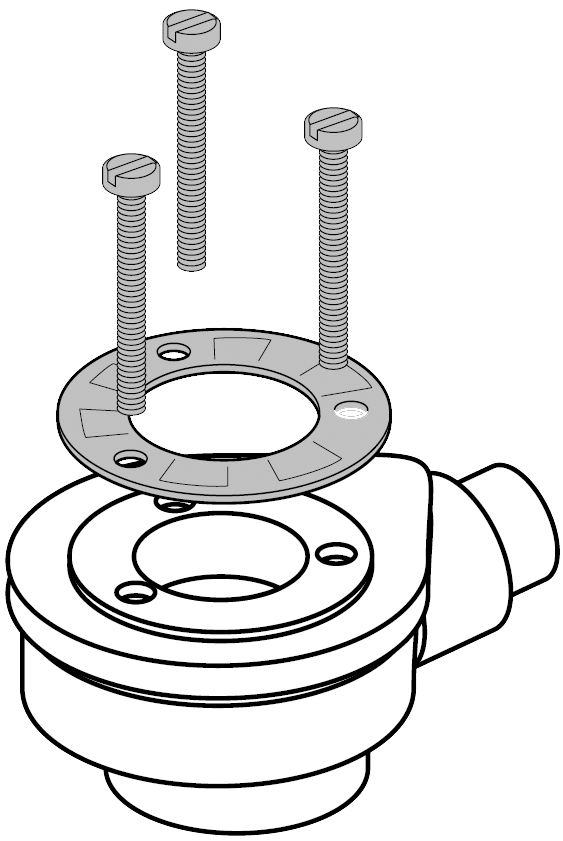

The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274.
Drainage rate in l/min
53
Scope of delivery
1 x square shower tray
1 x outlet cover in White Alpine (01), for matt colours, outlet cover in matching matt colours.
Ordering information
Supplied without support frame / base.
Length in mm
1000
Width in mm
1000
Height in mm
48
Interior depth
19
Collection
Architectura
Weight in kg
18,00
Material
Acrylic
Colour name
White Alpin
With feet/base
No
Other material
Outlet cover: Acrylic
Other surfaces
Outlet cover: glossy
With bath support
No
Anti-slip class
Anti-slip class C
EAN number
4051202294212
Model number
UDA1010ARA148GV
