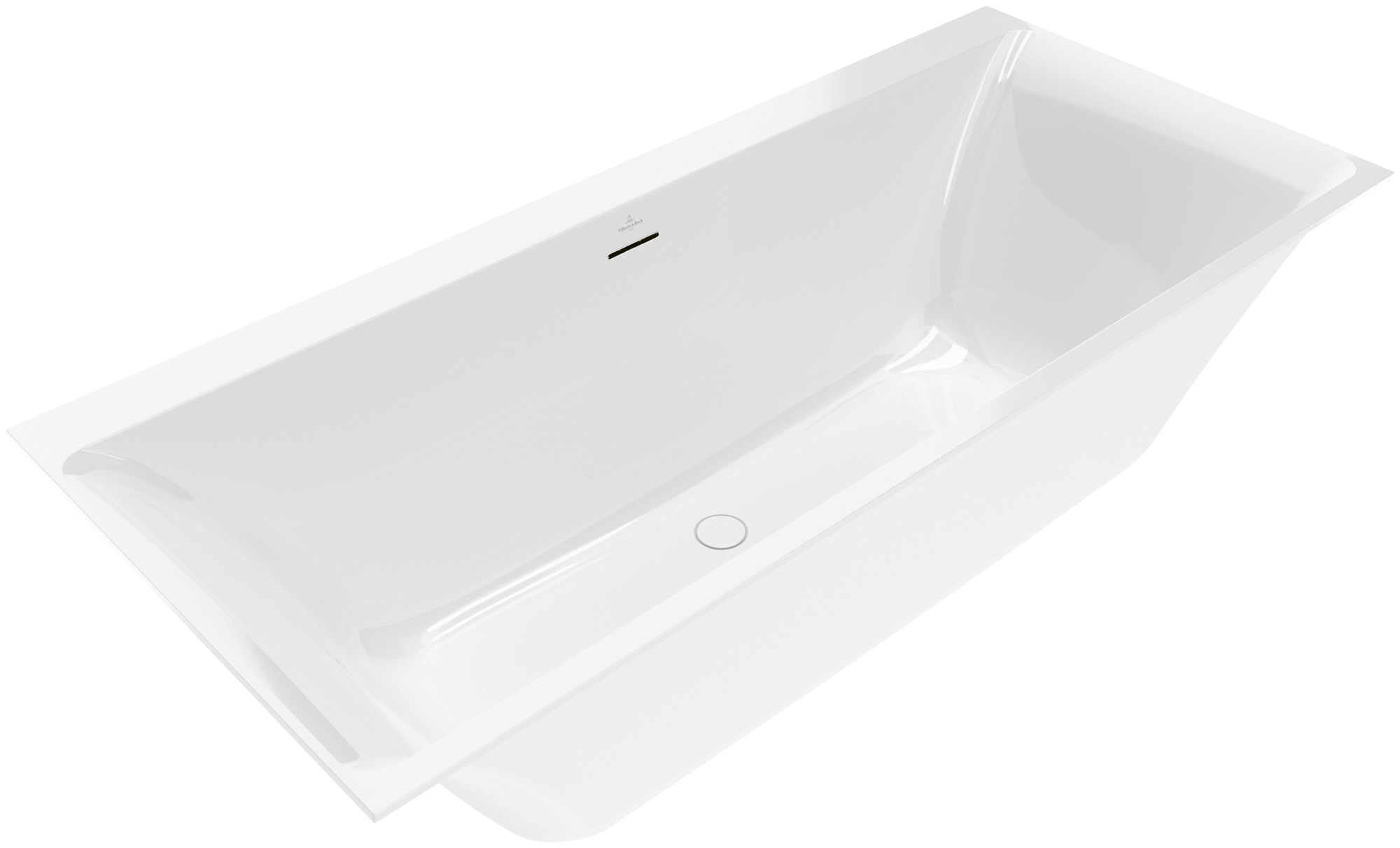

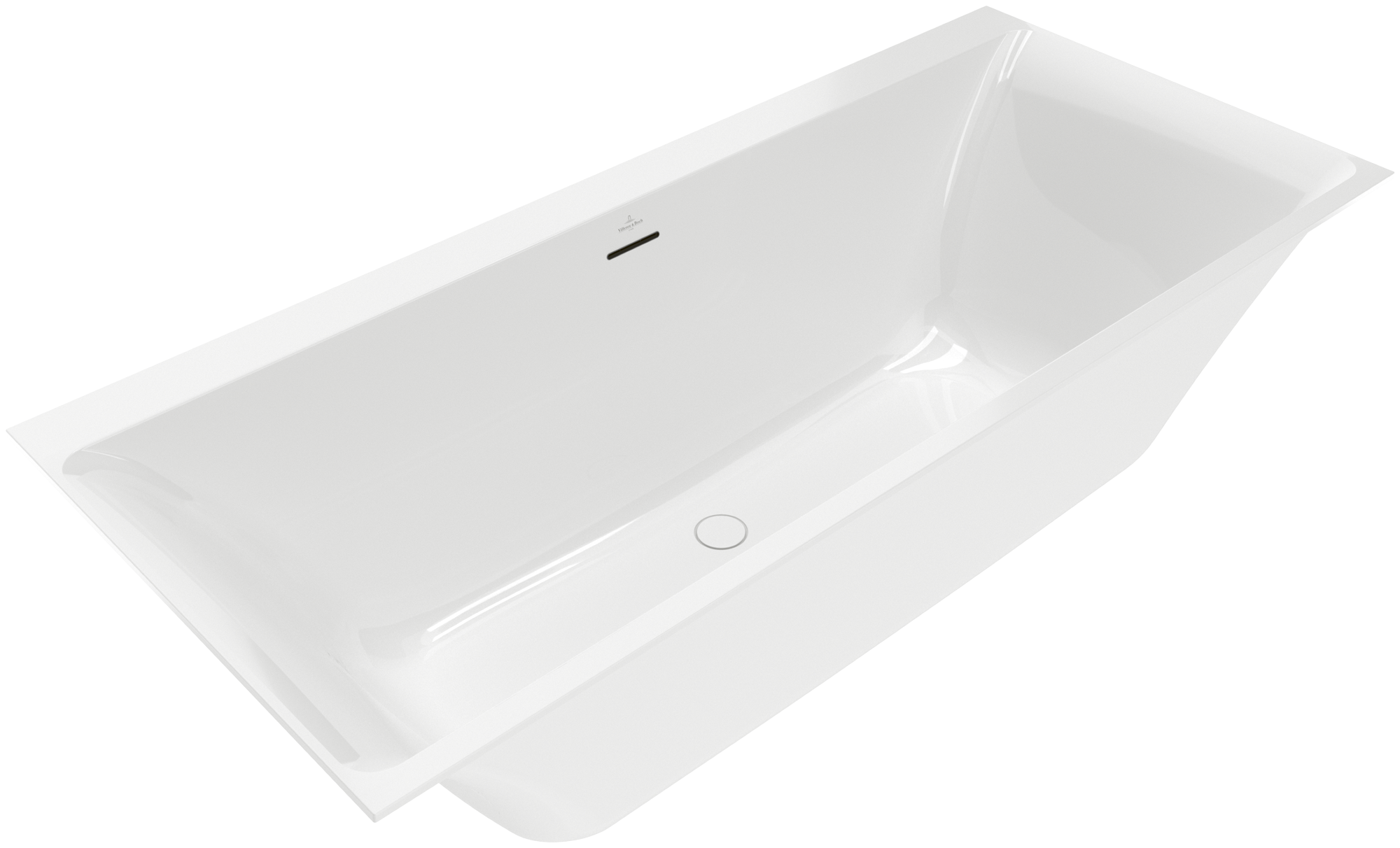

Subway 3.0 Rectangular bath, 1800x800mm, White Alpin

Subway 3.0 Rectangular bath, 1800x800mm, White Alpin Subway 3.0 Rectangular bath, 1800x800mm, White Alpin Subway 3.0 Rectangular bath, 1800x800mm, White Alpin Subway 3.0 Rectangular bath, 1800x800mm, White Alpin Subway 3.0 Rectangular bath, 1800x800mm, White Alpin Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
Subway 3.0 Rectangular bath, 1800x800mm, White Alpin
View

Rectangular bath

Subway 3.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

UBQ180SBW2TDV-01

Subway 3.0 Rectangular bath, 1800x800mm, White Alpin

SIZE AND SHAPE :
Width in mm
800
Length in mm
1800
Height in mm
480
Form
Rectangle
COLOUR AND SURFACE :
Colour designation
White Alpin
PROPERTIES :
Assembly / Assembly type
built-in installation
Assembly instructions
There is no space for a tap hole behind the overflow. 2 holes are possible to the left or right respectively of the overflow hole
Installation height
Bath: 610 - 660 mm Whirlpool system: 645 - 680 mm Profibox 2.0 without system: 625 - 625 mm
Interior depth
480
Outlet / outlet
central outlet
Material
Quaryl®
Colour name
White Alpin
With feet/base
Yes
With panel
No
Other material
Other surfaces
Outlet cover: glossy Overflow: glossy
With overflow
Yes
Water content
294
Capacity incl. 1 pers
219
Number of people
2
For handle mounting
Yes
Anti-slip class
Anti-slip class A
Following systems are available
[AC] Airpools [AE] Airpools [AP] Specialpools [CC] Combipools [CE] Combipools [HC] Hydropools [HE] Hydropools
Seat unit
2
Article number:

UBQ180SBW2TDV-01

availability:
    Subway 3.0

    Rectangular bath

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Rectangular bath, 1800x800mm, White Alpin

    Article number

    UBQ180SBW2TDV-01

    Assembly / Assembly type

    built-in installation

    Assembly instructions

    There is no space for a tap hole behind the overflow.

    2 holes are possible to the left or right respectively of the overflow hole

    Scope of delivery

    1 x rectangular bath

    2 x bath support frame (self-adhesive), adjustable from 130 - 180 mm

    1 x matching outlet and overflow. The outlet cover matches the colour of the bath, the overflow is chrome-plated.

    1 x Quiet filling of the bath tub with the SilentFlow feature in the base of the bath. This cannot be ordered at a later date!

    The visible parts match the colour of the bath.

    Length in mm

    1800

    Width in mm

    800

    Height in mm

    480

    Installation height

    Bath: 610 - 660 mm

    Whirlpool system: 645 - 680 mm

    Profibox 2.0 without system: 625 - 625 mm

    Interior depth

    480

    Collection

    Subway 3.0

    Weight in kg

    43,20

    Outlet / outlet

    central outlet

    Material

    Quaryl®

    Colour name

    White Alpin

    With feet/base

    Yes

    With panel

    No

    Other material

    • Outlet cover: Plastic

    • Overflow: Plastic

    Other surfaces

    Outlet cover: glossy

    Overflow: glossy

    With overflow

    Yes

    Water content

    294

    Capacity incl. 1 pers

    219

    Number of people

    2

    For handle mounting

    Yes

    Anti-slip class

    Anti-slip class A

    Following systems are available

    [AC] Airpools

    [AE] Airpools

    [AP] Specialpools

    [CC] Combipools

    [CE] Combipools

    [HC] Hydropools

    [HE] Hydropools

    Seat unit

    2

    EAN number

    4062373881866

    Model number

    UBQ180SBW2TDV
