Vanity unit

Subway 3.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

C574L2VQ

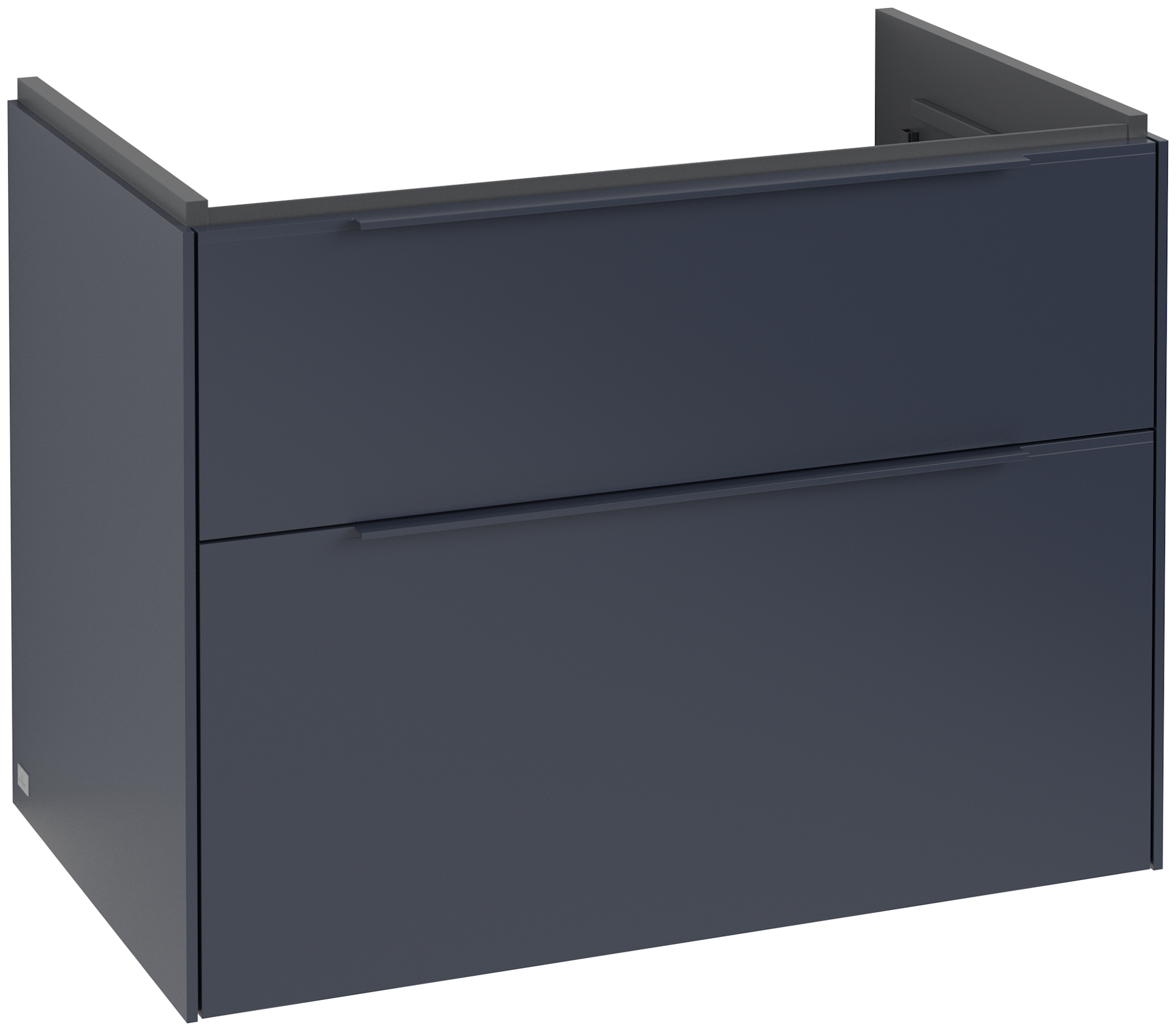

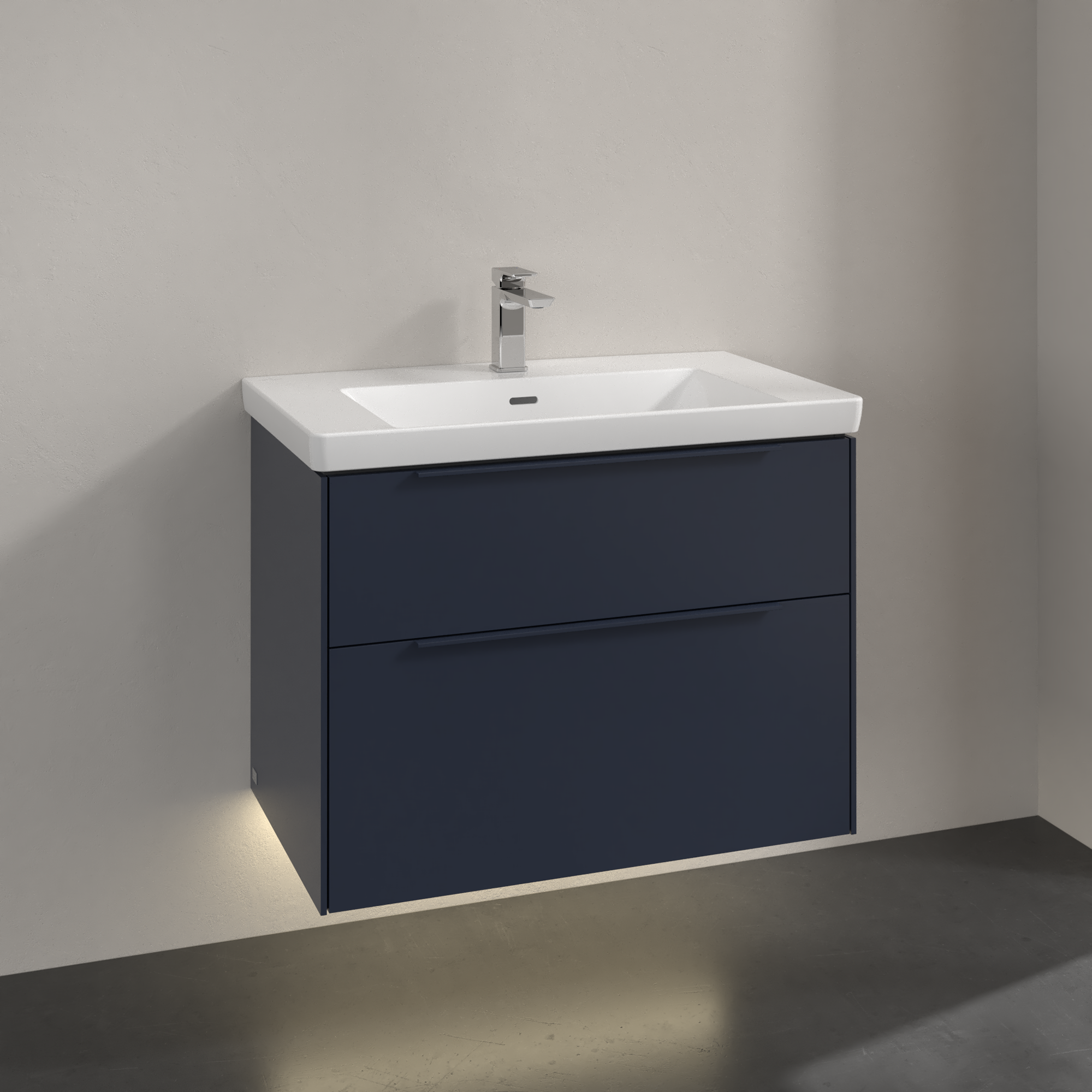

Subway 3.0 Vanity unit, with lighting, 2 pull-out compartments, 772x576x462mm, Body: Marine Blue, Front: Marine Blue

SIZE AND SHAPE :
Width in mm
772
Height in mm
576
Form
Angular
COLOUR AND SURFACE :
Colour designation
Marine Blue
Colour designation of front/body
Marine Blue
PROPERTIES :
Assembly / Assembly type
wall-mounted
Type of opening

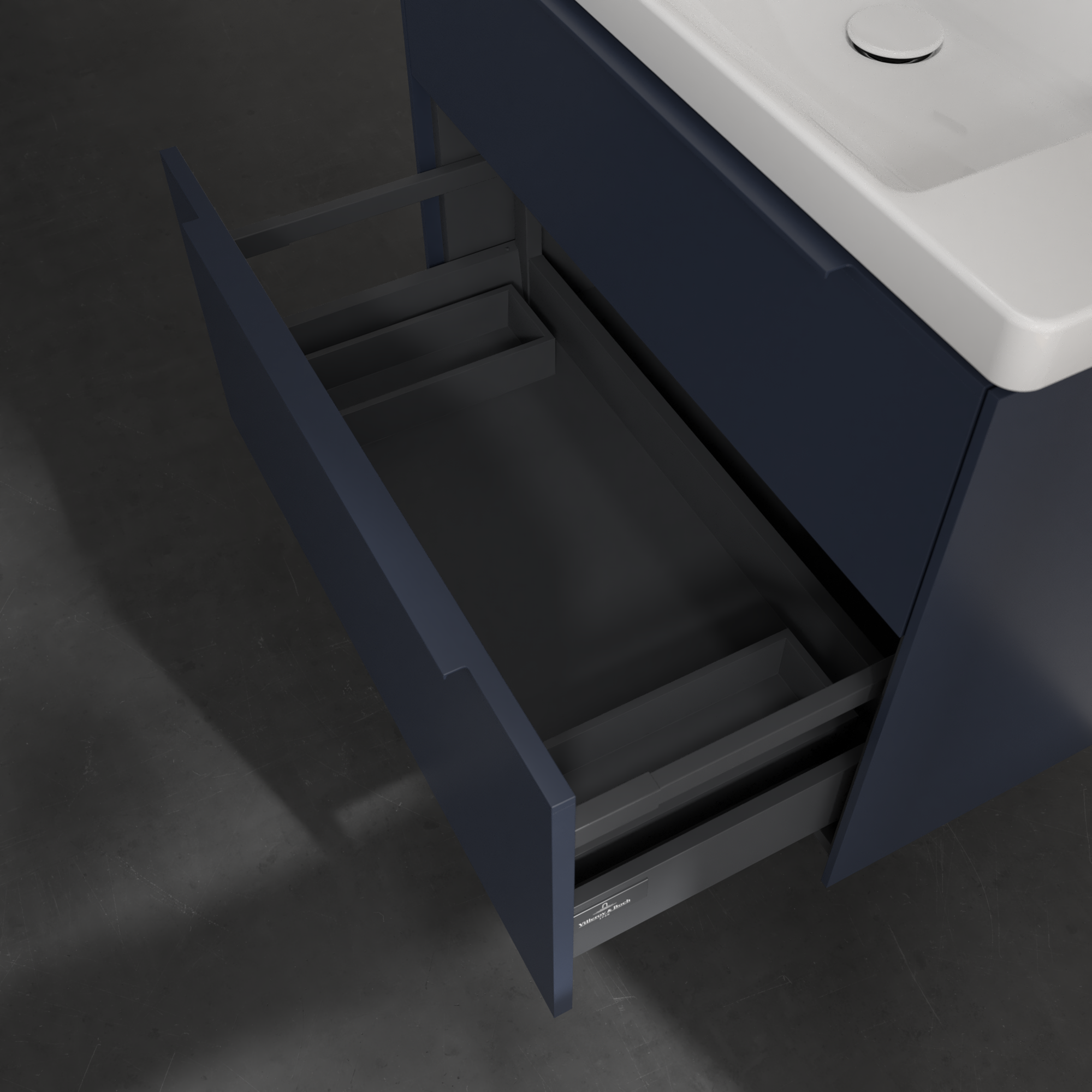

2 pull-out compartments
Equipment

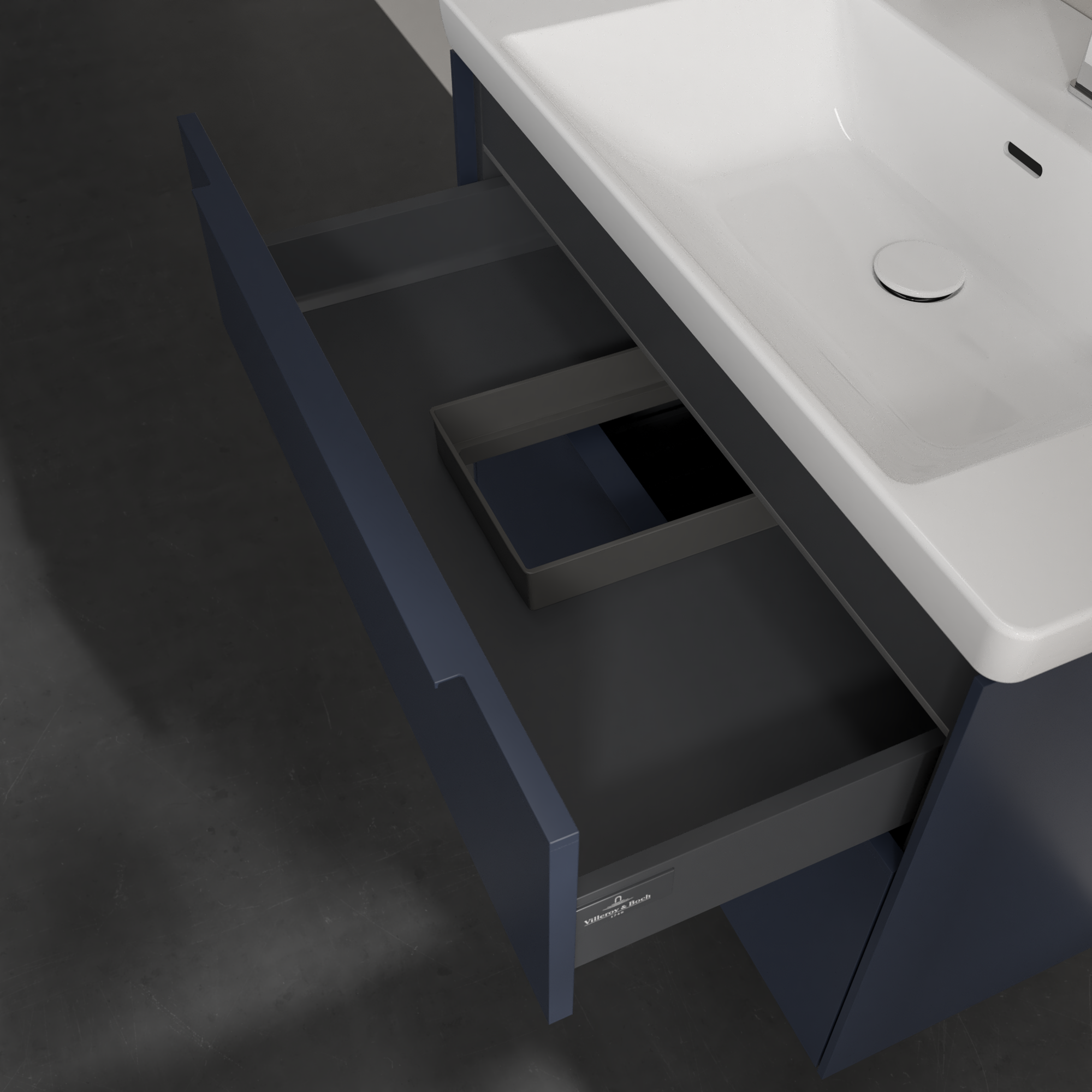

2 x pull-out compartment with non-slip mat 2 x accessory dish (small)
Position of washbasin
washbasin on the middle
Depth in mm
462
Depth with handle mm
478
Depth without handle mm
462
Suitable for
selected vanity washbasins
Function
Colour name
Marine Blue
Material front
Chipboard
Surface of front
matt
Material body
Chipboard
Surface of body
matt
Other material
Handle: aluminium
Other surfaces
Handle: matt
Operating mode
Mains-operated
Energy detection
This light contains replaceable LED lamps. The lamps in the light can be replaced.
Lighting
2x LED
Power of lamp
1 x LED / 5,04 W, 1 x LED / 9 W
Light colour (designation & colour temperature)
4000 K (neutral white)
Lighting control
when opening the drawer, with sensor dimmer, dimmable
Degree of protection
IP 44
Type of handles
Handle
Lightingvariants

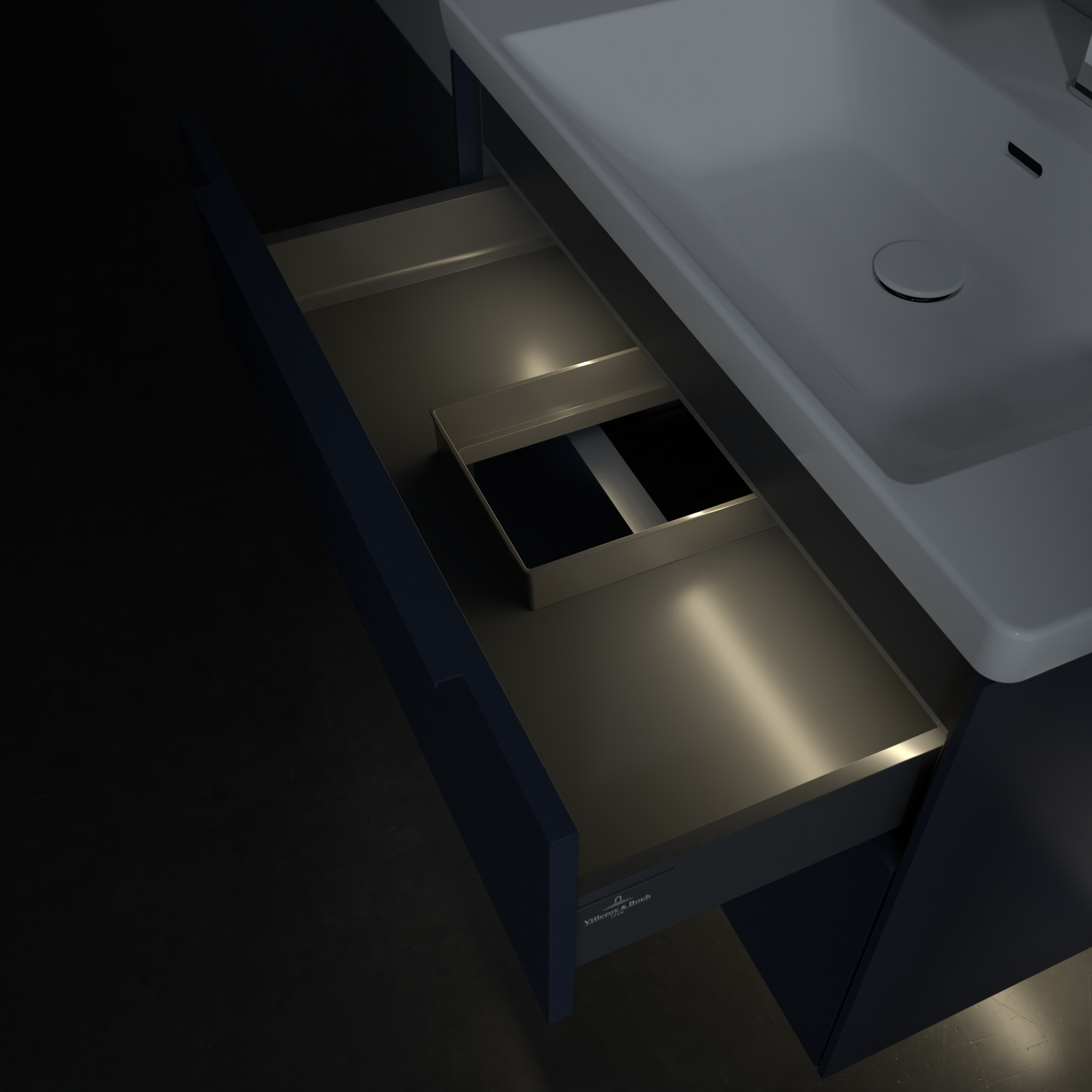

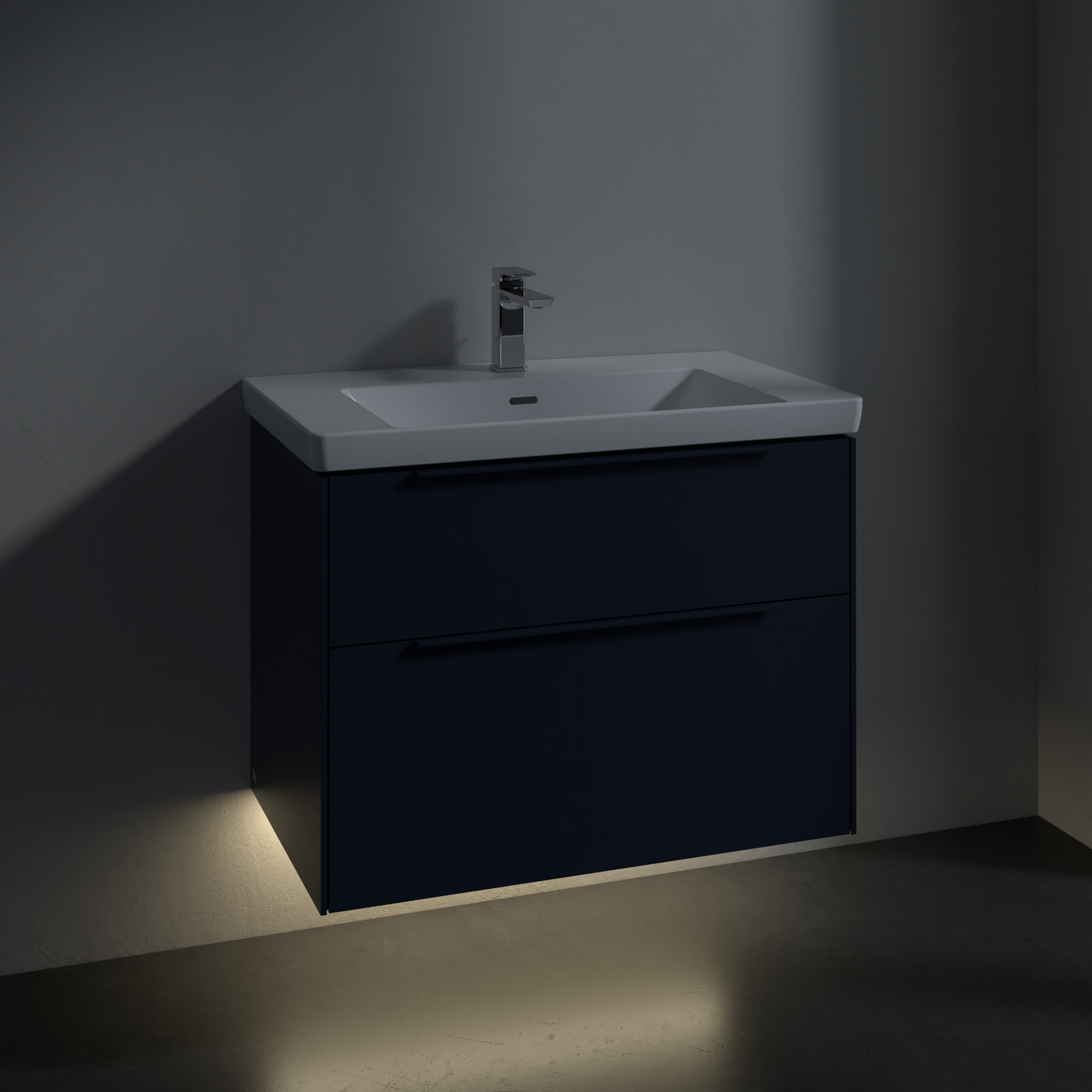

with LED floor lighting with LED pull-out lighting
Article number:

C574L2VQ

availability:
    Subway 3.0

    Vanity unit

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Vanity unit, with lighting, 2 pull-out compartments, 772x576x462mm, Body: Marine Blue, Front: Marine Blue

    Article number

    C574L2VQ

    Assembly / Assembly type

    wall-mounted

    Type of opening

    2 pull-out compartments

    Equipment

    2 x pull-out compartment with non-slip mat

    2 x accessory dish (small)

    Scope of delivery

    1 x vanity unit

    1 x fastening set

    Position of washbasin

    washbasin on the middle

    Depth in mm

    462

    Width in mm

    772

    Height in mm

    576

    Depth with handle mm

    478

    Depth without handle mm

    462

    Collection

    Subway 3.0

    Weight in kg

    32,71

    express delivery

    No

    Suitable for

    selected vanity washbasins

    Function

    • with automatic lowering mechanism (SoftClosing)

    • with lighting

    Colour name

    Marine Blue

    Material front

    Chipboard

    Surface of front

    matt

    Material body

    Chipboard

    Surface of body

    matt

    Other material

    Handle: aluminium

    Other surfaces

    Handle: matt

    Operating mode

    Mains-operated

    Energy detection

    This light contains replaceable LED lamps.

    The lamps in the light can be replaced.

    Lighting

    2x LED

    Power of lamp

    1 x LED / 5,04 W, 1 x LED / 9 W

    Light colour (designation & colour temperature)

    4000 K (neutral white)

    Lighting control

    when opening the drawer, with sensor dimmer, dimmable

    Degree of protection

    IP 44

    Type of handles

    Handle

    EAN number

    4062373830062

    Model number

    C574L2

    Lightingvariants

    with LED floor lighting

    with LED pull-out lighting

    Suitable products
    back

    Suitable products

    Villeroy & Boch Subway 3.0 Vanity washbasin, 800x470x165mm, without overflow, White Alpin
    Collection Subway 3.0
    Product designation Vanity washbasin
    Article number 4A708301
    Dimension 800 x 470 x 165 mm
    to product detail
    Villeroy & Boch Subway 3.0 Vanity washbasin, 800x470x165mm, with overflow, White Alpin
    Collection Subway 3.0
    Product designation Vanity washbasin
    Article number 4A708001
    Dimension 800 x 470 x 165 mm
    to product detail
    Villeroy & Boch Subway 3.0 Vanity washbasin, 800x470x165mm, without overflow, White Alpin
    Collection Subway 3.0
    Product designation Vanity washbasin
    Article number 4A708101
    Dimension 800 x 470 x 165 mm
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Subway-3-0-C574L2-II-v00-60516-en.pdf
    Technical drawing

    VB-Subway-3-0-C574L2-2D01-v00-58003.pdf

    Planning information

    2-D data

    VB-Subway-3-0-C574L2-2D01-v00-58003.eps
    3-D data

    VB-Subway-3-0-C574L2-3D01-v00-58004.dwg
    3-D data

    VB-Subway-3-0-C574L2-3D01-v00-58004.stp
    BIM data

    Item documentation

    Spare parts list

    VB-Subway-3-0-C574L2-SPS-v00-58005-en.pdf

    Use & care

    Care instructions

    VB-Subway-3-0-C574L2-CI-v00-67449-en.pdf
