Vanity unit

Subway 3.0

SPECIFICATION TEXTS Technical data sheet All downloads

SPECIFICATION TEXTS

C580L0RK

Subway 3.0 Vanity unit, with lighting, 1 pull-out compartment, 473x429x392mm, Body: Stone Oak, Front: Stone Oak

SIZE AND SHAPE :
Width in mm
473
Height in mm
429
Form
Angular
COLOUR AND SURFACE :
Colour designation
Stone Oak
Colour designation of front/body
Stone Oak
PROPERTIES :
Assembly / Assembly type
wall-mounted
Type of opening
1 pull-out compartment
Equipment

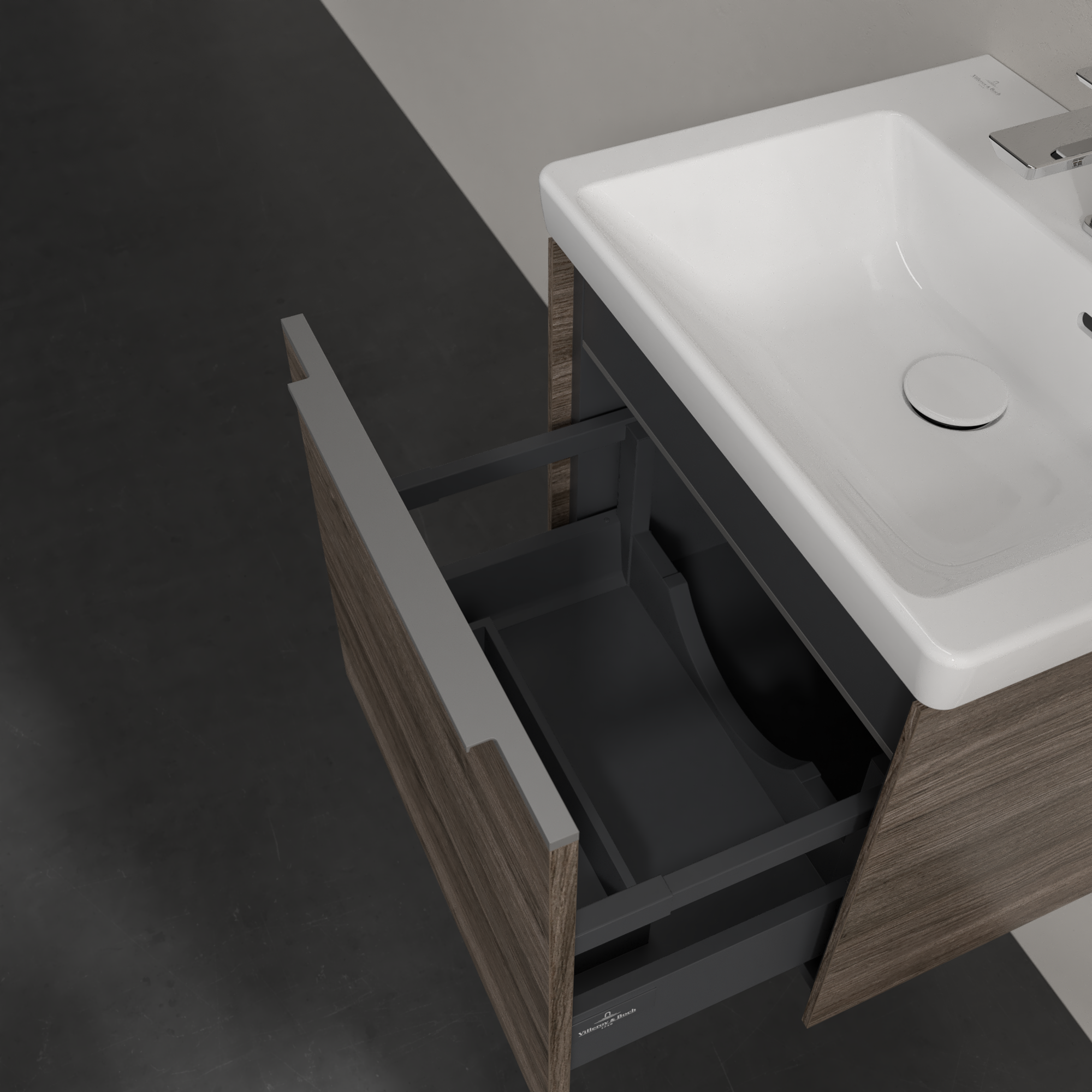

1 x pull-out compartment with non-slip mat 1 x accessory dish (small)
Position of washbasin
washbasin on the middle
Depth in mm
392
Depth with handle mm
408
Depth without handle mm
392
Suitable for
selected handwashbasins
Function
Colour name
Stone Oak
Material front
Chipboard
Surface of front
matt
Material body
Chipboard
Surface of body
matt
Other material

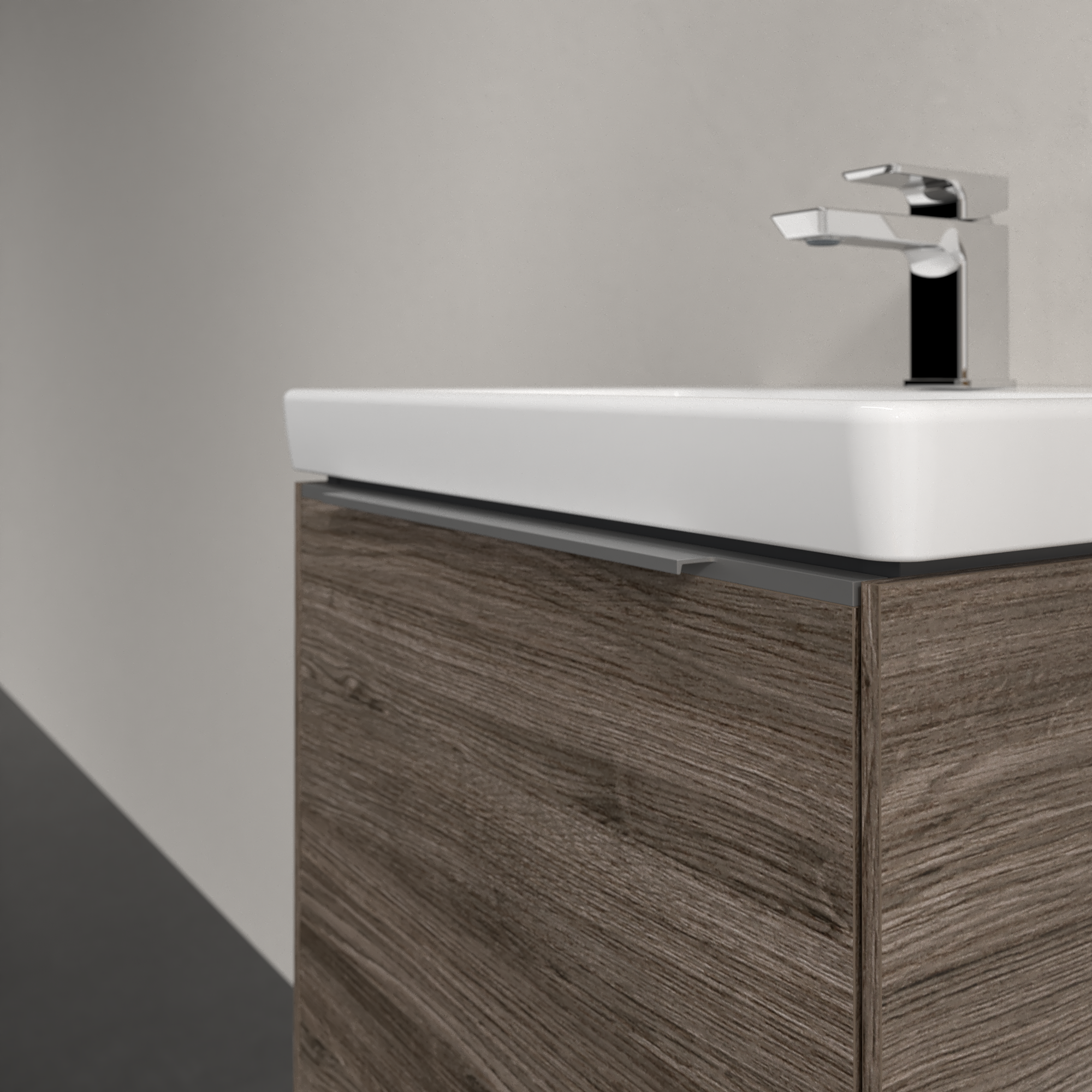

Handle: aluminium
Other surfaces
Handle: glossy
Operating mode
Mains-operated
Energy detection
This light contains replaceable LED lamps. The lamps in the light can be replaced.
Lighting
2x LED
Power of lamp
1 x LED / 3,24 W, 1 x LED / 4,8 W
Light colour (designation & colour temperature)
4000 K (neutral white)
Lighting control
when opening the drawer, with sensor dimmer, dimmable
Degree of protection
IP 44
Type of handles
Handle
Lightingvariants

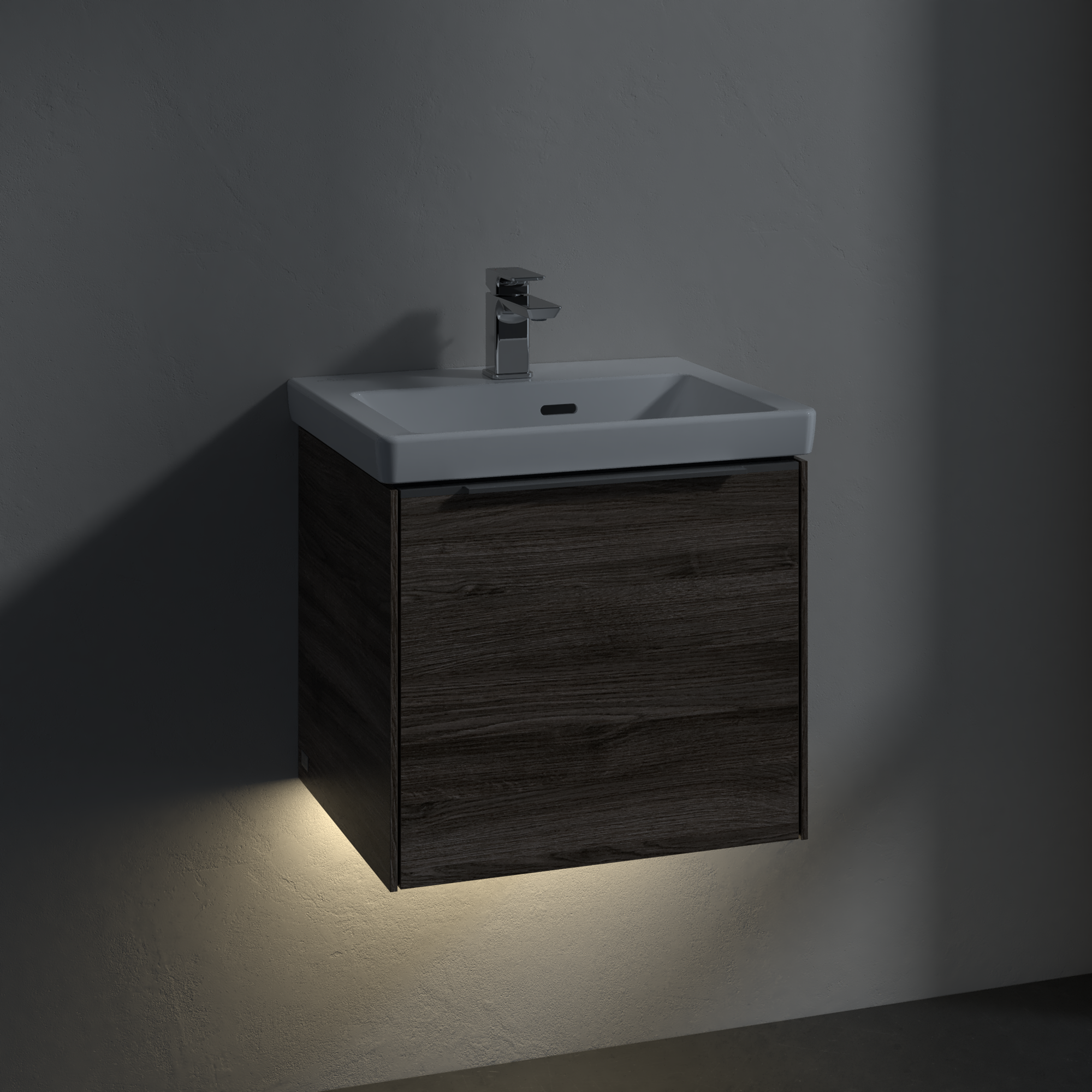

with LED floor lighting with LED pull-out lighting
Article number:

C580L0RK

availability:
    Subway 3.0

    Vanity unit

    Technical information
    back

    Technical information

    Article title

    Subway 3.0 Vanity unit, with lighting, 1 pull-out compartment, 473x429x392mm, Body: Stone Oak, Front: Stone Oak

    Article number

    C580L0RK

    Assembly / Assembly type

    wall-mounted

    Type of opening

    1 pull-out compartment

    Equipment

    1 x pull-out compartment with non-slip mat

    1 x accessory dish (small)

    Scope of delivery

    1 x vanity unit

    1 x fastening set

    Position of washbasin

    washbasin on the middle

    Depth in mm

    392

    Width in mm

    473

    Height in mm

    429

    Depth with handle mm

    408

    Depth without handle mm

    392

    Collection

    Subway 3.0

    Weight in kg

    16,11

    express delivery

    No

    Suitable for

    selected handwashbasins

    Function

    • with automatic lowering mechanism (SoftClosing)

    • with lighting

    Colour name

    Stone Oak

    Material front

    Chipboard

    Surface of front

    matt

    Material body

    Chipboard

    Surface of body

    matt

    Other material

    Handle: aluminium

    Other surfaces

    Handle: glossy

    Operating mode

    Mains-operated

    Energy detection

    This light contains replaceable LED lamps.

    The lamps in the light can be replaced.

    Lighting

    2x LED

    Power of lamp

    1 x LED / 3,24 W, 1 x LED / 4,8 W

    Light colour (designation & colour temperature)

    4000 K (neutral white)

    Lighting control

    when opening the drawer, with sensor dimmer, dimmable

    Degree of protection

    IP 44

    Type of handles

    Handle

    EAN number

    4062373842898

    Model number

    C580L0

    Lightingvariants

    with LED floor lighting

    with LED pull-out lighting

    Suitable products
    back

    Suitable products

    Villeroy & Boch Subway 3.0 Handwashbasin, 500x400x145mm, with overflow, White Alpin
    Collection Subway 3.0
    Product designation Handwashbasin
    Article number 4370FF01
    Dimension 500 x 400 x 145 mm
    to product detail
    Villeroy & Boch Subway 3.0 Handwashbasin, 500x400x145mm, without overflow, White Alpin
    Collection Subway 3.0
    Product designation Handwashbasin
    Article number 4370FG01
    Dimension 500 x 400 x 145 mm
    to product detail
    downloads
    back

    Installation & assembly

    Assembly instructions

    VB-Subway-3-0-C580L0-II-v00-60516-en.pdf
    Technical drawing

    VB-Subway-3-0-C580L0-2D01-v00-58041.pdf

    Planning information

    2-D data

    VB-Subway-3-0-C580L0-2D01-v00-58041.eps
    3-D data

    VB-Subway-3-0-C580L0-3D01-v00-58042.dwg
    3-D data

    VB-Subway-3-0-C580L0-3D01-v00-58042.stp
    BIM data

    Item documentation

    Spare parts list

    VB-Subway-3-0-C580L0-SPS-v00-58043-en.pdf

    Use & care

    Care instructions

    VB-Subway-3-0-C580L0-CI-v00-67449-en.pdf
