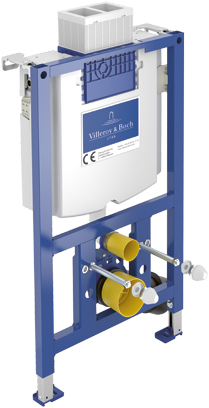

ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x985x155mm

SIZE AND SHAPE :
Width in mm
525
Length in mm
155
Height in mm
985
COLOUR AND SURFACE :
PROPERTIES :
Assembly / Assembly type
Dry-wall construction
Assembly instructions
for covering with plasterboard installation on a solid brick wall, in dry-wall constructions etc. adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm depth adjustment front edge of element: 135-205 mm (when actuated from above 155-205 mm)
Suitable for
for wall-mounted WC
Material
Steel
Technical information
Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l Pre-set flushing volume 6 / 3 l Range for large flushing volume 4.5 - 7.5 l Range for small flushing volume 3 - 4 l self-locking feet with adjustable base plates suitable for installation in U-profiles UW50 and UW 75
Article number:

92093100

availability:
    ViConnect installation systems

    Toilet installation system

    Technical information
    back

    Technical information

    Article title

    ViConnect installation systems Toilet installation system, for Dry-wall construction, 525x985x155mm

    Article number

    92093100

    Assembly / Assembly type

    Dry-wall construction

    Assembly instructions

    for covering with plasterboard

    installation on a solid brick wall, in dry-wall constructions etc.

    adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm

    depth adjustment front edge of element: 135-205 mm (when actuated from above 155-205 mm)

    Scope of delivery

    1 x installation system

    1 x cistern

    1 x installation kit

    Ordering information

    Please order flush plate separately.

    Length in mm

    155

    Width in mm

    525

    Height in mm

    985

    Collection

    ViConnect installation systems

    Weight in kg

    12,70

    Suitable for

    for wall-mounted WC

    Material

    Steel

    Technical information

    Bulkhead - easy adjustment of the large flushing volume from 6 to 4.5 l

    Pre-set flushing volume 6 / 3 l

    Range for large flushing volume 4.5 - 7.5 l

    Range for small flushing volume 3 - 4 l

    self-locking feet with adjustable base plates

    suitable for installation in U-profiles UW50 and UW 75

    EAN number

    4062373838082

    Model number

    920931

    Suitable products
    back

    Suitable products

    Villeroy & Boch ViConnect installation systems 300G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922160RE
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, Chrome
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92218061
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92216168
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 300S Toilet flush plate, No, Dual flush, Black Matt
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922169AN
    Dimension 253 x 145 x 15 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200G Toilet flush plate, No, Dual flush, Glass Glossy White
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 922400RE
    Dimension 269 x 161 x 13 mm
    to product detail

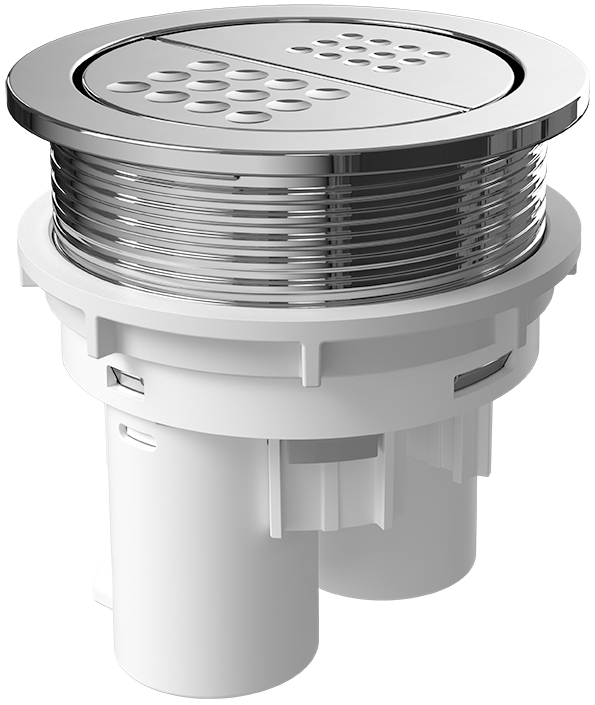

    Villeroy & Boch ViConnect installation systems Pneumatic flushing, No, Dual flush, Chrome
    Collection ViConnect installation systems
    Product designation Pneumatic flushing
    Article number 92215061
    Dimension 181 x 249 x 68,5 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 100S Toilet flush plate, No, Dual flush, Chrome
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92248561
    Dimension 205 x 145 x 22 mm
    to product detail
    Villeroy & Boch ViConnect installation systems 200S Toilet flush plate, No, Dual flush, Chrome
    Collection ViConnect installation systems
    Product designation Toilet flush plate
    Article number 92249061
    Dimension 253 x 145 x 10 mm
    to product detail
    Show more
    Spareparts
    back

    Spareparts

    Villeroy & Boch Spare parts ViConnect Seal for outlet valve, 64x64mm
    Product designation Seal for outlet valve
    Article number 92210800
    to product detail
    Villeroy & Boch Spare parts ViConnect Fastening set, 158x246mm
    Product designation Fastening set
    Article number 92211100
    to product detail
    Villeroy & Boch Spare parts ViConnect Seal for flush pipe bend, 65x70mm
    Product designation Seal for flush pipe bend
    Article number 92236100
    to product detail
    Villeroy & Boch Spare parts ViConnect Set of washers, 61x106mm
    Product designation Set of washers
    Article number 92248900
    to product detail
    Villeroy & Boch Spare parts ViConnect Construction protection for concealed cistern, 118x177.5mm
    Product designation Construction protection for concealed cistern
    Article number 92249400
    to product detail
    Villeroy & Boch Spare parts ViConnect Cable box for connecting to the outlet valve and flush plate, 31x382mm
    Product designation Cable box for connecting to the outlet valve and flush plate
    Article number 92249500
    to product detail
    Villeroy & Boch Spare parts ViConnect Fastening set, 114x191mm
    Product designation Fastening set
    Article number 92249600
    to product detail
    Villeroy & Boch Spare parts ViConnect Connection set DN90, 199x389mm
    Product designation Connection set
    Article number 92249700
    to product detail
    Villeroy & Boch Spare parts ViConnect Clip for toilet installation system, 185x284mm
    Product designation Clip for toilet installation system
    Article number 92249800
    to product detail
    Villeroy & Boch Spare parts ViConnect Outlet valve, 261.5x403mm
    Product designation Outlet valve
    Article number 8L073400
    to product detail
    Villeroy & Boch Spare parts ViConnect Reducing sleeve DN90/DN100, 116x119mm
    Product designation Reducing sleeve
    Article number 92201100
    to product detail
    Villeroy & Boch Spare parts ViConnect Outlet valve with flow restrictor, 80x313mm
    Product designation Outlet valve with flow restrictor
    Article number 92173400
    to product detail
    Villeroy & Boch Spare parts ViConnect Toilet U-bend 90° DN90, 90x300mm
    Product designation Toilet U-bend
    Article number 92173500
    to product detail
    Villeroy & Boch Spare parts ViConnect System feet, 77.5x117mm
    Product designation System feet
    Article number 92173600
    to product detail
    Villeroy & Boch Spare parts ViConnect Clip for tank, 20x40mm
    Product designation Clip for tank
    Article number 92234500
    to product detail
    Villeroy & Boch Spare parts ViConnect Positioning device, 107x117mm
    Product designation Positioning device
    Article number 92234600
    to product detail
    Villeroy & Boch Spare parts ViConnect Connecting hoses DN 8 x 300mm ROW, 29x294.5mm
    Product designation Connecting hoses
    Article number 92234700
    to product detail
    Villeroy & Boch Spare parts ViConnect Angle valve, 48x73mm
    Product designation Angle valve
    Article number 92233800
    to product detail

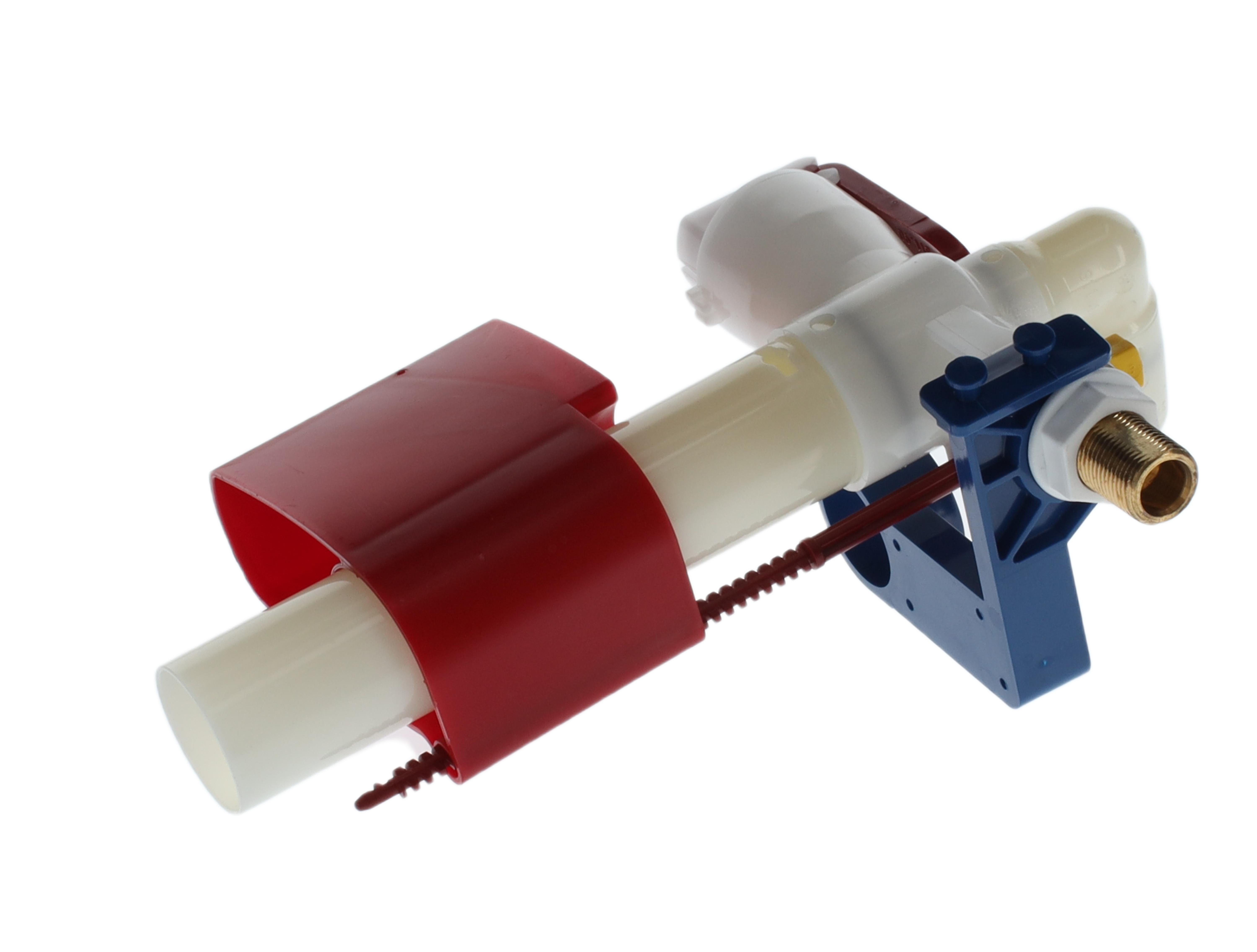

    Villeroy & Boch Spare parts ViConnect AirGap filling valve WRAS-approved UK, 140x210mm
    Product designation AirGap filling valve WRAS-approved
    Article number 8L387000
    to product detail

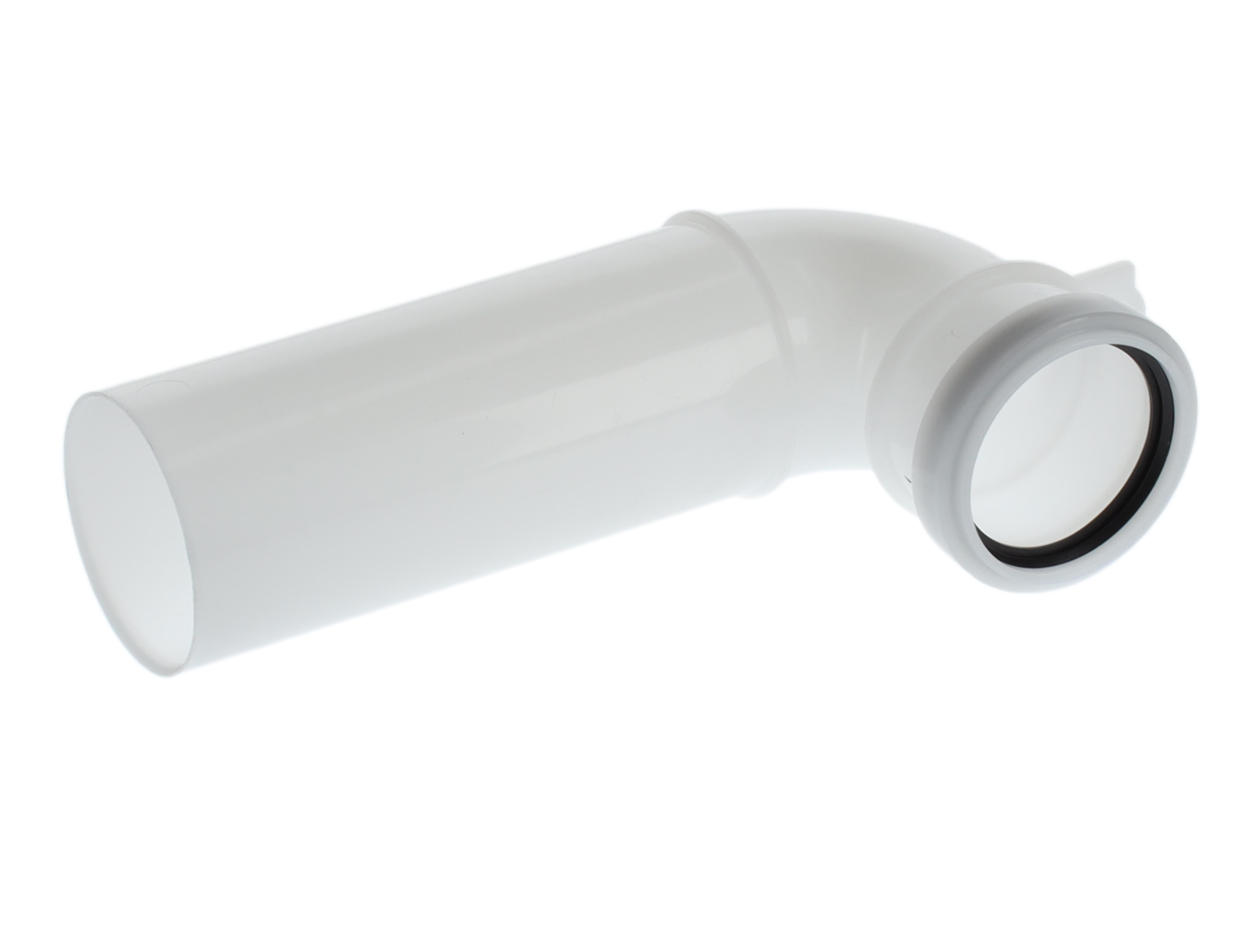

    Villeroy & Boch Spare parts ViConnect Short flush pipe bend Cistern, 84x208mm
